860 Deluxbridge Skylounge Motoryacht

X Class

High demand for this skylounge model has greatly increased due to the abundant advantages of a temperature controlled upper helm station, and protection from the elements during blue water and long distance cruising. Outer Reef Yachts’ 860 Deluxbridge layout features 4 spacious owner & guest cabins, 2 crew cabins aft with heads, lounge and galley. Because the upper helm station eliminates the need for main deck helm station, the galley space below is greatly increased, creating an expansive country kitchen for cooking, dining and entertainment. The spacious living accommodations echo the feel of yachts 100 feet plus, and the ample skylounge area provides additional, private and protected dining, entertainment, and office area – all welcomed space options that are valuable during extended journeys. Upgrades include 1140hp CAT C-18's, 55hp hydraulic bow and stern thrusters, Trac Zero Speed stabilizers, twin 38KW Northern Lights generators, and a very extensive electronics & AV system. As with every Outer Reef Yacht within the collection, the Outer Reef 860 Deluxbridge defines new standards with her cutting-edge technology, robust build, and contemporary appeal.

Cruising Speed: 9 - 20 knots
Max Speed: 14 – 22.5 knots

LOA Icon

LOA 86’ 4” (26.30 m)

Beam Icon

Beam 21’ 0” (6.4 m)

Draft Icon

Draft 5’ 6” (1.67 m)

Contact us
#data29# Image

Key Specifications

Full Specifications

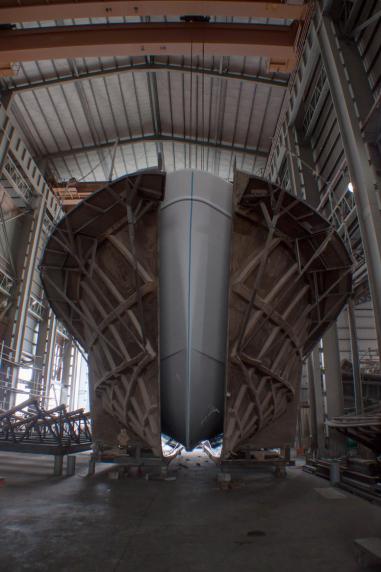

HULL CONSTRUCTION

  • Hand laid-up FRP hull with PVC core sandwich construction above water line
  • Solid laminate, commensurate for hull size, made in female mold
  • Vinylester barrier lamination for osmosis protection
  • Simulated planked hull
  • Full length longitudinal engine stringers and athwartship stringers
  • Gel coated finish above waterline
  • Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
  • Integrally molded rub rails with stainless steel capping
  • Full length keel extends below running gear
  • Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems
  • CE-approved stainless steel portlights
  • Boat construction from only 3 major molds
  • Divinycell PVC cored construction with cook gelcoat
  • All deck and hull area hardware attachments are finished with solid lamination – no coring
  • Bilge area finished smooth and coated with bright white epoxy paint
  • Windows with 3/8" tempered safety glass in salon and ½' tempered safety glass in pilothouse
  • Quiet Roll™ integrated spray rail system
  • Vessel Vanguard marine maintenance system

MECHANICAL

  • ABT Trac 38hp hydraulic bow and stern thursters
  • ABT Trac 250 stabilizers with 7.5 sq. ft. fins
  • Northern Lights uplift water separator exhaust
  • Underwater exhaust system with bypass and FRP mufflers
  • Copper bonding system to all underwater fittings with zinc anodes
  • Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
  • Rigid fresh water pipes and color coded copper fuel lines
  • Stainless steel struts with bearings
  • Headhunter 24v DC and Mach-5 115v AC fresh water pumps with accumulator tanks
  • Two (2) 24v DC automatic shower sump systems with external pump
  • Accessible wiring raceway throughout

TANKAGE

  • One (1) holding tank with a max capacity of 250 US gallons (946 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
  • One (1) stainless steel water tank with a max capacity of 500 US gallons (1893 lts)
  • Three (3) aluminum fuel tanks with a total capacity of 3,000 US gallons (11356 lts)
  • Lexan sight gauges on fuel tanks
  • Inspection and cleaning ports on all tanks
  • Fuel fills built into house sides in FRP cabinet

ENGINE ROOM

  • Acoustically insulated stand-up engine room lined with sound absorbing material
  • Edura beige coin dot flooring
  • Twin John Deere 6135 (750 hp) diesel engines with ZF transmissions
  • Fiberglass drip pans under engines
  • Northern Lights generator – one (1) 30kw (60hz) w/ sound shields (one (1) 24kw (50hz) for AU-EU)
  • MarineAir chilled water air conditioning system
  • Two (2) sea chests
  • Ball-valve bronze seacocks on all through-hulls below waterline located in sea chests
  • Oil change pump for engines and generators
  • Two (2) 100amp isolation transformers
  • 5 kw inverter/charger (24v DC to 115v AC 60Hz) (5 kw inverter/charger 24v DC to 220v AC 50Hz for AEU)
  • Two (2) Racor 75/1000 max dual fuel filters with gauges for main engines
  • Two (2) Racor 75/1000 max single fuel filters for generators
  • Fuel polishing system
  • Fuel management system
  • Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
  • Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
  • Fire system and bilge high-water alarm system with warning panel
  • Fresh water hose bibb
  • AGM (Absorbed Glass Matt) Batteries in FRP boxes:
    • Two (2) engine banks with two (2) 8D batteries for each bank
    • One (1) house bank with eight (8) 8D batteries with a total 1020 amp-hours (24VDC)
    • Two (2) generator banks with one (1) battery each
  • One (1) 24v and one (1) 12v battery charger
  • Two (2) battery isolators
  • Two (2) 20 gallon water heaters with heat exchanger off one main engine
  • Four (4) 24v DC blowers
  • Eight (8) LED overhead Lights –110v AC/24v DC (220v AC/ 24v DC for AU-EU) with two (2) two-way switches
  • Two (2) 110v AC GFI outlets (220v 50hz for AU-EU) with water proof covers
  • 316 Stainless steel safety rails around engines
  • Work bench space
  • Two watertight bulkheads
  • Watertight aluminum engine room doors with sight windows

AFT DECK AREA

  • Aft deck with teak decking
  • Built-in swim platform with teak decking
  • Stainless steel removable swim ladder on swim platform
  • 2" 316 stainless steel removable safety rails on swim platform
  • Stairway built-in to port and starboard side from swim platform to aft deck with FRP gate doors
  • Aft deck FRP bench seating with storage beneath
  • Exterior furniture fabric for aft deck and Portuguese seats (deducted from décor allowance)
  • Fixed aft deck table – teak with stainless steel bases (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
  • FRP sliding door to salon with glass window top and bottom
  • FRP weather tight door on transom
  • Transom shower in recessed box with hot and cold water supply
  • Fresh water wash down outlet
  • Shorepower inlets for 110v/220v 60hz (220v 50hz for AU-EU)
  • Two (2) Glendinning 100 amp cable masters with 75' of cable on transom
  • Glendinning electronic engine controls via hand held remote
  • Six (6) LED courtesy lights with two (2) two-way switches
  • Five (5) LED overhead lights with one (1) standard switch inside the salon
  • Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
  • 316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
  • Deck scuppers piped out through transom at boot stripe
  • 316 Stainless steel handrail to and from aft deck

SIDE DECKS

  • Molded with teak decking
  • Stainless steel handrails alongside decks
  • Weather-tight doors opening into pilothouse port and starboard
  • House side fixed windows with tinted tempered glass
  • Two (2) sets of 316 stainless steel spring-line chocks per side
  • Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
  • Fuel fill fittings for tanks recessed into house side
  • 316 stainless steel overhead safety rails
  • Four (4) LED courtesy lights along walk ways
  • Eight (8) LED overhead lights with two (2) standard switches

PORTUGUESE BRIDGE

  • Portuguese bridge molded with teak decking
  • Locker doors in aft face of Portuguese bridge
  • 316 Stainless steel handrail on top of Portuguese bridge
  • Hinged door through Portuguese bridge to foredeck
  • ½" Clear tempered glass in forward facing windshields
  • Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
  • Three (3) LED courtesy lights with one (1) standard switch

FORE DECK

  • Foredeck with white non-skid surface
  • 316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
  • 316 Stainless steel rail on bulwarks increasing in width going forward
  • 316 Stainless steel stanchions to support handrail
  • Deck lockers forward either side of anchor platform finished in white epoxy paint
  • 316 Stainless steel anchor chute/roller at bow
  • 105 lb plow-type anchor with 350' long 1/2" high test chain
  • Maxwell VWC-4000 Hydraulic vertical windlass with foot switches and remote controls for DeluxBridge™
  • Salt water wash down pump with outlet
  • Fresh water wash down with outlet
  • Salt water and fresh water 316 SS faucets inside foredeck lockers
  • Three (3) LED courtesy lights
  • One (1) 110v AC GFI outlet (220v 50hz for AU-EU) in inside settee
  • Deck drains plumbed to boot-stripe to prevent black streaks

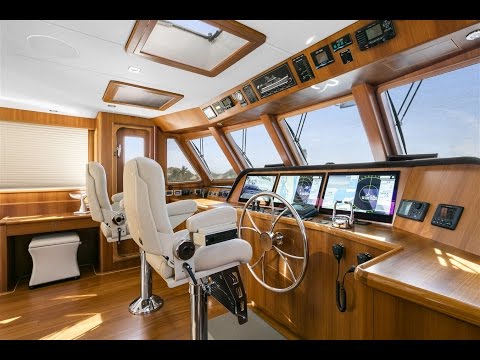

DELUXBRIDGE COMMAND CENTER

  • Exclusive Deluxbridge™ full beam-width command center
  • L-shaped settee on raised platform on port side
  • Desk, bar or 2nd settee and table on starboard side
  • Teak table with single 316 stainless steel pedestal (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
  • Ten (10) LED overhead lights with two (2) two-way switches and two (2) standard switches
  • Two (2) LED red night lights with one (1) dimmer switch
  • One (1) chart light
  • LED red and white bridge lights
  • Four (4) 110v AC outlets (220v AC GFI for AU-EU)
  • One (1) USB outlet
  • One (1) Stidd helm seat, model 500-N, naugahyde with matching powder coated base
  • Custom Outer Reef wood steering wheel at helm
  • Hypro hydraulic power assist steering system
  • Engine display screens
  • Overhead electronics console
  • Wiring routes to facilitate equipment installation
  • Main electrical distribution panels with gauges and circuit breakers for AC and DC
  • Alarm and advisory panel
  • Transom doors on AC, DC and advisory panels
  • Glendinning electronic engine controls with back up gear and throttle with synchronizer
  • 5" magnetic compass
  • Three (3) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
  • ½" Clear tempered glass in forward facing windshields
  • Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
  • Vinyl headliner
  • Two (2) roof hatches with screens
  • Control for bow thruster
  • Air conditioning control panel
  • Generator control panel
  • Two (2) 24v to 12v DC-DC converters with 12v battery back-up system
  • ACR 300 24v DC searchlight with dual station controls
  • Kahlenberg D-OA dual trumpet air horn with compressor
  • Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
  • Windlass up/down switch and control circuit breaker
  • Bilge pump control on advisory panel
  • Equipment running advisory panel
  • Teak stairway down to the country kitchen
  • Weathtertight door opening to boat deck
  • Teak and holly sole

BOAT DECK

  • Deck with white non-skid surface
  • 316 Stainless steel hand rails
  • Deck box on port side
  • Cabinets behind settees for wash basin, refrigerator, icemaker and/or BBQ grill
  • 1200KGS/2600lb aluminum painted davit with 4-way hydraulic control with rotating base, luff, lift, pendant switch and a 13.7' telescoping arm
  • Swing gates forward of optional dinghy with 1 ½" stainless steel pipe

INTERIOR ALLOWANCE

  • Interior décor allowance $85,000. This is a "Use or Lose" allowance for the purchase of interior and exterior soft goods (cushion fabrics, bed covers, shams, pillows, etc). This allowance is not transferable to any designer other than Outer Reef's designated in house designer
  • Three (3) Fireboy CO detectors

SALON

  • Sliding door entrance from aft deck
  • Fixed windows in house sides with medium 3/8" tinted tempered safety glass
  • Teak valance over windows with LED rope lighting
  • Twelve (12) LED overhead lights with two (2) two-way dimmer switches and one (1) standard dimmer switch
  • LED rope lighting at valance with one (1) standard switch
  • Access hatches to allow for engine removal
  • Vinyl headliner
  • One (1) free standing fixed teak coffee table (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
  • Entertainment center cabinet starboard with additional storage cabinets
  • Two (2) end tables (built in)
  • Loose-laid furniture (deducted from décor allowance)
  • Air conditioning control panel
  • Teak cabinetry and lockers
  • Six (6) 110v AC outlets (220v AC for AU-EU)
  • One (1) TV outlet
  • Carpeted floor (deducted from décor allowance)
  • Teak wall paneling with satin finish
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers

GALLEY / COUNTRY KITCHEN

  • Large country-kitchen with center island
  • Settee forward with table (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
  • Granite or corian countertops with stainless steel under mount sinks
  • Drawer for soap and sponges in front of the sink
  • Chrome Grohe Europlus II faucet with pull out spray
  • Fourteen (14) LED overhead lights with two (2) two-way switches and two (2) standard switches
  • Teak cabinets and cabinet doors with chrome push-button locks
  • Teak wall paneling with satin finish
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Three (3) 110v AC GFI outlets (220v AC GF for AU-EU)
  • Two (2) 110v AC outlets (220v AC for AU-EU)
  • One (1) TV outlet
  • Teak and holly sole
  • Appliances – GE Stainless Monogram Package (US Model)
    • 36" counter-depth side x side refrigerator
    • 18" dishwasher with stainless interior
    • 30" built-in microwave
    • 30" electric cooktop and oven
    • 15" trash compactor
    • Garbage disposal with switch
  • Appliances (AU-EU Model)
    • 567L side x side refrigerator
    • 600mm fully integrated dishwasher
    • 600mm touch control ceran cooktop
    • 600mm 7-function oven
    • 600mm stainless steel microwave
    • 380mm stainless steel automatic trash compactor
    • Stainless steel garbage disposal with switch

DAY HEAD

  • Granite countertop with white Kohler under-mount sink
  • Chrome Grohe center-set single lever faucet at sink
  • Teak framed mirror
  • Storage cabinet under sink
  • Wallcovering
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
  • Ventilator blower
  • One (1) 110v AC GFI outlet (220v AC GF for AU-EU)
  • Two (2) LED overhead lights with one (1) standard switch
  • Teak and holly sole

LOWER HALLWAY

  • Curved teak stairway from pilothouse with five (5) LED courtesy lights and two (2) two-way switches
  • Five (5) LED overhead lights with two (2) two-way switches and one (1) standard switch
  • Combination of wall covering and teak wall paneling with satin finish in stairwell and hallway
  • Cabinet for storage or optional stackable washer and dryer
  • Storage under first two steps of the stairwell below
  • Access doors to staterooms
  • Carpeted floor (deducted from décor allowance)

FULL BEAM MIDSHIP MASTER STATEROOM

  • King size berth
  • 7" layered foam mattress
  • Drawer storage under the berth
  • LED rope lighting under the bed and at valance with one (1) standard switch and two (2) two-way dimmer switches
  • Two (2) walk-in closets
  • Six (6) built in cabinets
  • Automatic interior lights in lockers
  • Two (2) built-in vanity desks on each side of the stateroom with drawers
  • Drawers with center guides and stops
  • Door stops and holders
  • Teak framed door
  • Teak wall paneling with satin finish
  • Cantalupi chrome reading lights
  • Four (4) CE-approved portlights with removable insect screen
  • Shoji screens
  • Five (5) 110v AC outlets (220v AC for AU-EU)
  • One (1) TV outlet
  • Nine (9) LED overhead lights with three (3) three-way dimmer switches, two (2) two-way dimmer switches and one (1) standard switch
  • Air conditioning control panel
  • Nightstand teak tables with two drawers each
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Carpeted floor (deducted from décor allowance)
  • Dyson V8 Absolute vacuum cleaner

MASTER HEAD (ENSUITE)

  • Ensuite head with shower
  • Clear tempered glass shower door with towel bar
  • Molded white FRP shower
  • Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
  • Ventilator fan in shower
  • Granite countertop with two (2) white Kohler under-mount sinks
  • Chrome Grohe center-set single lever faucet at sinks
  • Teak framed mirror with medicine chest
  • Storage cabinet under sink
  • Wallcovering
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
  • 24v DC ventilator blower
  • Two (2) 110v AC GFI outlets (220v AC GFI for AU-EU)
  • Five (5) LED overhead lights with three (3) standard switches
  • Teak and holly sole
  • Separate compartmented toilet area with CE-approved portlight

VIP STATEROOM FORWARD

  • 316 Stainless steel CE-approved skylight
  • Shoji screens
  • Tapered queen-size berth
  • 7" layered foam mattress
  • Teak storage drawers under the berth
  • Two steps on each side of the berth for easy access
  • LED rope lighting under the bed and at valance with one (1) standard switch
  • Two (2) hanging lockers with teak-faced doors
  • Automatic interior lights in lockers
  • Teak wall paneling with satin finish
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Teak framed door
  • Two (2) 110v AC outlets (220v AC for AU-EU)
  • Five (5) LED overhead lights with two (2) two-way dimmer switches and one (1) standard dimmer switch
  • Two (2) Cantalupi chrome reading lights
  • Air conditioning control panel
  • Carpeted floor (deducted from décor allowance)

VIP HEAD (ENSUITE)

  • Ensuite head with shower
  • Clear glass shower door with towel bar
  • Molded white FRP shower
  • Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
  • 24v DC ventilator blower
  • Granite countertop with white Kohler under-mount sink
  • Chrome Grohe center-set single lever faucet at sink
  • Teak framed mirror with medicine chest
  • Storage cabinet under sink
  • Wallcovering
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
  • One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
  • Three (3) LED overhead lights with two (2) standard switches
  • Teak and holly sole

GUEST STATEROOM PORT

  • Two (2) CE-approved portlights with removable insect screens
  • Shoji screens
  • Two (2) twin berths with storage drawers underneath
  • 7" layered foam mattresses
  • One (1) built-in nightstand
  • LED rope lighting at valance with one (1) standard switch
  • One (1) hanging locker with teak-faced doors
  • Automatic interior light in locker
  • Teak wall paneling with satin finish
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Door stops and holders
  • Teak framed door
  • Two (2) 110v AC outlets (220v AC for AU-EU)
  • One (1) TV outlet
  • Two (2) LED overhead lights with one (1) two-way switch and one (1) two-way dimmer switch
  • Air conditioning control panel
  • Two (2) Cantalupi chrome reading lights
  • Carpeted floor (deducted from décor allowance)

PORT HEAD (ENSUITE)

  • Ensuite head with shower
  • Clear glass shower door with towel bar
  • Molded white FRP shower
  • Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
  • 24v DC ventilator blower
  • Granite countertop with white Kohler under-mount sink
  • Chrome Grohe center-set single lever faucet at sink
  • Teak framed mirror with medicine chest
  • Storage cabinet under sink
  • Wallcovering
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
  • One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
  • Three (3) LED overhead lights with two (2) standard switches
  • Teak and holly sole

CREW QUARTERS AFT

  • Two (2) CE-approved portlights with removable insect screens
  • Two (2) transverse berths, one (1) twin and one (1) queen, with storage drawers underneath
  • 7" layered foam mattresses
  • One (1) hanging locker with teak-faced doors
  • Automatic interior light in locker
  • Teak wall paneling with satin finish
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Door stops and holders
  • Teak framed door
  • LED rope lighting under bed with one (1) standard switch
  • Two (2) 110v AC outlets (220v AC for AU-EU)
  • One (1) TV outlet
  • Six (6) LED overhead lights with two (2) two-way switches and two (2) standard switches
  • Air conditioning control panel
  • Carpeted floor (deducted from décor allowance)
  • Storage space behind galley with storage cabinets and room for optional washer and dryer
  • Steps leading to transom

CREW GALLEY

  • One (1) CE-approved portlight with removable insect screens
  • L-shaped settee on raised platform
  • Teak table with single 316 stainless steel pedestal (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
  • Granite or corian countertops with stainless steel under mount sinks
  • Drawer for soap and sponges in front of the sink
  • Chrome Grohe Europlus II faucet with pull out spray
  • Five (5) LED overhead lights with one (1) standard switches
  • Teak cabinets and cabinet doors with chrome push-button locks
  • Teak wall paneling with satin finish
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • One (1) 110v AC GFI outlet (220v AC GF for AU-EU)
  • Two (2) 110v AC outlets (220v AC for AU-EU)
  • One (1) TV outlet
  • Teak and holly sole
  • Appliances
  • a) Undercounter refrigerator
  • b) 12" electric cooktop
  • c) 30" built-in convection microwave

CREW HEAD

  • Clear glass shower door with towel bar
  • Molded white FRP shower
  • One (1) CE-approved portlight with removable insect screen
  • Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
  • 24v DC ventilator blower
  • Granite countertop with white Kohler under-mount sink
  • Chrome Grohe center-set single lever faucet at sink
  • Teak framed mirror with medicine chest
  • Storage cabinet under sink
  • Wallcovering
  • Drawers with full extension guides and push button latches
  • Teak cabin doors and cabinet doors
  • Chrome door handles on all interior lockers
  • Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
  • One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
  • Four (4) LED overhead lights with two (2) standard switches and two (2) two-way switches
  • Teak and holly sole

CRUISING/SAFETY PACKAGE

  • Six (6) 15" x 41" Polyform F-series black fenders
  • Twelve (12) 15' x ½" black fender lines
  • Four (4) 3/4" x 35' double-braid nylon black dock lines
  • Two (2) 3/4" x 50' double-braid nylon black dock lines
  • Twelve (12) Safeguard type I orange life vests for adults over 90 lbs
  • Six (6) Kiddie Mariner 2 ¾ lb M10 fire extinguishers
  • One (1) Bernard oil discharge placard (US Model Only)
  • One (1) Bernard waste discharge placard (US Model Only)
  • Two (2) Jim-Buoy 24" white ring buoys
  • Four (4) Perko chrome/brass 4-ring buoy holders
  • One (1) Orion alert/locate flare kit
  • One (1) Orion circumnavigator first aid kit
  • One (1) Orion safety blaster horn

STANDARD MARETRON PACKAGE

  • Engine - generator integration onto the Garmin screens
  • AC/DC power monitoring
  • Alarm
  • Tank level monitoring
  • Wi-Fi interface
  • Engine exhaust, transmission and SeaTorque shaft temperature monitoring
  • 8” Maretron screen in the crew area (where applicable)
  • Navigation lights, bilge pump monitors
  • All monitors projected onto the Garmin screens
  • Further information available upon request

Contact Us

860 Deluxbridge Skylounge Motoryacht Videos

860 Deluxbridge Skylounge Motoryacht News

Outer Reef 860 Deluxbridge Motoryacht Spotlight - INSIGNIA

Outer Reef 860 Deluxbridge Motoryacht Spotlight - INSIGNIA

December 20, 2023

Meet Kevin Blake, a seasoned Outer Reef Sales Expert based in the Pacific Northwest. He, in collaboration with YachtLens, presents the remarkable 860 Outer Reef Deluxbrid...

Read Article
The Epitome of Cruising Luxury: The Outer Reef 860 Deluxbridge Motoryacht

The Epitome of Cruising Luxury: The Outer Reef 860 Deluxbridge Motoryacht

December 06, 2023

Immerse yourself in the epitome of cruising luxury with the Outer Reef 860 Deluxbridge Motoryacht! Your ultimate escape awaits, as this skylounge model is in high demand ...

Read Article
EAGLE Turns Heads at Ocean Reef’s Vintage Weekend

EAGLE Turns Heads at Ocean Reef’s Vintage Weekend

December 05, 2023

What a weekend at Ocean Reef's Vintage event…an annual celebration of maritime excellence and luxury, set against the backdrop of coastal charm. EAGLE, an Outer Re...

Read Article
New Video! BOATTEST.com’s Outer Reef 860 Deluxbridge Motoryacht Features Video

New Video! BOATTEST.com’s Outer Reef 860 Deluxbridge Motoryacht Features Video

May 20, 2022

In this new video, BOATTEST.COM takes a deep dive into the Outer Reef 860 Deluxbridge™ Motoryacht, a model in high demand due to the abundant advantages of a temper...

Read Article
Video Walkthrough - Outer Reef 860 Deluxbridge Motoryacht

Video Walkthrough - Outer Reef 860 Deluxbridge Motoryacht

February 21, 2022

New model video! High demand for the Outer Reef 860 Deluxbridge (skylounge) model has greatly increased due to the abundant advantages of a temperature-controlled upper h...

Read Article
New Video! 2018 Outer Reef DBMY RUFF SEAS

New Video! 2018 Outer Reef DBMY RUFF SEAS

September 01, 2021

Experience "RUFF SEAS", a remarkable 2018 Outer Reef Classic 860 Deluxbridge Motoryacht for sale, through the eyes of sales expert Joel Davidson. NEW VIDEO LISTING...

Read Article
Unique Owner Photo of Outer Reef 860 Skylounge INSIGNIA

Unique Owner Photo of Outer Reef 860 Skylounge INSIGNIA

May 07, 2021

As we continue sharing Outer Reef owners’ photos and stories, we spotlight a photo provided by the owner of the 2017 860 Deluxbridge™ Motoryacht, "INSIGNIA". ...

Read Article
New Listing! Impeccable 860 Deluxbridge Skylounge RUFF SEAS for Sale

New Listing! Impeccable 860 Deluxbridge Skylounge RUFF SEAS for Sale

October 08, 2019

Built for an experienced 4-time Outer Reef yacht owner, "RUFF SEAS" boasts over a million dollars in sophisticated electronics, décor and creature comfort upg...

Read Article
Owners of 2018 Outer Reef 860 Deluxbridge Enjoying Life on the Water

Owners of 2018 Outer Reef 860 Deluxbridge Enjoying Life on the Water

April 23, 2019

How would you use your Outer Reef Yacht? Shown here is an Outer Reef family taking full advantage of their Opacmare passerelle/water-sports platform. For more Opacmare in...

Read Article
Outer Reef Turns Heads at the Miami Yacht Show with Two Yachts on Display

Outer Reef Turns Heads at the Miami Yacht Show with Two Yachts on Display

February 18, 2019

This past week, Outer Reef Yachts enjoyed seeing prospects, owners and friends from around the globe while attending the 2019 Miami Yacht Show, which took place at the ne...

Read Article
Outer Reef Yachts Gears Up for the Miami Yacht Show

Outer Reef Yachts Gears Up for the Miami Yacht Show

February 11, 2019

With more than one boat show taking place in Miami, Florida the same week, we want to be sure you are up-to-date with Outer Reef’s location at the new Miami Yacht S...

Read Article
Stunning 2018 860 Skylounge RUFF SEAS Photo Show

Stunning 2018 860 Skylounge RUFF SEAS Photo Show

November 12, 2018

Photographed here is the show-stopping 2018 860 Skylounge "RUFF SEAS" docked in Vero Beach. Click here for video slideshow. Included in her special features are her perf...

Read Article
Outer Reef 86 DBMY RUFF SEAS Equipped with Opacmare Passerelle/Water-Sports Platform

Outer Reef 86 DBMY RUFF SEAS Equipped with Opacmare Passerelle/Water-Sports Platform

August 27, 2018

Opacmare, an Italian manufacturer of quality marine products - boat ladders, swim platforms and accessories – build products directly from raw materials with specif...

Read Article
New 860 DBMY Owners Closed On 4th Outer Reef Yacht

New 860 DBMY Owners Closed On 4th Outer Reef Yacht

July 20, 2018

Brand loyalty is a cherished concept in this day-in-age of limitless choices. This is why Outer Reef Yachts continues to greatly appreciate and be humbled by the increasi...

Read Article
Exquisite New 860 Deluxbridge Skylounge Offloads in Fort Lauderdale

Exquisite New 860 Deluxbridge Skylounge Offloads in Fort Lauderdale

June 14, 2018

Photographed here is a stunning new Outer Reef 860 Deluxbridge (Skylounge) Motoryacht offloading in Fort Lauderdale this past week. Despite the rainy weather, this new ya...

Read Article
Brand New 860 Deluxbridge MY Loading Photos

Brand New 860 Deluxbridge MY Loading Photos

May 02, 2018

To her new owners’ excitement, photographed here is their brand new Outer Reef 860 Deluxbridge Motoryacht being loaded for her journey to Fort Lauderdale, Florida. ...

Read Article
860 Outer Reef Deluxbridge HQ Sold

860 Outer Reef Deluxbridge HQ Sold

April 06, 2018

Congratulations to Joel Davidson and Mike Schlichtig at Outer Reef Yachts Fort Lauderdale for the sale of the 860 Deluxbridge (Skylounge) Motoryacht (26.11 meter) “...

Read Article
New Outer Reef 860 Deluxbridge Successfully Sea Trialed

New Outer Reef 860 Deluxbridge Successfully Sea Trialed

January 19, 2018

This spectacular 860 Deluxbridge Motoryacht stands proud after her successful sea trial; Sales Executive Joel Davidson and Outer Reef Captain Randy Ives visit the Ta...

Read Article
860 Deluxbridge Motoryacht Christening

860 Deluxbridge Motoryacht Christening

November 30, 2017

Outer Reef Yachts’ favorite reason for a celebration is welcoming new owners to the Outer Reef Yachts family. The stunning 860 Deluxbridge Skylounge Motoryacht...

Read Article
Photos of A New 860 Deluxbridge Motoryacht In Build

Photos of A New 860 Deluxbridge Motoryacht In Build

November 16, 2017

Outer Reef’s Sales Executive Joel Davidson and Captain Randy Ives are standing in front of a new 860 Deluxbridge Motoryacht built at our shipyard. This definit...

Read Article
2017 Fort Lauderdale Boat Show Move Out

2017 Fort Lauderdale Boat Show Move Out

November 15, 2017

On the heels of a successful Fort Lauderdale Boat Show and photoshoot, photos here show Outer Reef Yachts 860 Deluxbridge Motoryacht "HQ" moving up the New River behind 6...

Read Article
Outer Reef Christens 860 Motoryacht HQ at 2017 Fort Lauderdale Boat Show

Outer Reef Christens 860 Motoryacht HQ at 2017 Fort Lauderdale Boat Show

November 13, 2017

As the first Outer Reef Deluxbridge Skylounge model to be built specifically for cruising the Great Loop, 860 Deluxbridge Motoryacht "HQ" gave us all a reason to cel...

Read Article
Bespoke 860 Deluxbridge Skylounge Overcomes Bridge Clearances

Bespoke 860 Deluxbridge Skylounge Overcomes Bridge Clearances

September 25, 2017

Photographed here is the stunning 860 Deluxbridge Skylounge M/Y "HQ", which cruised the New York State Canal System, starting just north of Albany, New York and ending at...

Read Article
860 Deluxbridge Motoryacht in the Bahamas

860 Deluxbridge Motoryacht in the Bahamas

August 03, 2017

Outer Reef 860 Deluxbridge Motoryacht owner had a blast with his yacht in the Bahamas, and has the video footage to prove it! Check it out here. ...

Read Article
Northeast Travels of HQ

Northeast Travels of HQ

July 10, 2017

This stunning 860 Deluxbridge Skylounge Outer Reef is no satellite office; she is definitely The "HQ"!Check out our latest photos of her cruising in the Northeast, and se...

Read Article
HQ in New York City

HQ in New York City

June 21, 2017

Another stunning shot of 860 Outer Reef "HQ" in New York. Here she is in front of One World Trade Center.  For more information on the 860 Deluxbridge Motoryacht mo...

Read Article
Photos of the Birth of a New 860 Deluxbridge Motoryacht

Photos of the Birth of a New 860 Deluxbridge Motoryacht

March 10, 2017

Outer Reef Yachts is excited to share photos of this new 860 Deluxbridge coming out of the mold! This new yacht showcases unique, owner-inspired design features incl...

Read Article
Outer Reef Yachts To Attend 2017 Palm Beach International Boat Show

Outer Reef Yachts To Attend 2017 Palm Beach International Boat Show

March 02, 2017

Long-range expert motor yacht builder Outer Reef® Yachts is proud to announce plans to showcase three Outer Reef Yachts at the 2017 Palm Beach Boat Show, March 23rd t...

Read Article
Outer Reef Yachts Successfully Showcases Three Yachts at 2016 FLIBS

Outer Reef Yachts Successfully Showcases Three Yachts at 2016 FLIBS

November 08, 2016

On behalf of the Outer Reef Yachts team, thank you for an incredible 2016 Fort Lauderdale Boat Show. So many of our owners, clients, vendors, media partners, and friends ...

Read Article
Outer Reef Yachts To Attend 2016 Fort Lauderdale Boat Show

Outer Reef Yachts To Attend 2016 Fort Lauderdale Boat Show

November 01, 2016

Fort Lauderdale, Florida, the "Yachting Capital of the World" will host the 57th Fort Lauderdale International Boat Show on Nov 3-Nov 7, 2016. Outer Reef Yachts is proud ...

Read Article
FYBA Third Thursday Showcase Featuring Outer Reef’s 860 Deluxbridge Skylounge

FYBA Third Thursday Showcase Featuring Outer Reef’s 860 Deluxbridge Skylounge

August 22, 2016

This past Thursday afternoon, August 18th, the beautiful Outer Reef 860 Deluxbridge Skylounge participated in the Florida Yacht Brokers’ Association Third Thur...

Read Article
Outer Reef Yachts Attends the FYBA May 2016 Third Thursday

Outer Reef Yachts Attends the FYBA May 2016 Third Thursday

May 20, 2016

Fort Lauderdale’s Bahia Mar Marina was ‘the place to be’ Thursday afternoon, May 20th as the beautiful Outer Reef 860 Deluxbridge Skylounge participated...

Read Article
Outer Reef Yachts Successfully Attends the 2016 Palm Beach Boat Show

Outer Reef Yachts Successfully Attends the 2016 Palm Beach Boat Show

March 22, 2016

We can all agree Palm Beach is a magical place that consistently presents an allure of sophistication, elegance, tradition and power – the very essence of the Outer...

Read Article
Outer Reef on Display at Yachts Miami Beach 2016

Outer Reef on Display at Yachts Miami Beach 2016

February 24, 2016

Outer Reef Yachts’ displayed three yachts at the Yachts Miami Beach, Collins Avenue show February 11th-15th, 2016. Our Outer Reef 860 Deluxbridge, 580 Motoryacht an...

Read Article
Outer Reef Yachts To Attend 2016 Palm Beach International Boat Show

Outer Reef Yachts To Attend 2016 Palm Beach International Boat Show

February 23, 2016

Outer Reef Yachts will join the yachting community for the 31st Annual Palm Beach International Boat Show, March 17 - 20th, 2016. Join Outer Reef Yachts, positioned on Ra...

Read Article
Outer Reef Yachts 550 Trident and 860 DBMY To Make World Debut at 2016 Yachts Miami Beach Boat Show

Outer Reef Yachts 550 Trident and 860 DBMY To Make World Debut at 2016 Yachts Miami Beach Boat Show

January 20, 2016

Award-winning long-range motor yacht builder Outer Reef® Yachts is proud to announce the highly anticipated 550 Trident long range sport motoryacht will make its worl...

Read Article
New Outer Reef Full Beam 86' Deluxbridge Motoryacht

New Outer Reef Full Beam 86' Deluxbridge Motoryacht

February 24, 2015

With the great success of the Outer Reef Yachts 86' Classic Series, a new full beam 86' Deluxbridge is currently under construction and will be ready for shipping to a ne...

Read Article

860 Deluxbridge Skylounge Motoryacht Magazine Features

860 Deluxbridge MY

Press Release

December 2009
