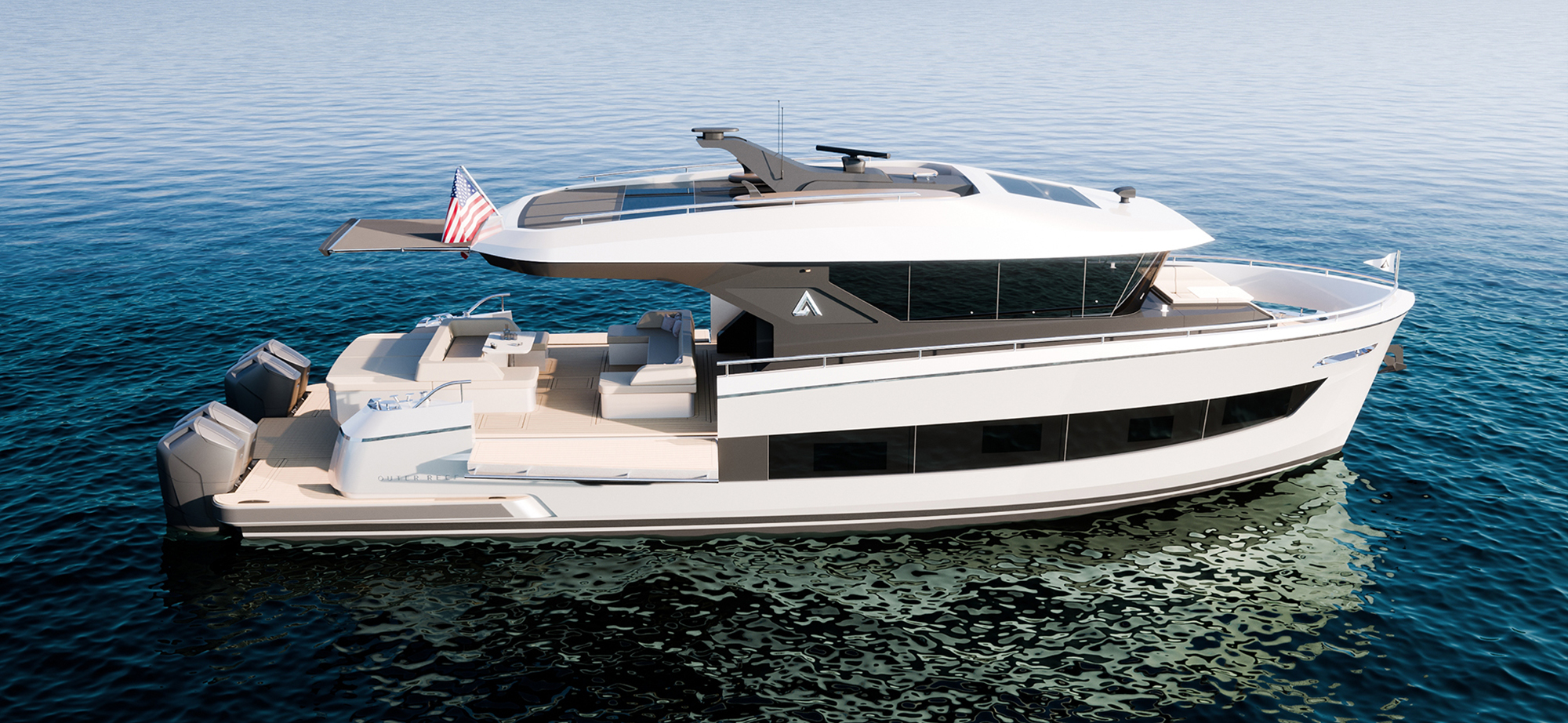

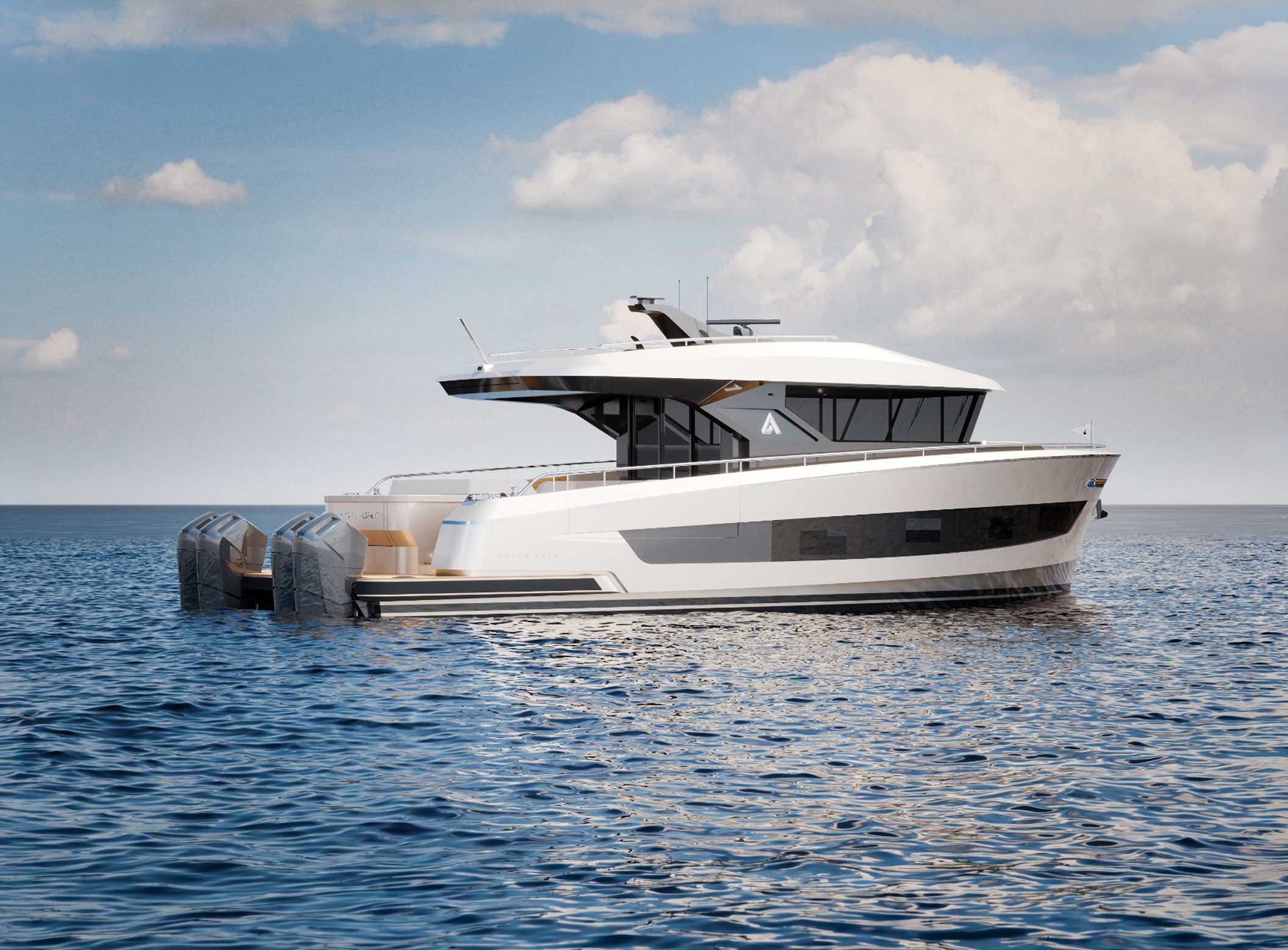

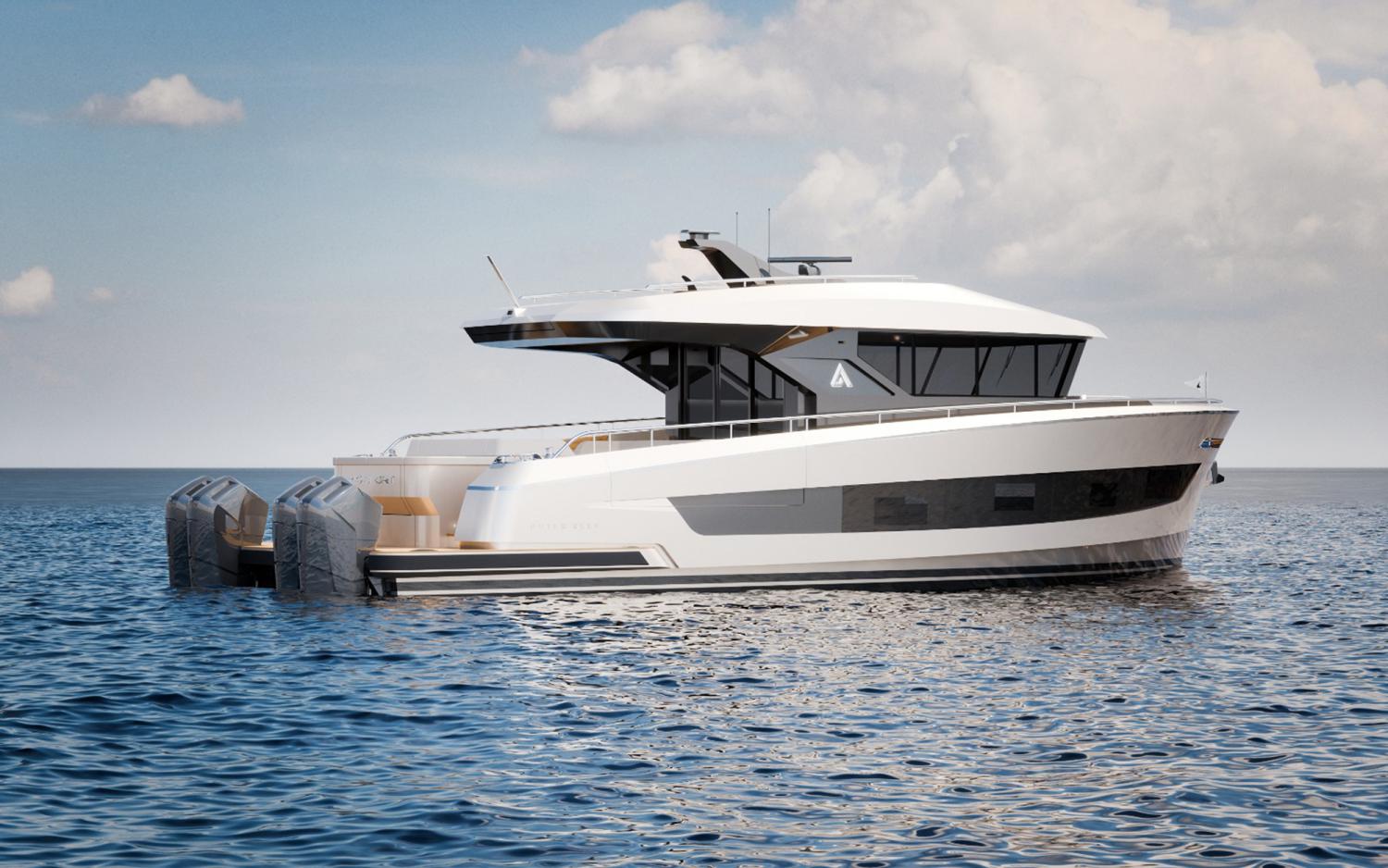

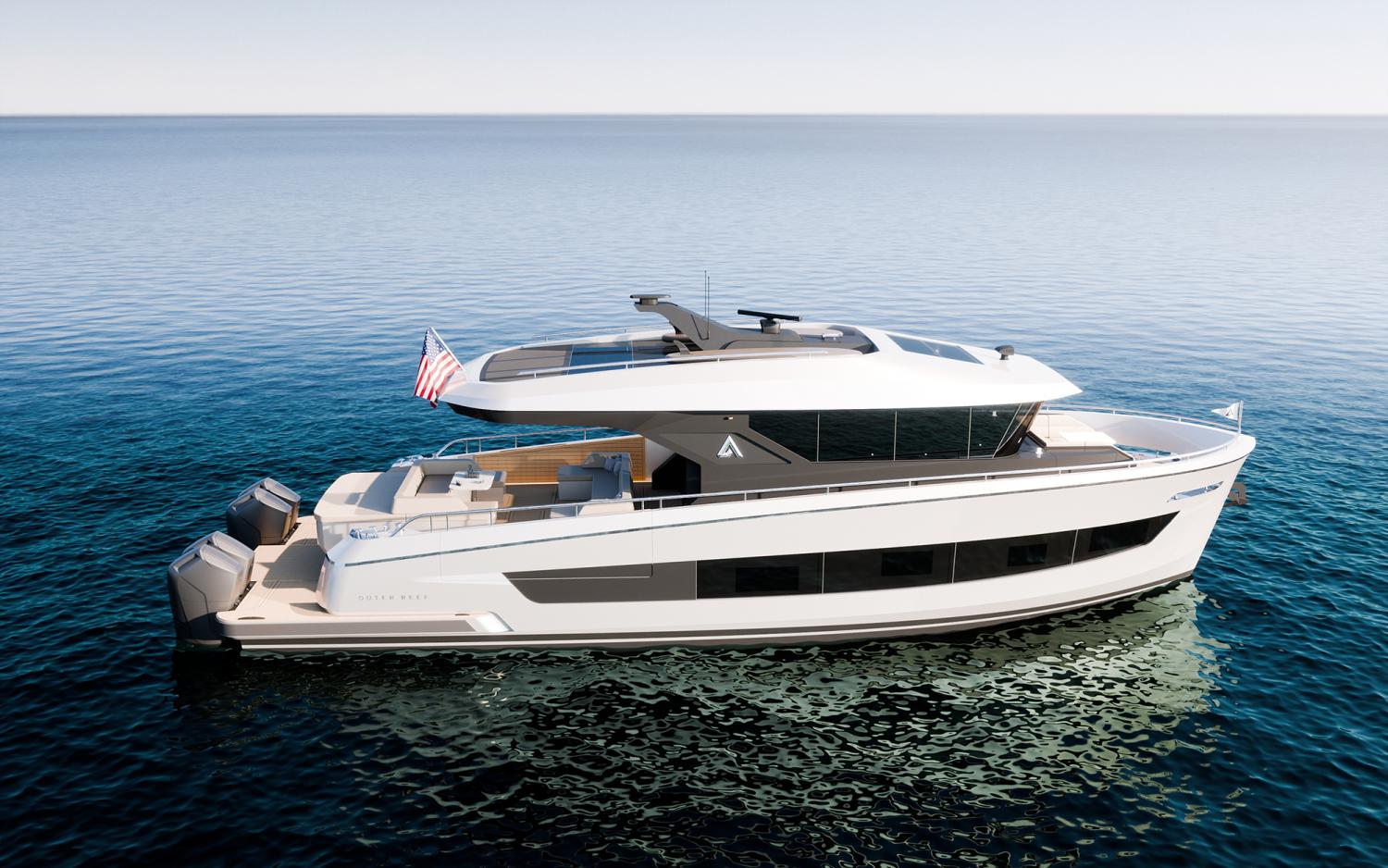

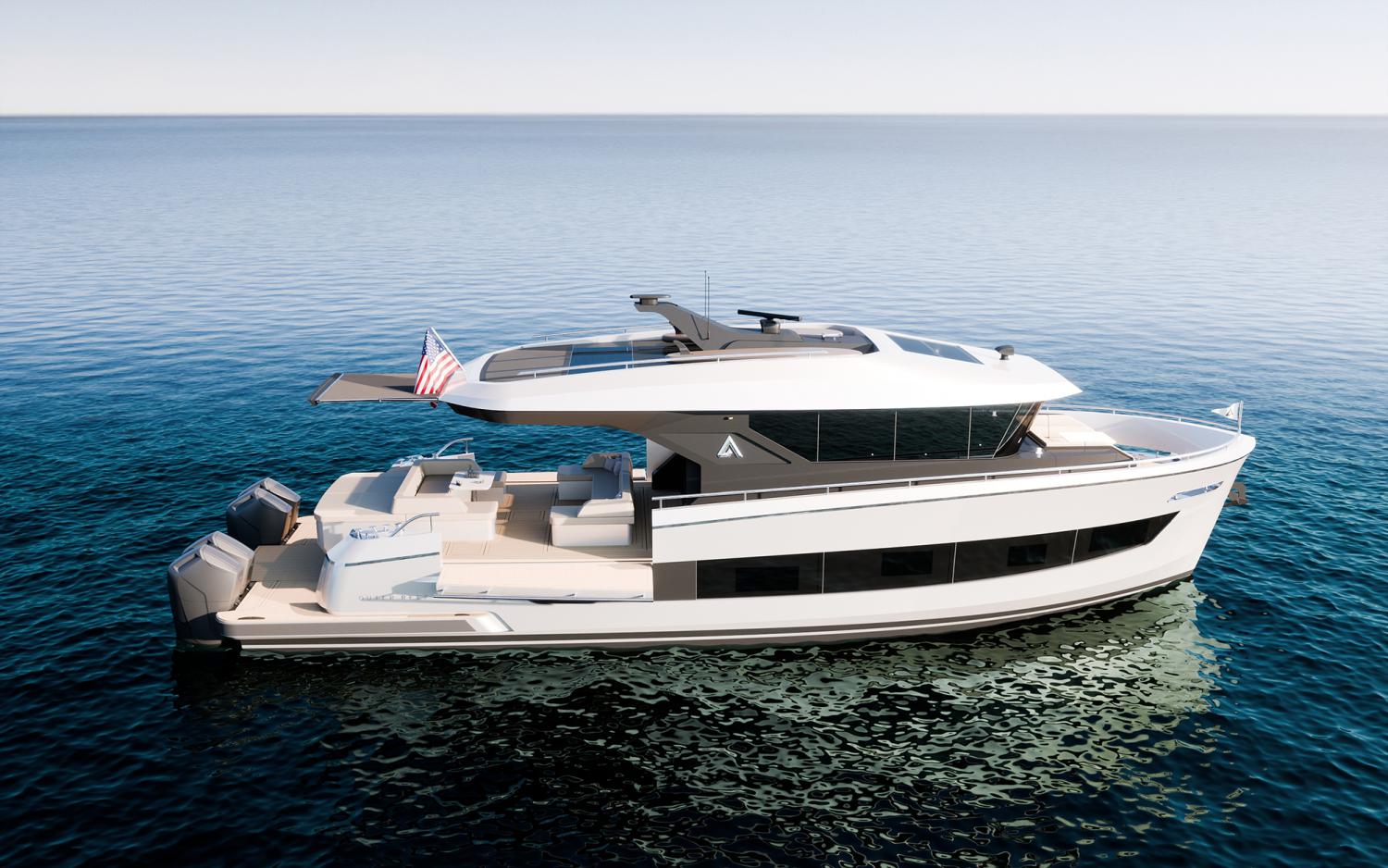

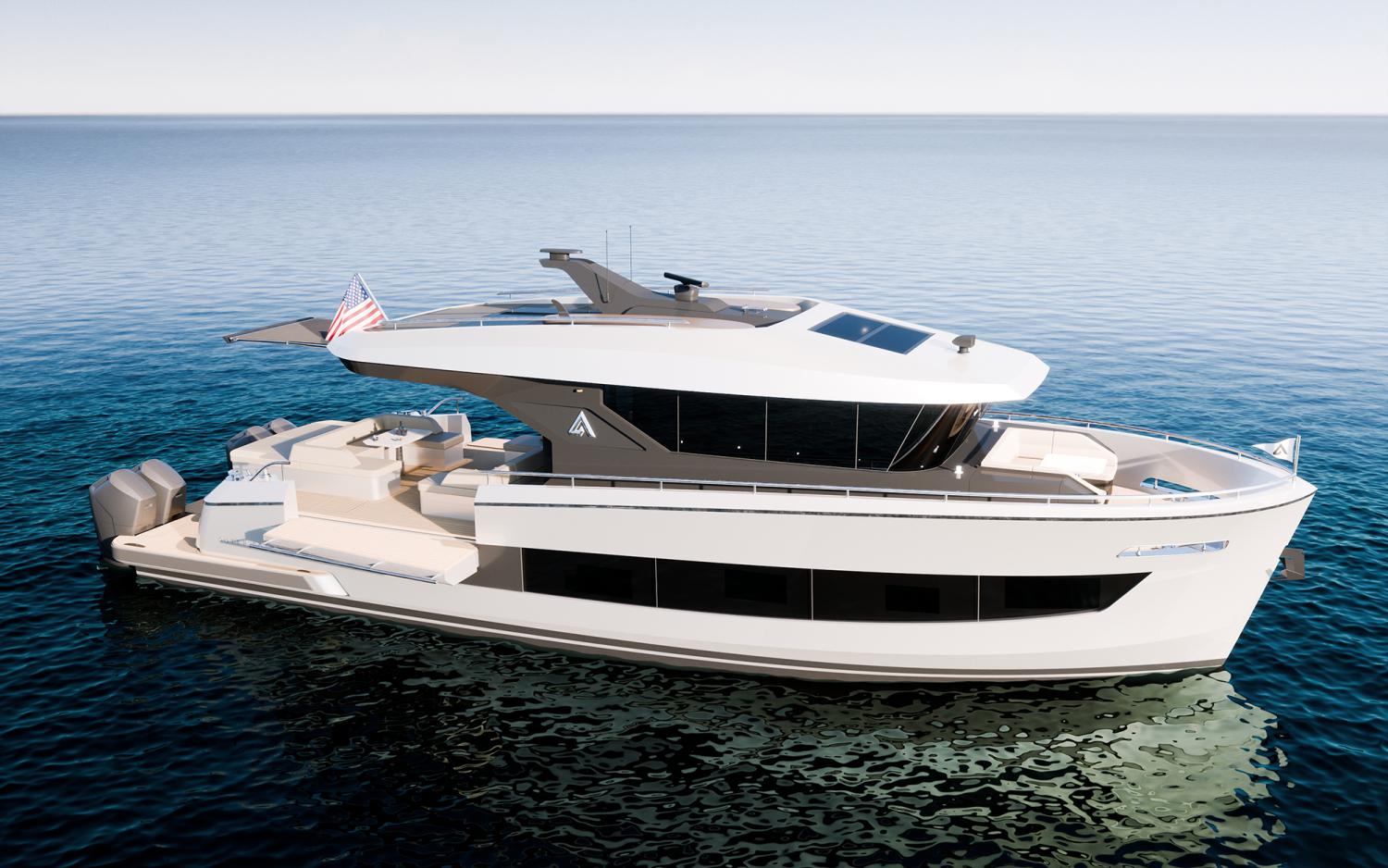

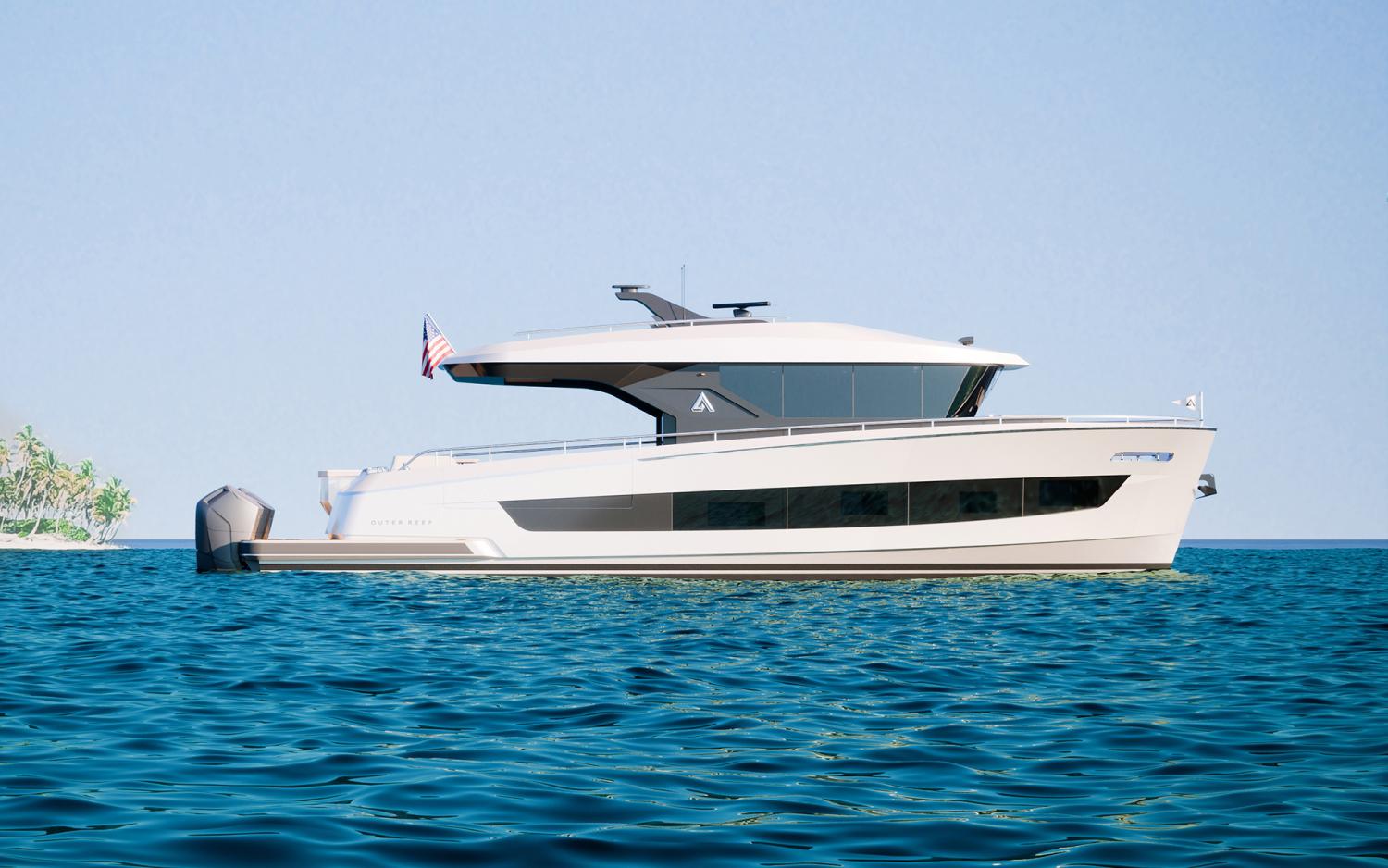

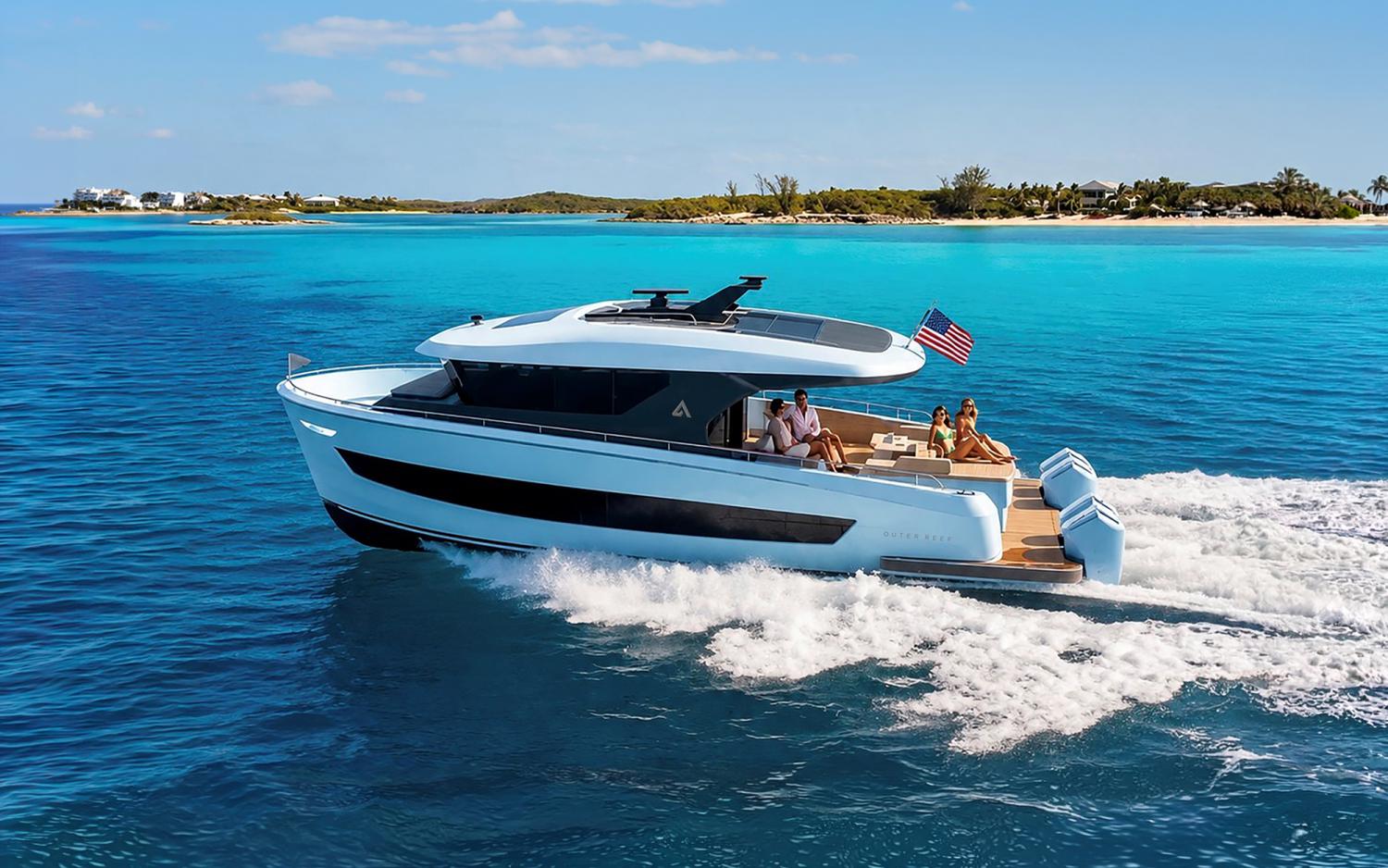

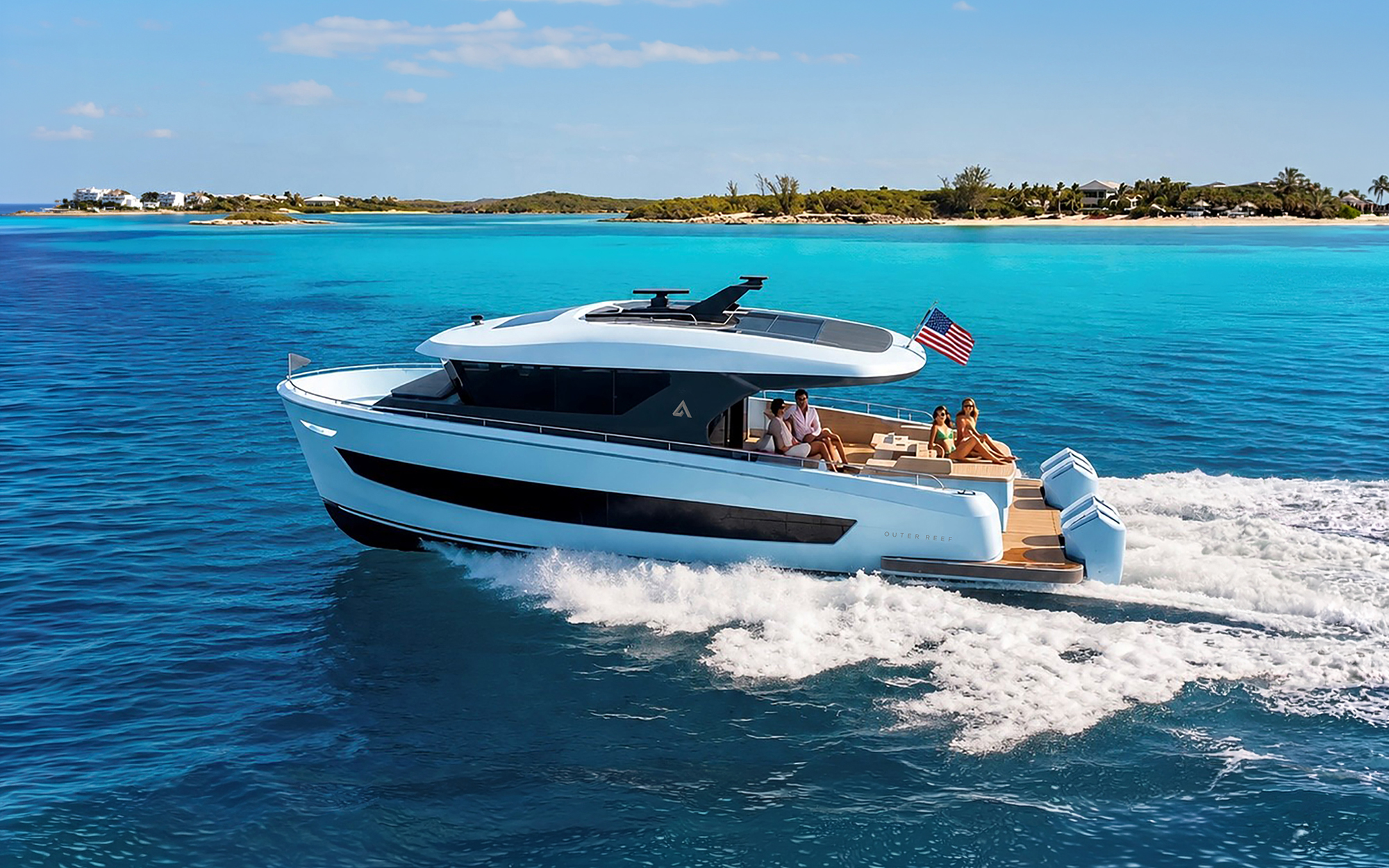

540 Adventure Sport Yacht

The Outer Reef 540 Adventure Sport Yacht brings a fresh, active approach to long-range cruising. Designed for owners who want to make the most of every destination, she combines expansive outdoor living, exceptional toy-carrying capacity, three-stateroom accommodations, and approximately 2,000 nautical miles of range into one remarkably versatile yacht.

Designed and engineered in the Netherlands by Weel Sluijter Design, Studio Delta Naval Architects, Julian Moore Design, and the Outer Reef team, the 540 Adventure Sport shares the proven platform of the 540 Adventure and carries CE Category A – Unlimited Ocean certification. Powered by quad 500 HP Mercury SeaPro V-12 outboards, she offers an exciting combination of performance, maneuverability, efficiency, and open-water capability.

DESIGNED AROUND THE WAY YOU WANT TO PLAY

The 540 Adventure Sport Yacht was created for owners who believe the best part of cruising is getting out on the water and making every destination an adventure. Fold-down balconies open the yacht to the water, while generous exterior spaces provide room to entertain, relax, dive, swim, or launch the day's next adventure. Purpose-built storage accommodates an impressive collection of water toys, including a personal watercraft, Williams jet tender, multiple SEABOBs, dive equipment and an onboard dive compressor, plus multiple stand-up paddleboards conveniently stored on the rooftop.

And when the day's activities are over, owners return to the comfort of a yacht designed for extended stays aboard. The 540 Adventure Sport retains the spacious three-stateroom accommodations of the 540 Adventure, providing a level of comfort and livability not typically associated with sport-oriented yachts. The Outer Reef 540 Adventure Sport Yacht expands the Adventure Series for owners looking for more ways to enjoy the water without giving up the comfort and capability expected from an Outer Reef.

Pre-orders are now available.

LOA 56’ 5” (17.2m)

Beam 18’ 3” (5.5m)

Draft 4’ 0” (1.2m)

Range 2,000 nm at Eco Speed

Key Specifications

LOA: 56’ 5” (17.2m)

LWL: 52’ 9” (16.1m)

Beam: 18’ 3” (5.5m)

Draft: 4’ 0” (1.2m)

Displacement: 28.5 Tons (half-load)

Range: 2,000 nm at Eco Speed

Cabins: 3+ Optional Crew

Fuel Capacity: Gasoline 1425 Gallons | Diesel (Generator) 250 Gallons

Water Capacity: 335 US Gallons (1267 Liters)

Holding Tank Capacity: 174 US Gallons (658 Liters)

View Full Layouts

Full Specifications

Aluminum hull and superstructure
All aluminum plating to be primed and coated with corrosion protection
Hull and superstructure to be faired and painted with Awlgrip Awlcraft 2000 paint system
Two (2) coats of black antifouling paint over 2-part epoxy primer below waterline
Integral rub rails with stainless steel capping
Windows with 10mm tempered safety glass in galley and salon and 14mm tempered safety glass in pilothouse

LAZARETTE

Edura gray coin dot flooring
Watertight storage for tender (345 Williams Jet or similar, NOT included) and personal watercraft
Hull interior finished with white gloss polyurethane paint
Two (2) LED overhead lights with two (2) two-way switches

MECHANICALS

Humphree integrated interceptors
Northern Lights Generator – one (1) 16kw (60hz) w/ sound shields (one (1) 16kw (50hz) for AU-EU) with dedicated diesel fuel tank
AquaAir or equal direct expansion air conditioning system
Ball-valve seacocks on all through-hulls below waterline
One (1) 50amp isolation transformer
One (1) 5.0kw inverter/chargers for the house battery bank (24VDC to 115VAC-60Hz or 230VAC/50Hz)
One (1) Racor 1000 MA single fuel filters for generator
Four (4) automatic bilge pumps 24v DC
Fire system and bilge high-water alarm system with warning panel
Fresh water hose bibb
Lithium-Ion batteries in FRP boxes:
Two (2) engine banks with two (2) 8D batteries for each bank
One (1) house bank with four (4) Victron LFP 25.6 volt 300 amp hour
One (1) generator bank with one (1) battery
One (1) 24v and one (1) 12v battery charger
Two (2) battery isolators
20 gallon water heater with heat exchanger
Four (4) 24v DC blowers
Six (8) LED overhead Lights –110v AC/24v DC (220v AC/ 24v DC for AU-EU) with two (2) two-way switches
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU) with waterproof covers
Side-Power SE250 (24v) electric bow thruster and two (2) AGM 8dl-255 AH batteries
Northern Lights uplift water separator exhaust system with bypass and FRP mufflers
Bonding system to all underwater fittings with zinc anodes
Rigid freshwater pipes and color-coded copper fuel lines
Headhunter 24v DC freshwater pump with accumulator tank
Two (2) 24v DC automatic shower sump systems with external pump
Accessible wiring raceway throughout

TANKAGE

One (1) holding tank with a max capacity of 174 US gallons (658 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
One (1) stainless steel water tank with a max capacity of 335 US gallons (1267 lts)
Aluminum fuel tanks with a total capacity of 1,520 US gallons (5754 lts)
Lexan sight gauges on fuel tanks
Inspection and cleaning ports on all tanks

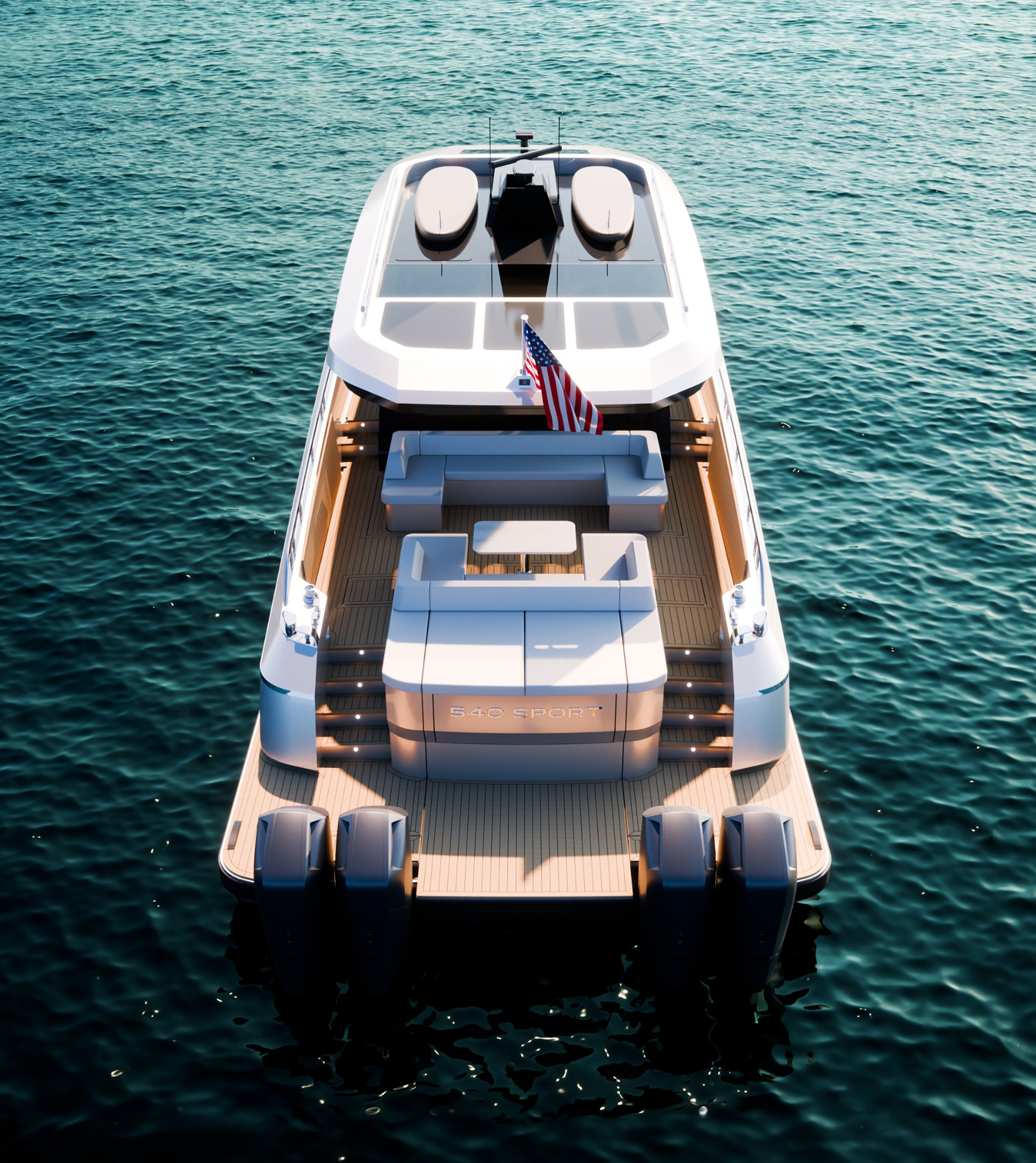

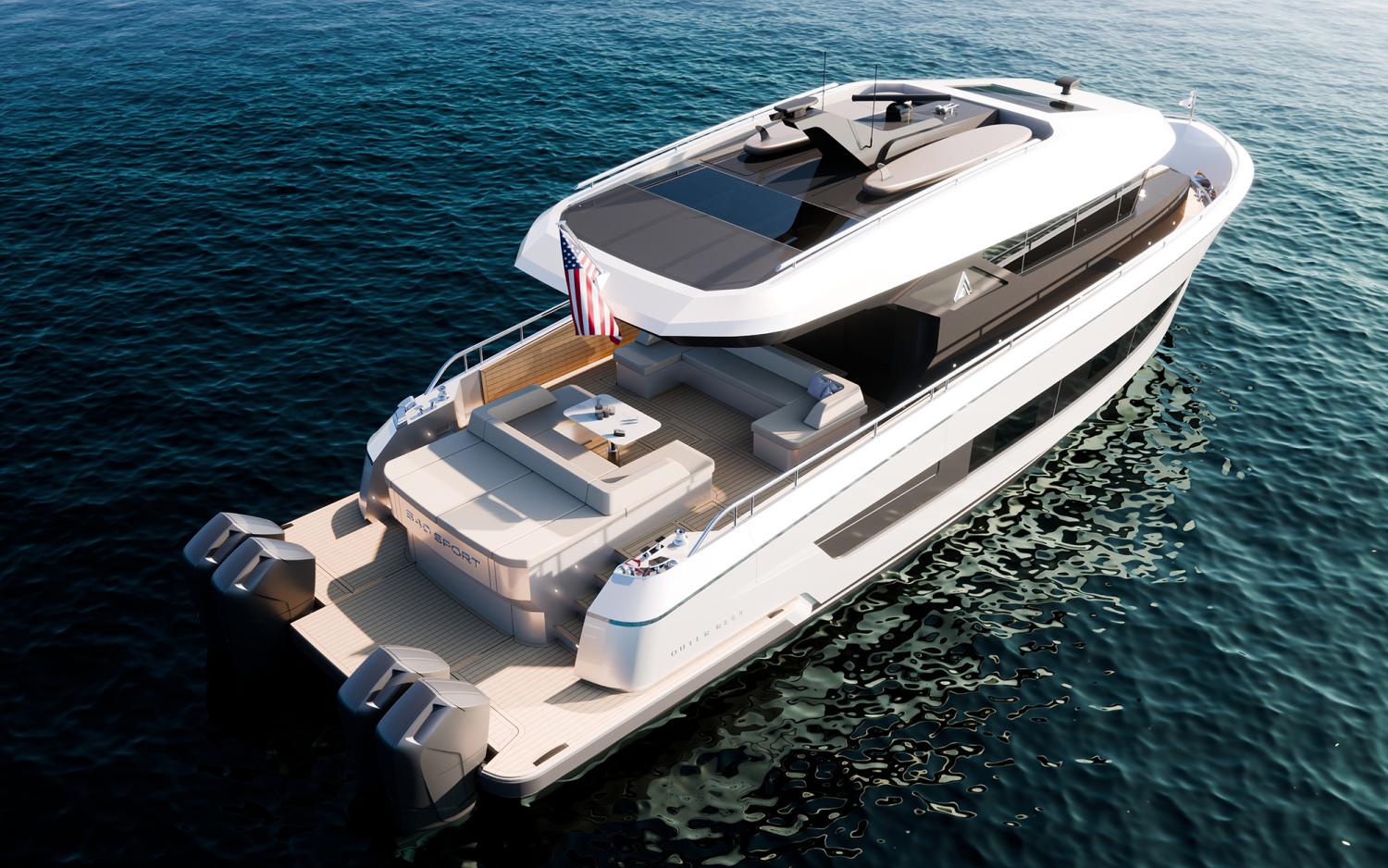

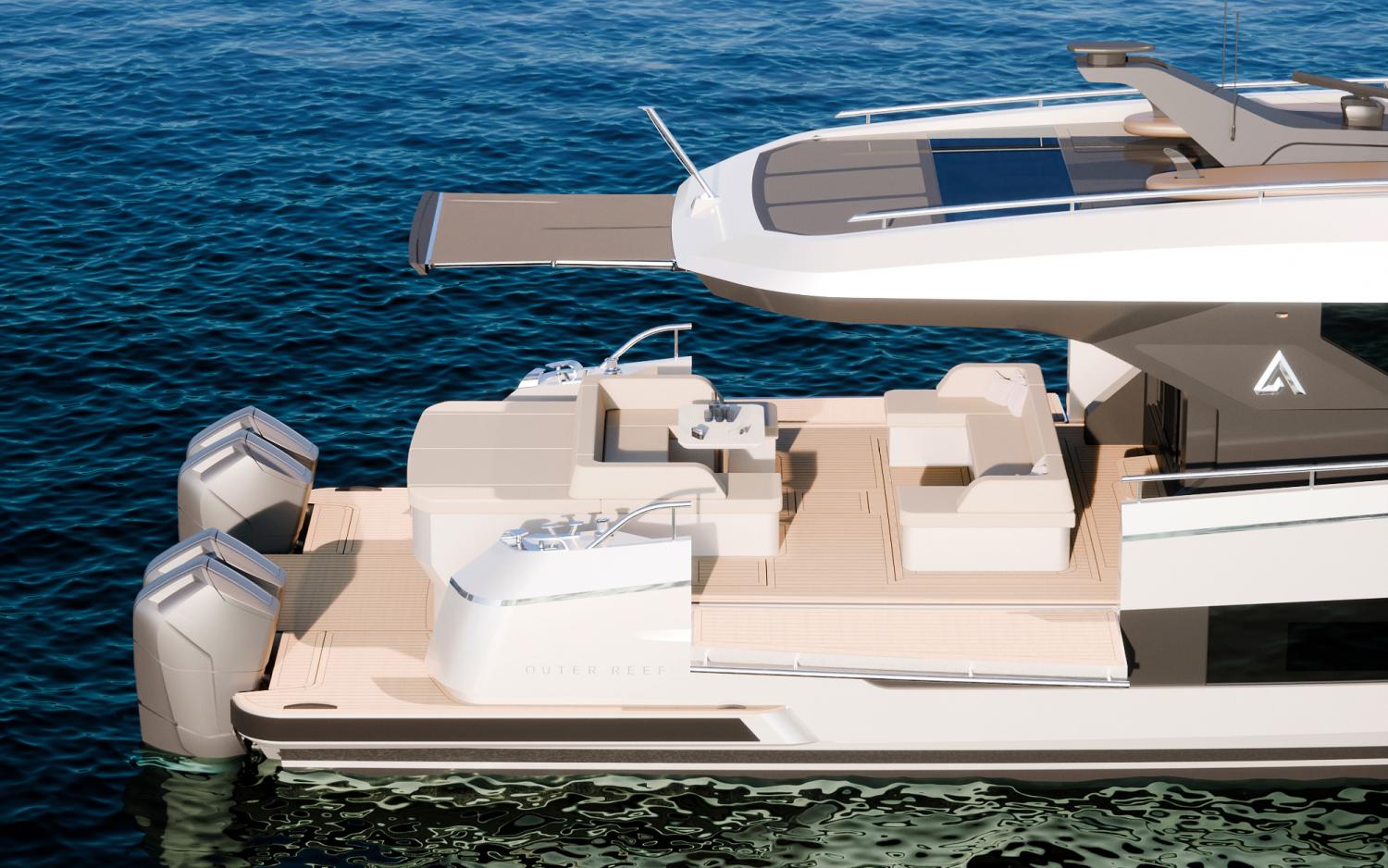

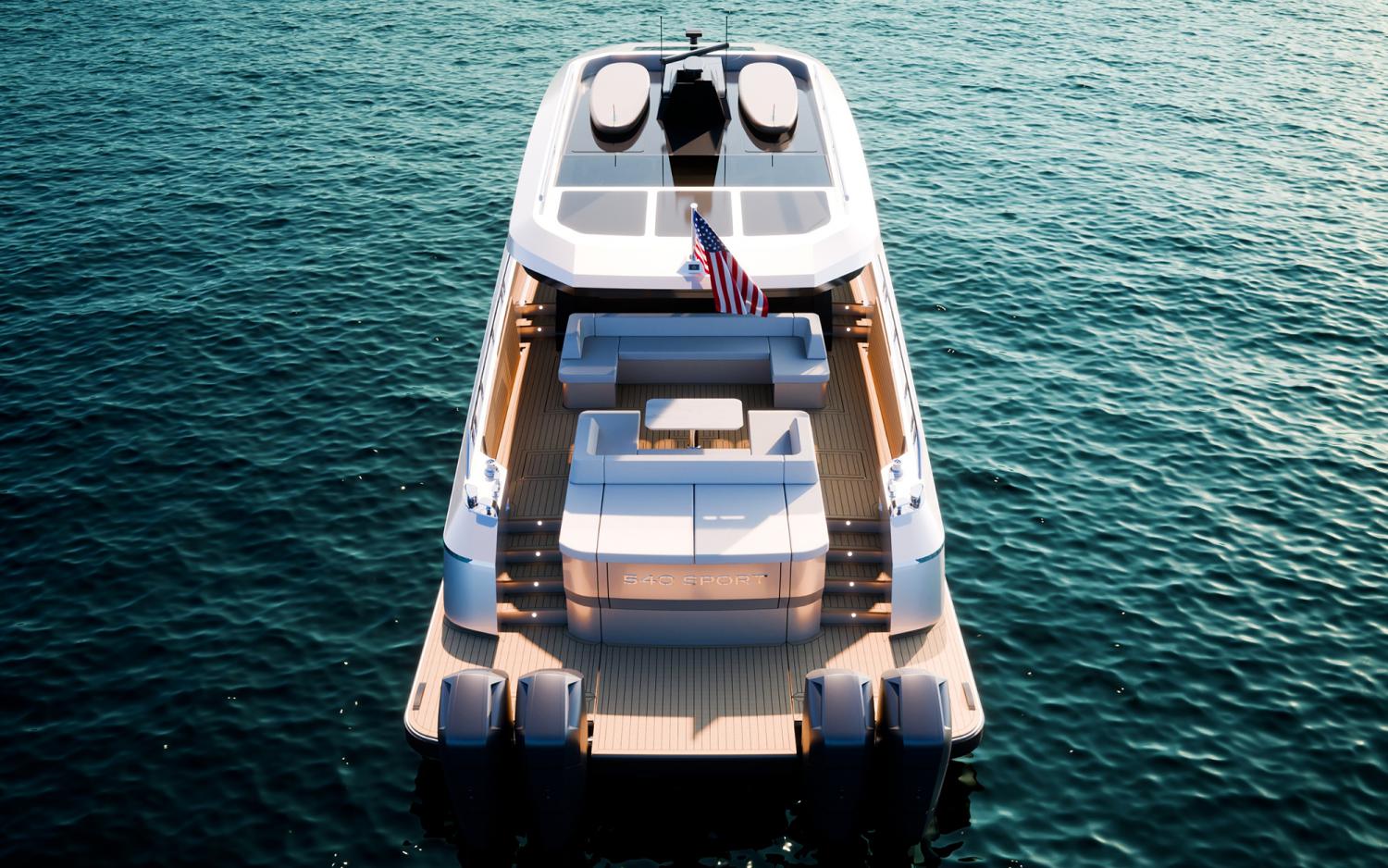

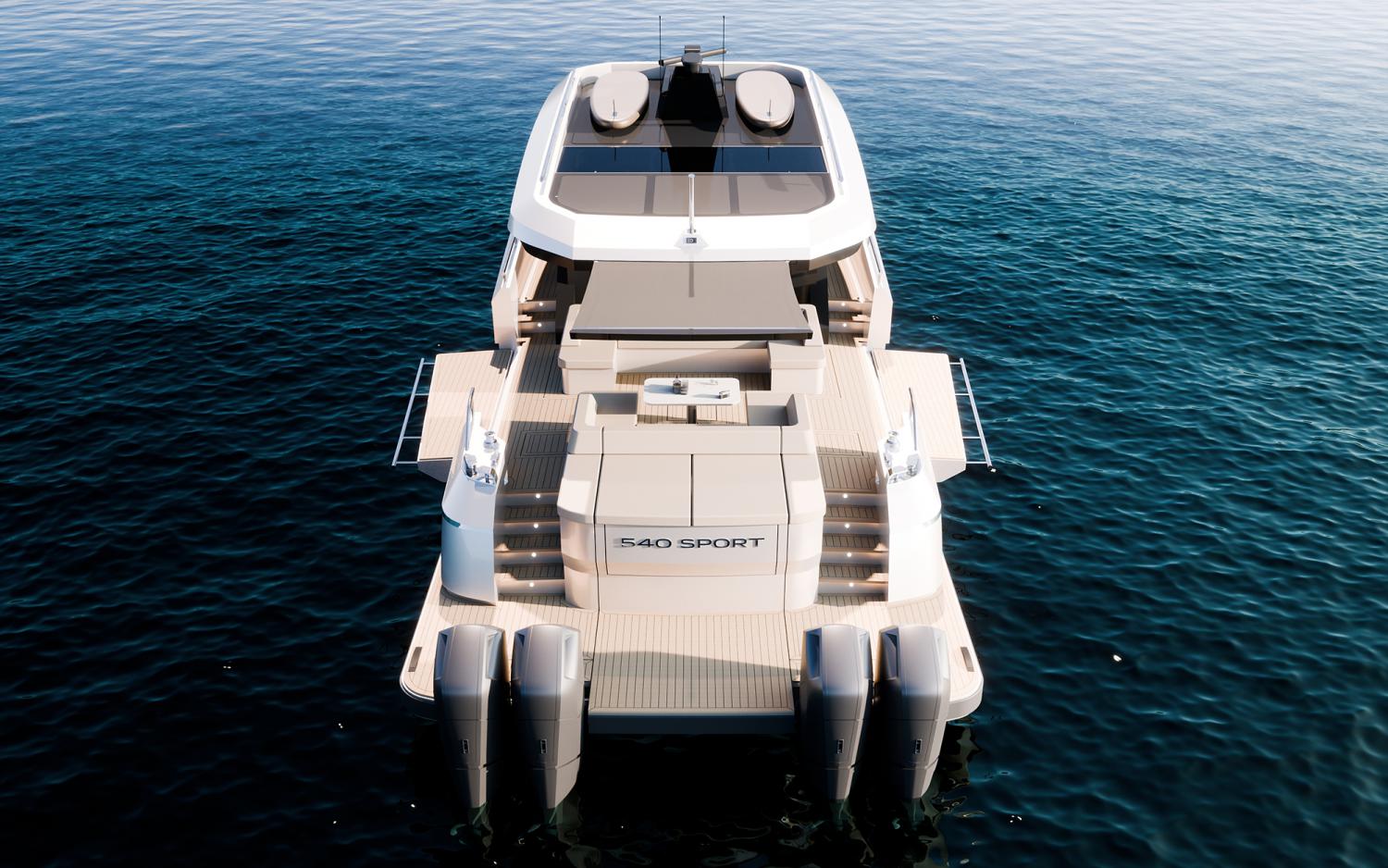

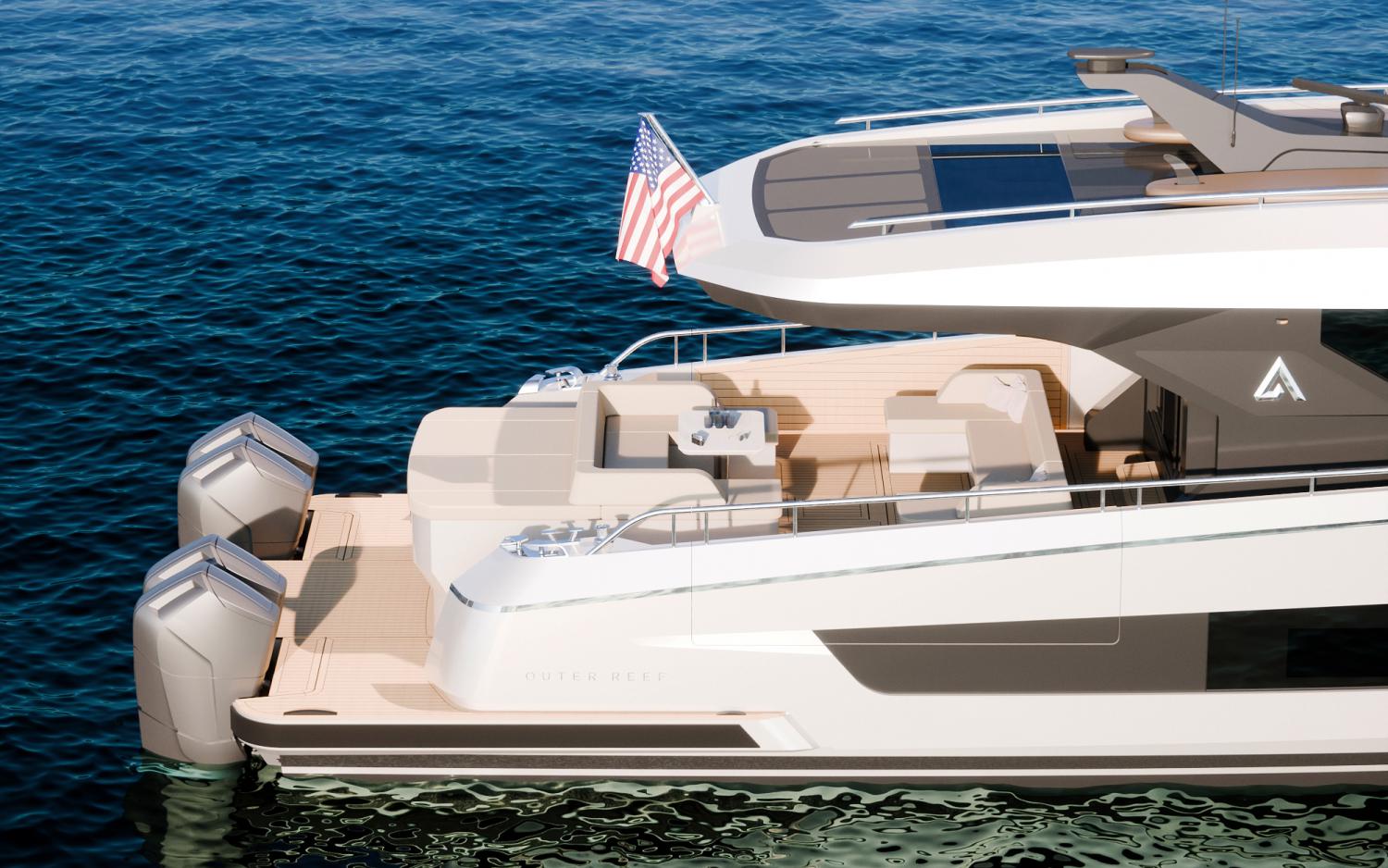

AFT DECK AREA

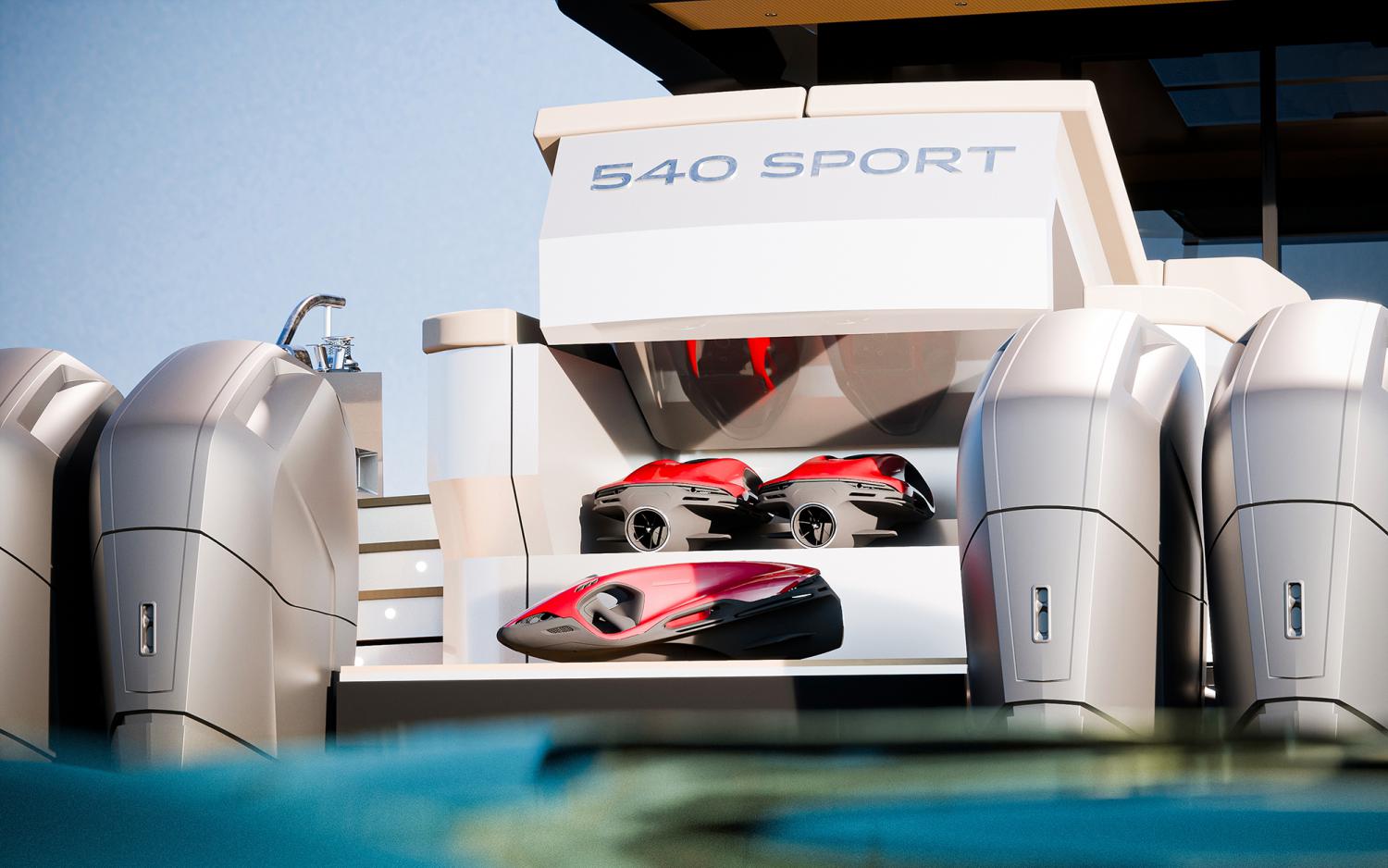

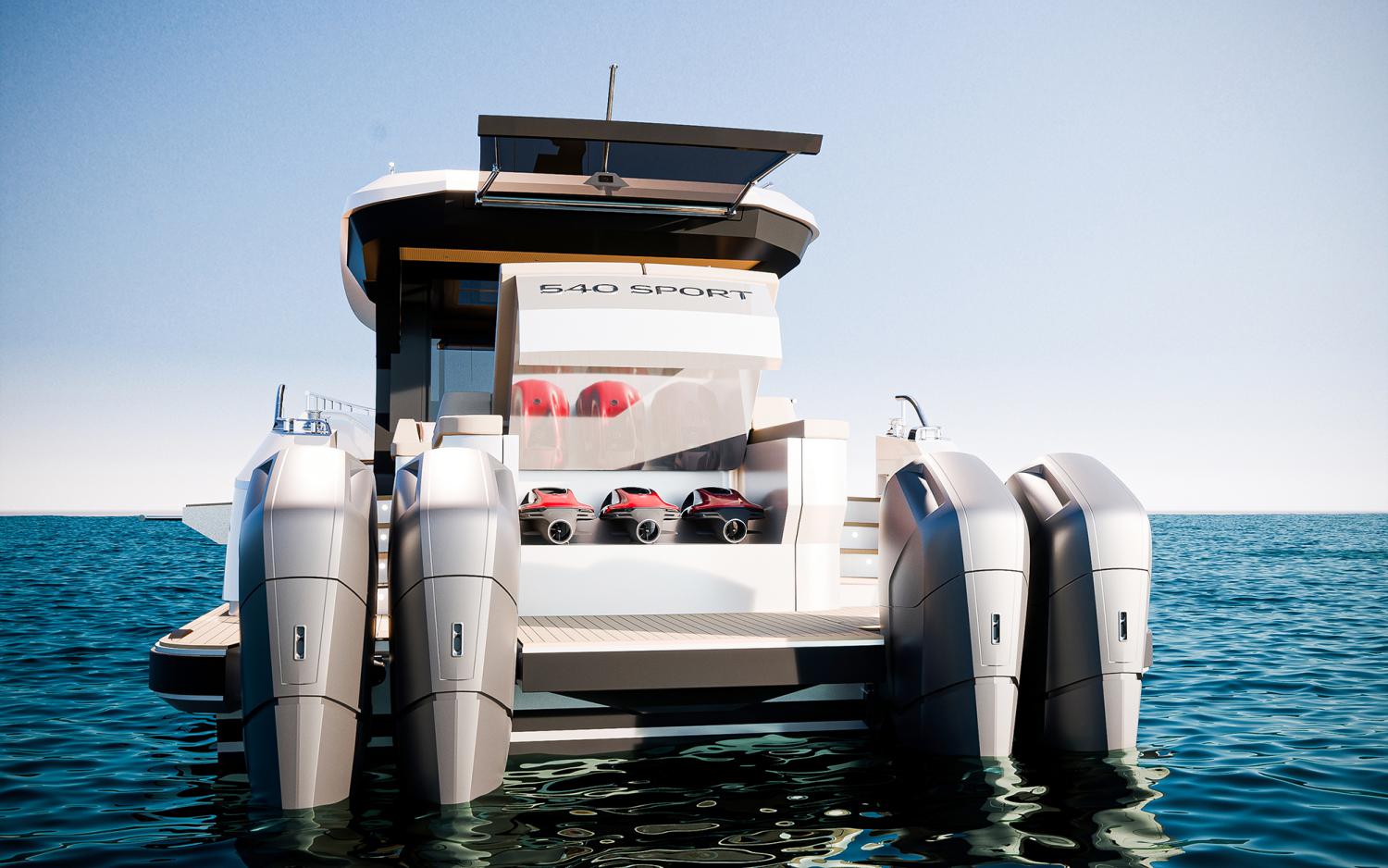

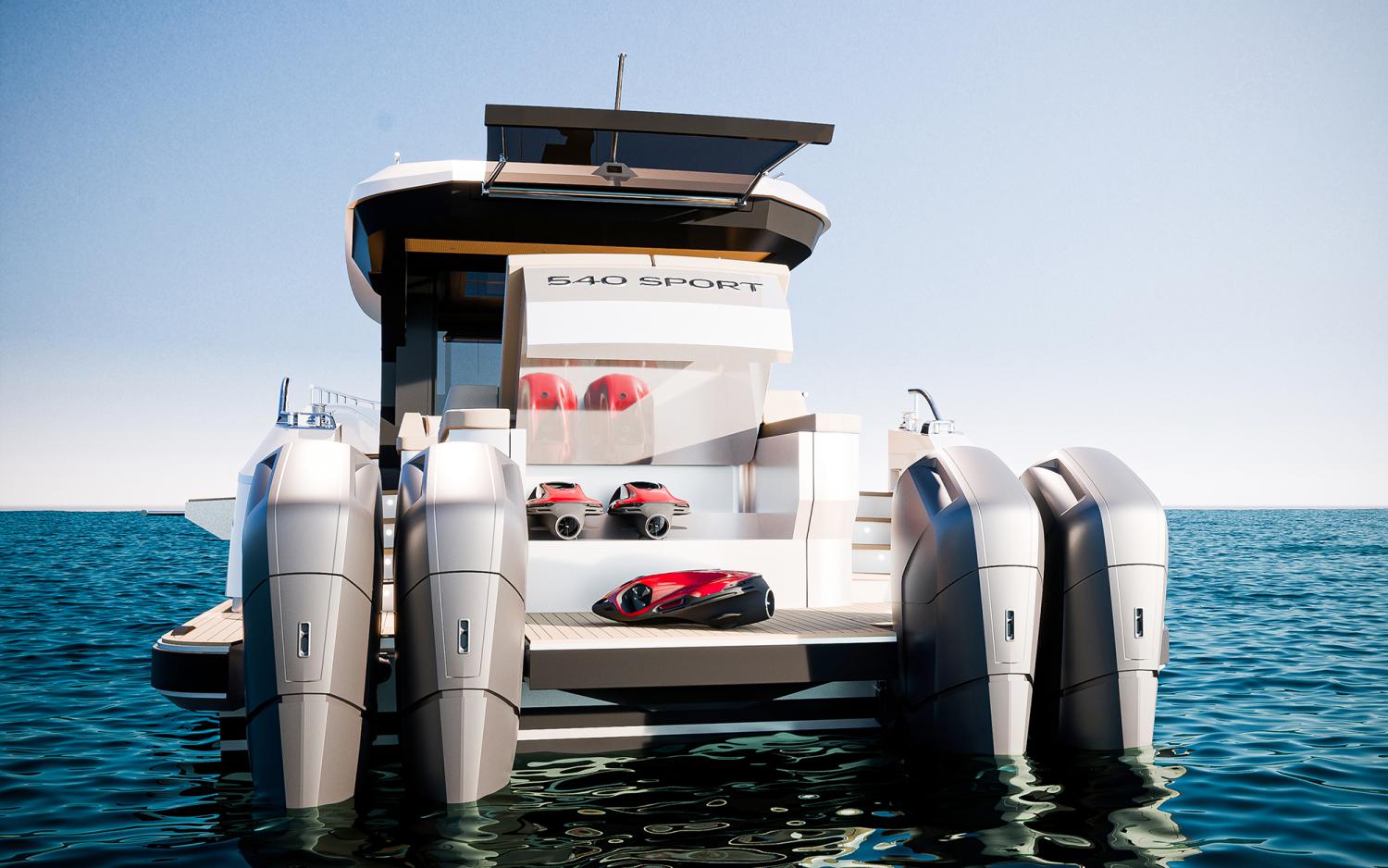

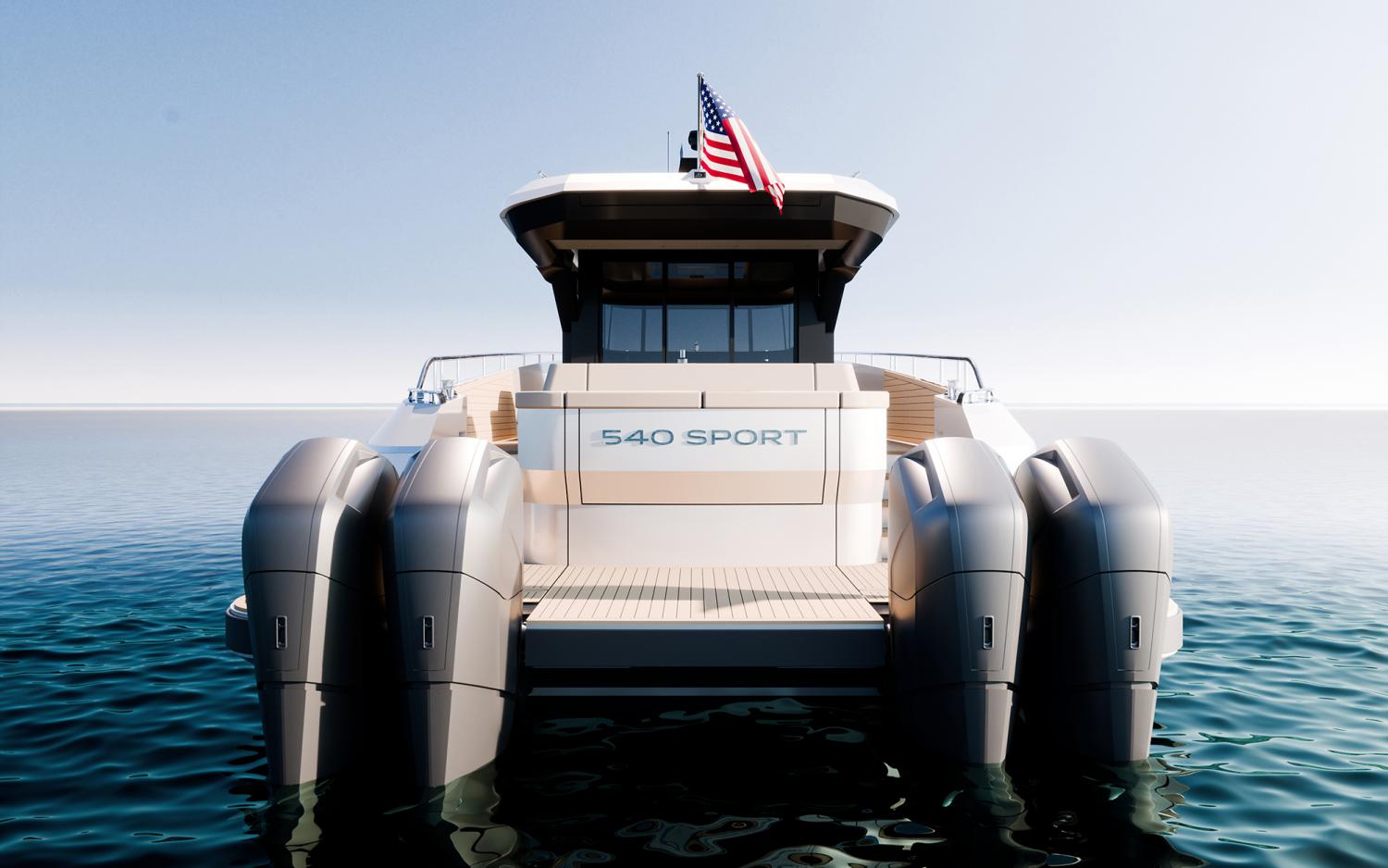

QUAD 500hp Mercury SeaPro V-12 outboards

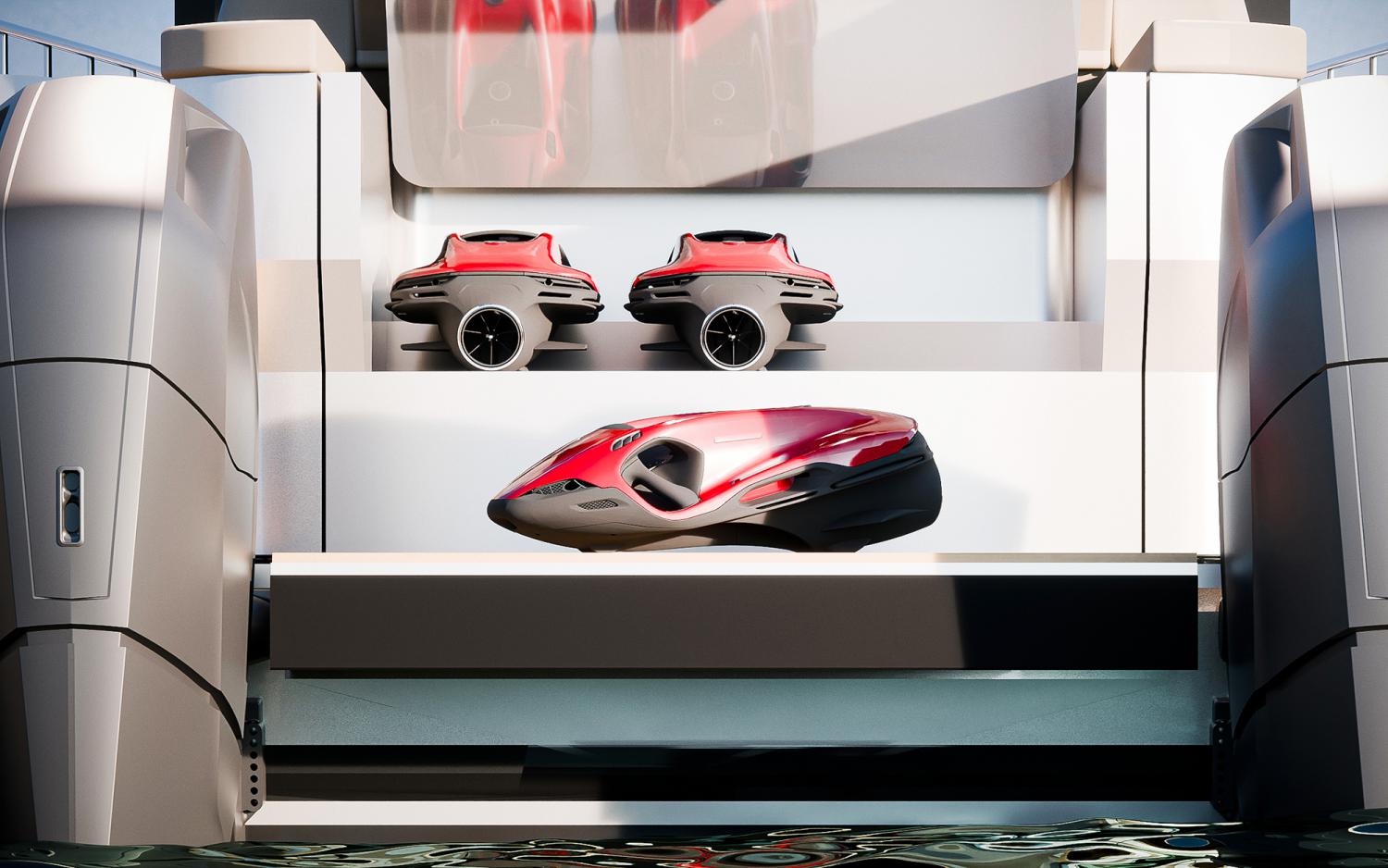

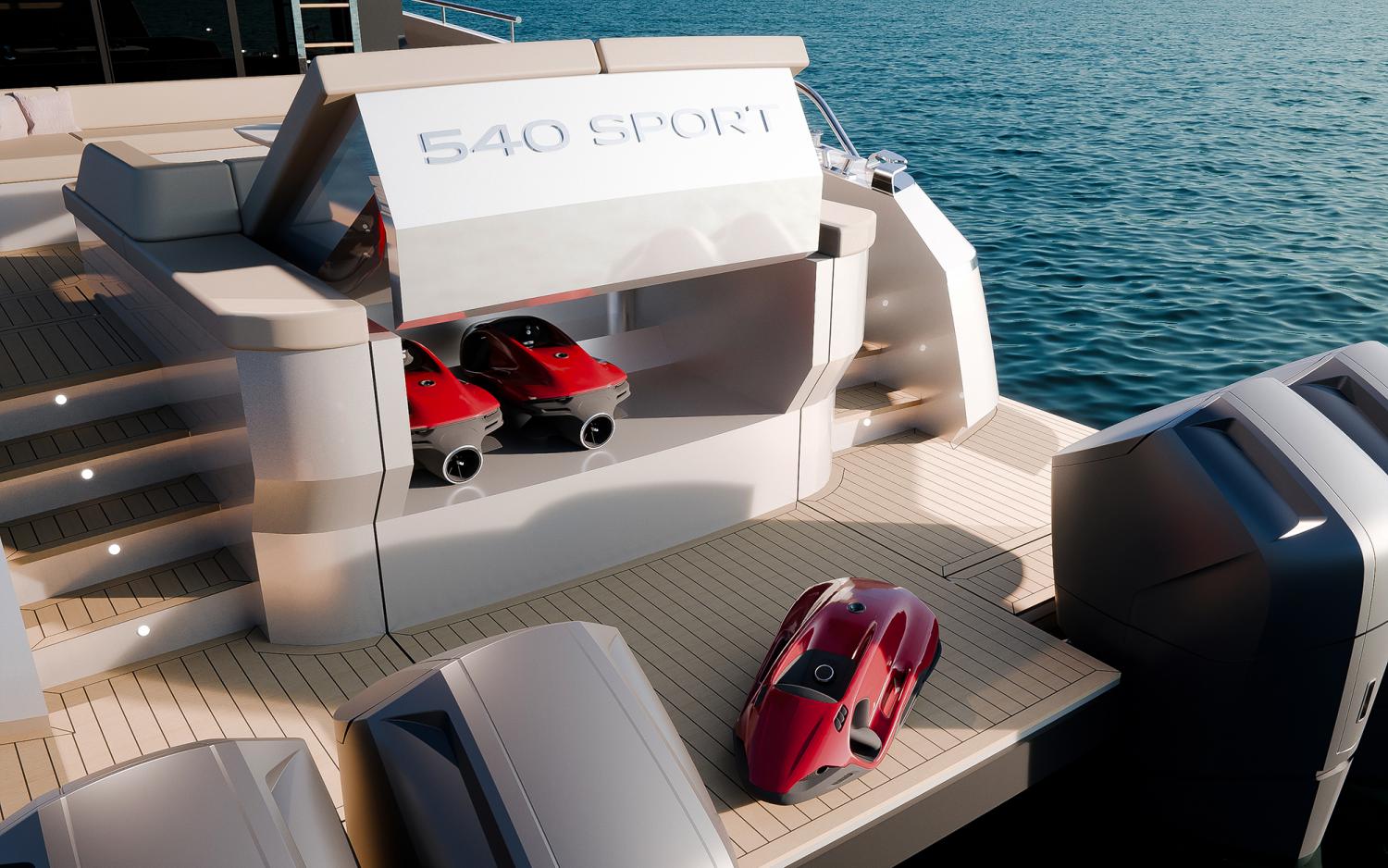

Lift up garage for Multiple SeaBob storage
Aft deck with artificial teak decking
built-in swim platform
Stainless steel removable swim ladder on swim platform and emergency swim ladder as per USCG regulations
Stairway built-in to port and starboard side from swim platform to aft deck

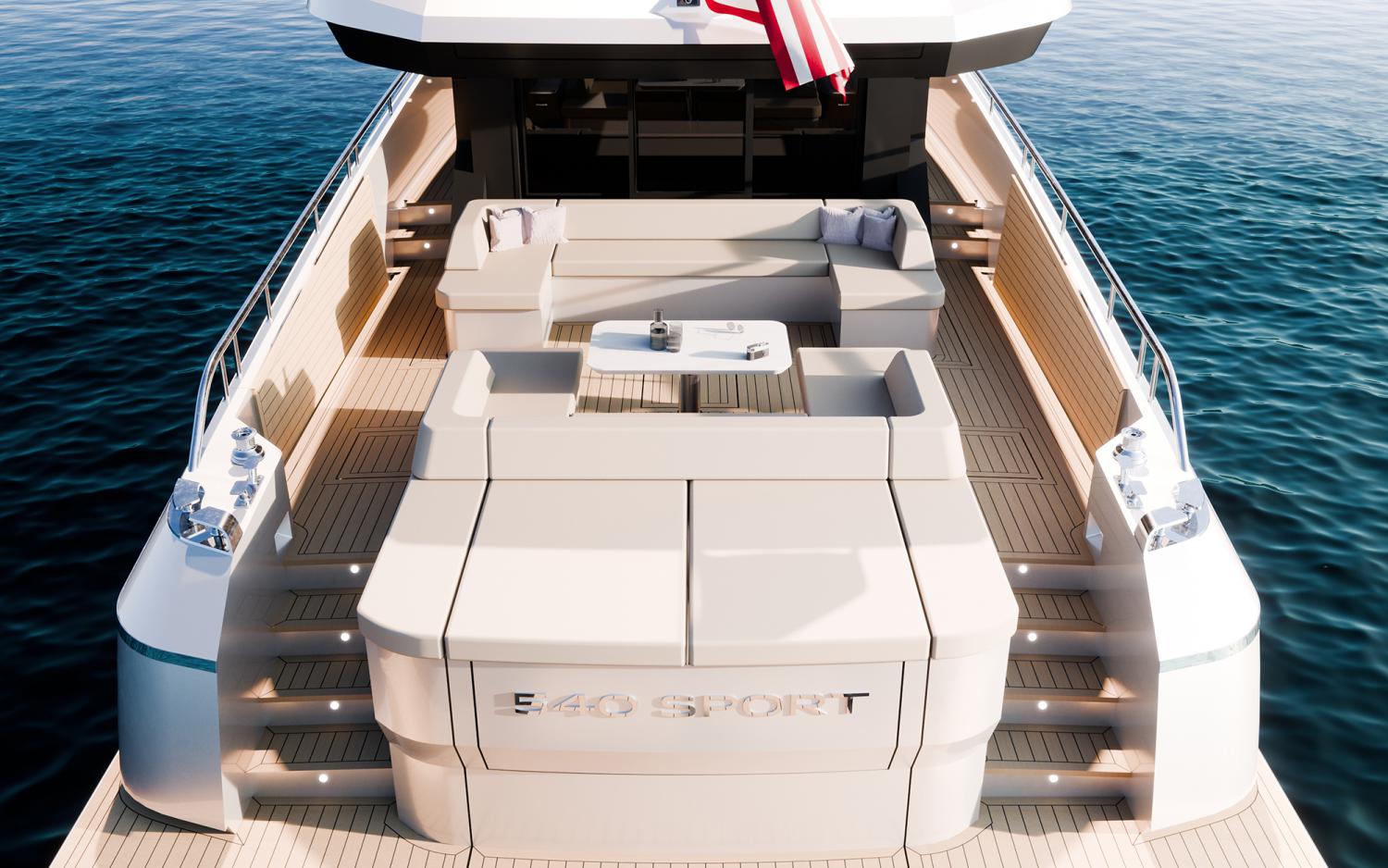

U-Shaped Aft deck bench seating both fore and aft with storage beneath
Exterior furniture fabric for aft deck
Fold down balconies on both port and STBD Sides
Transom shower in recessed box with hot and cold-water supply
Fresh water wash down outlet
Shore power inlets for 110v/220v 60hz (220v 50hz for AU-EU)
50 amp shore power inlet on transom
Two (2) LED courtesy lights with two (2) two-way switches
Three (3) LED overhead lights with one (1) standard switch inside the salon
One (1) 110v AC GFI outlet (220v 50hz for AU-EU)
316 Stainless steel heavy duty cleats inside bulwarks
316 Stainless steel handrails to and from aft deck

SIDE DECKS

Molded with artificial teak decking
Weathertight door opening into pilothouse port side
House side fixed windows with tinted tempered glass
Freeing ports
Two (2) sets of 316 stainless steel spring-line chocks per side
Four (4) LED courtesy lights along walkways
Four (4) LED overhead lights with one (1) standard switch

FORE DECK

Foredeck with artificial teak decking
U-Shaped Lounge with Dining Table with pop up courtesy lights on each side
316 Stainless steel rails on bulwarks
316 Stainless steel stanchions to support handrail
Storage Deck lockers forward in stem flanking anchor finished in white epoxy paint
Fender storage lockers each side of fore deck settee
316 Stainless steel anchor chute/roller at bow
Ultra anchor 99 lb with 300’ 3/8 chain.
Maxwell VWC-2500c (24v) vertical windlass with foot switches and remote controls for dual stations
Saltwater wash down pump with outlet
Fresh water wash down with outlet
Salt water and fresh water 316 SS faucets inside foredeck lockers
Deck drains plumbed to boot-stripe to prevent black streaks
Three (3) LED courtesy lights

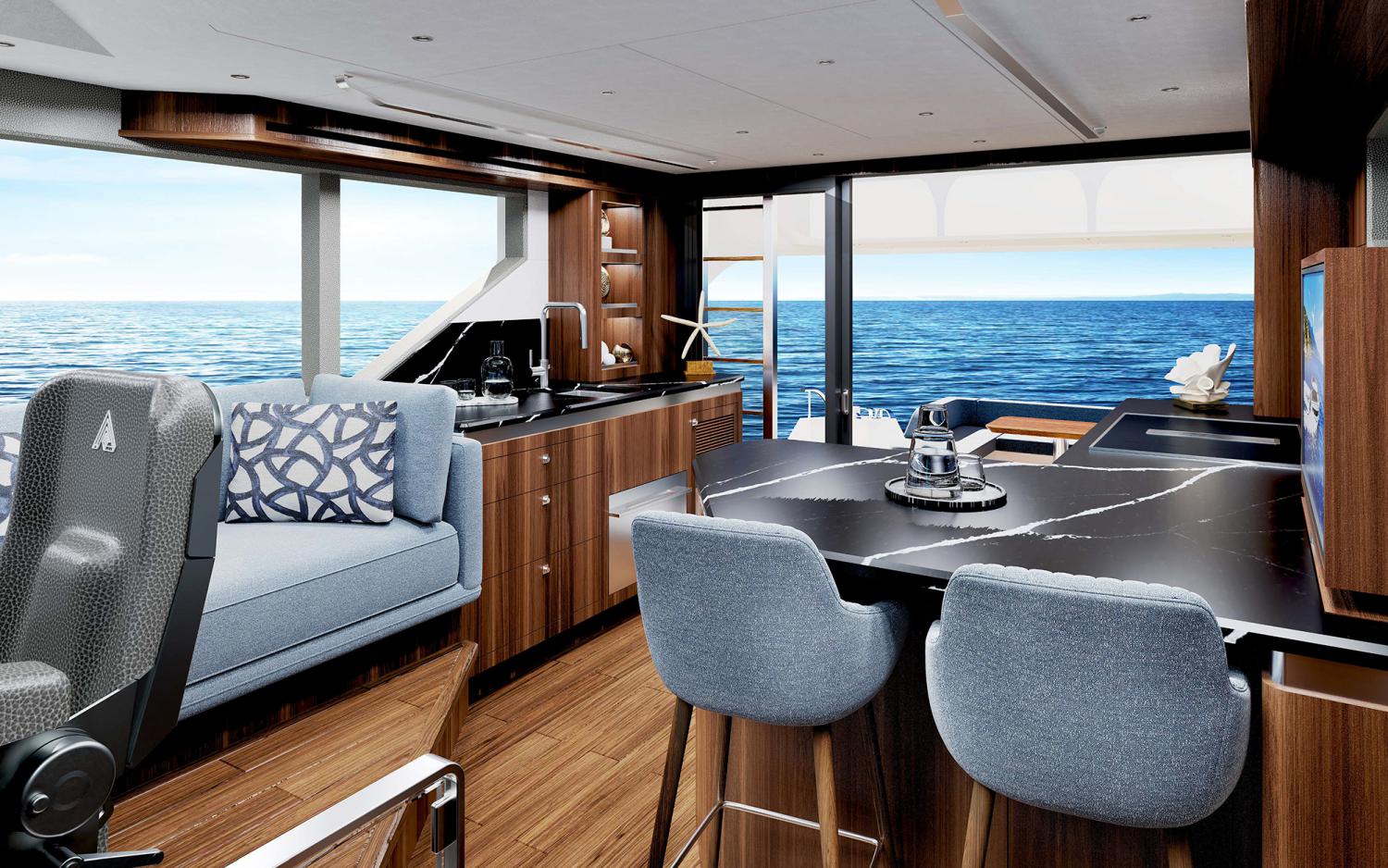

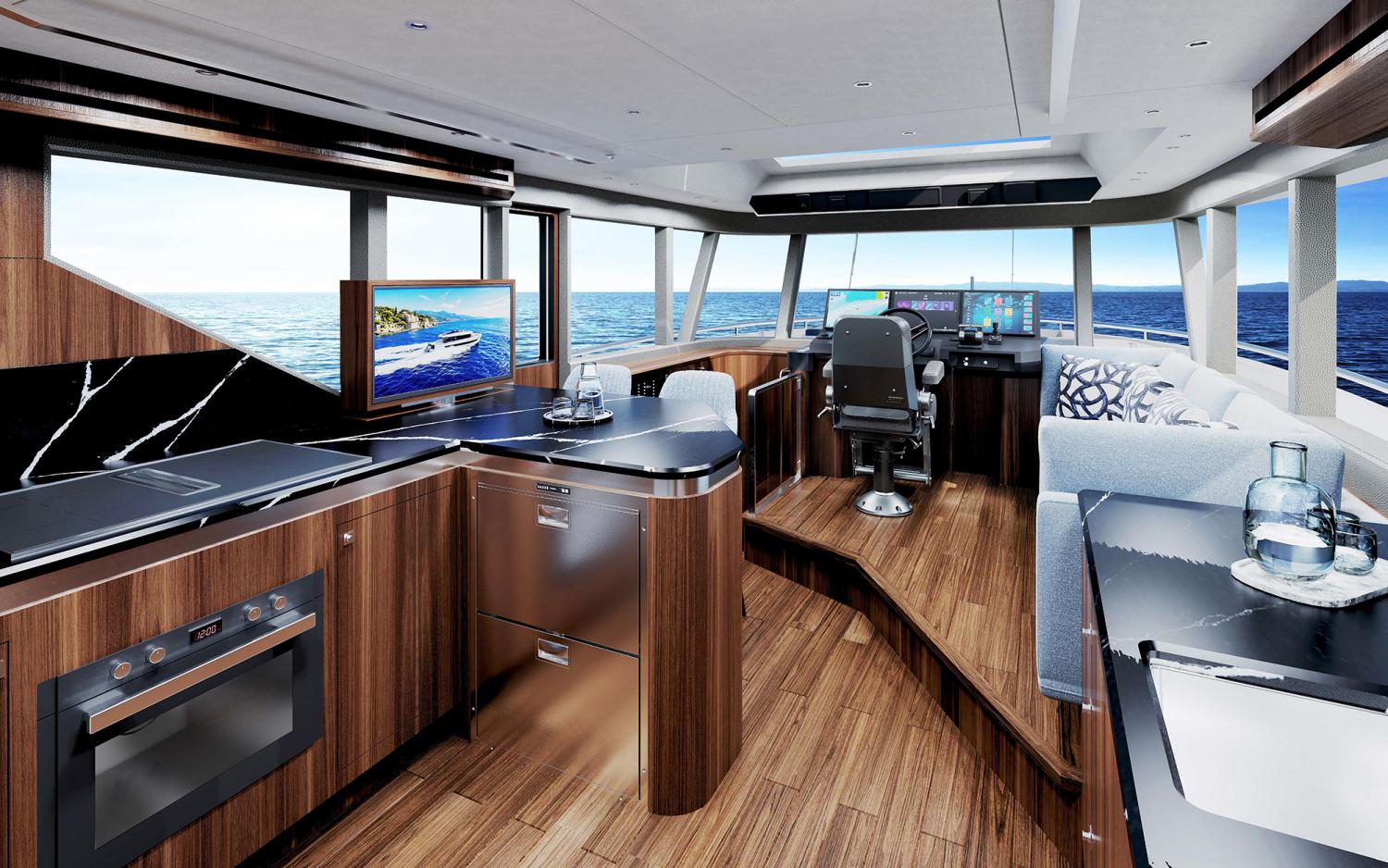

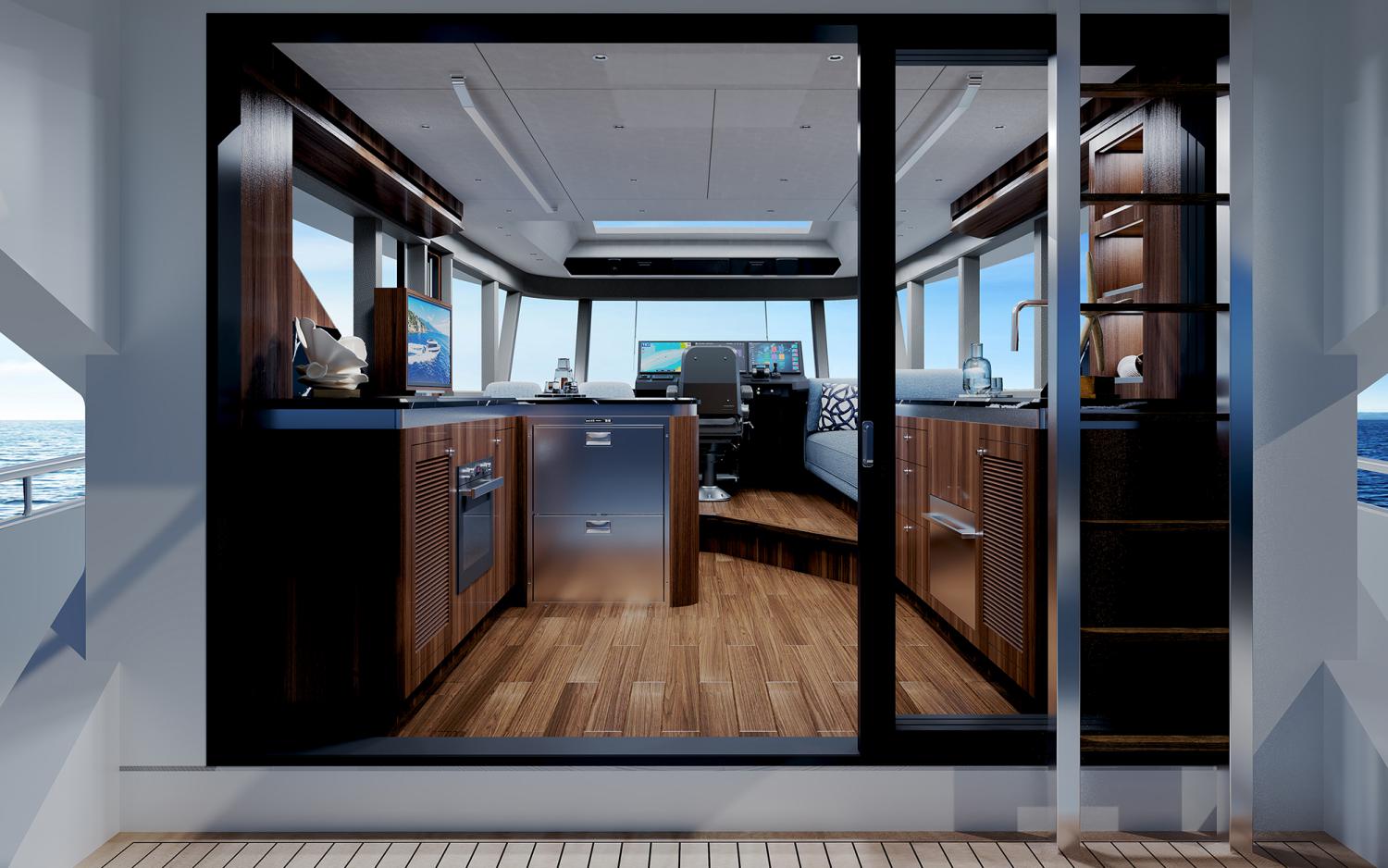

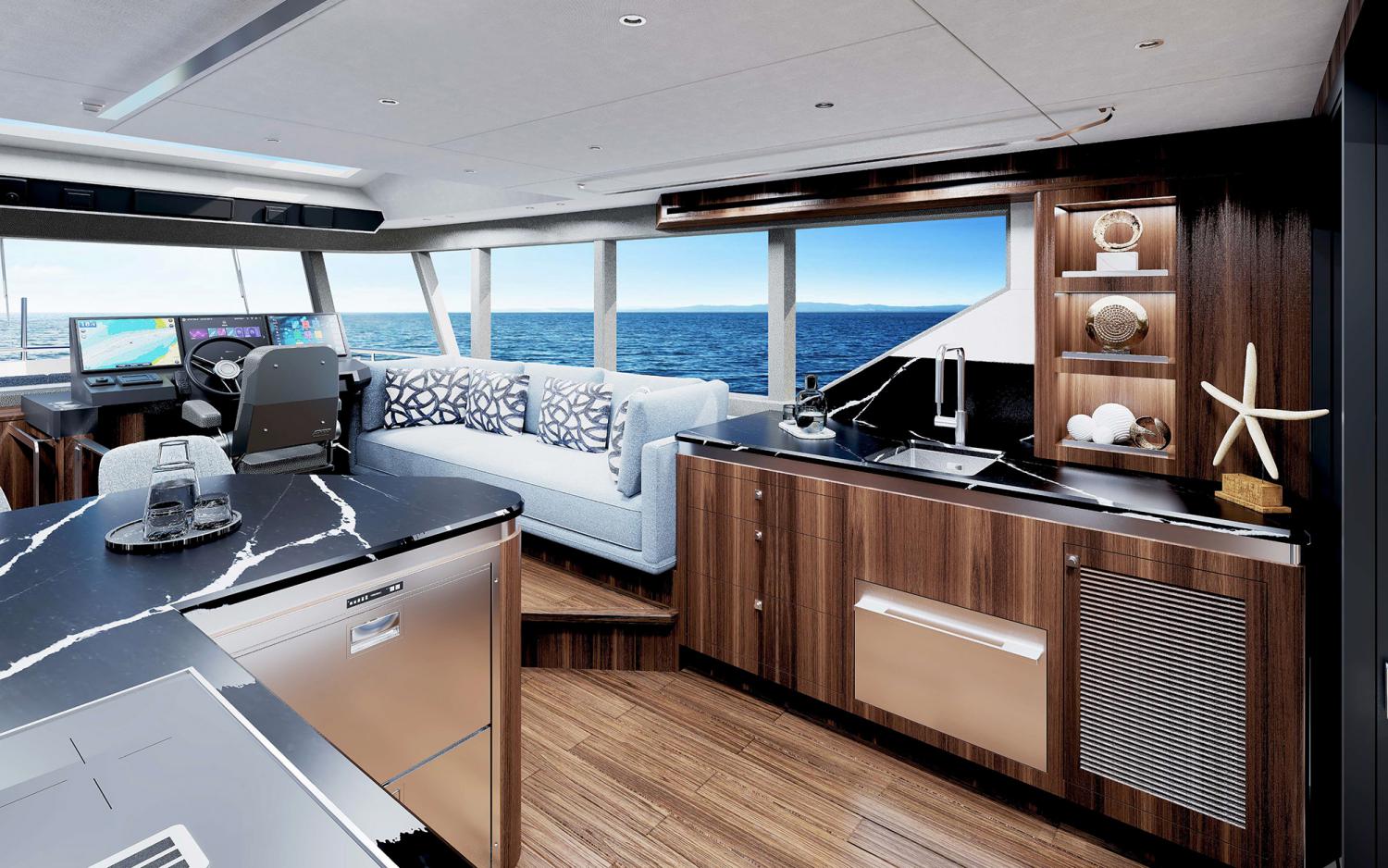

SALON/PILOTHOUSE

Fixed windows in house sides with medium 10mm tinted tempered safety glass
Wood valance over windows with LED rope lighting
Six (8) LED overhead lights with two (2) two-way switches
Vinyl headliner
Built-in L-shaped settee with 5” foam seats
Air conditioning control panel
Wood veneer cabinetry and lockers
Four (4) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Engineered wood flooring
Vinyl wall coverings
Drawers with full extension guides and push button latches
One (1) Stidd helm seat, model 500-N, naugahyde with matching powder coated base
Steering wheel at pilothouse helm
Electronic steering system
Engine display screens
Overhead electronics console
Wiring routes to facilitate equipment installation
Main electrical distribution panels with gauges and circuit breakers for AC and DC
Alarm and advisory panel
4” magnetic compass
Two (2) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
14mm clear tempered glass in forward facing windshields
Vinyl headliner
Control for bow thruster
Air conditioning control panel
Generator control panel
24v DC to 12v DC converter
Windlass up/down switch and control circuit breaker
Bilge pump control on advisory panel
Vinyl wall panels
Weathertight door opening out to port side
Engineered wood flooring

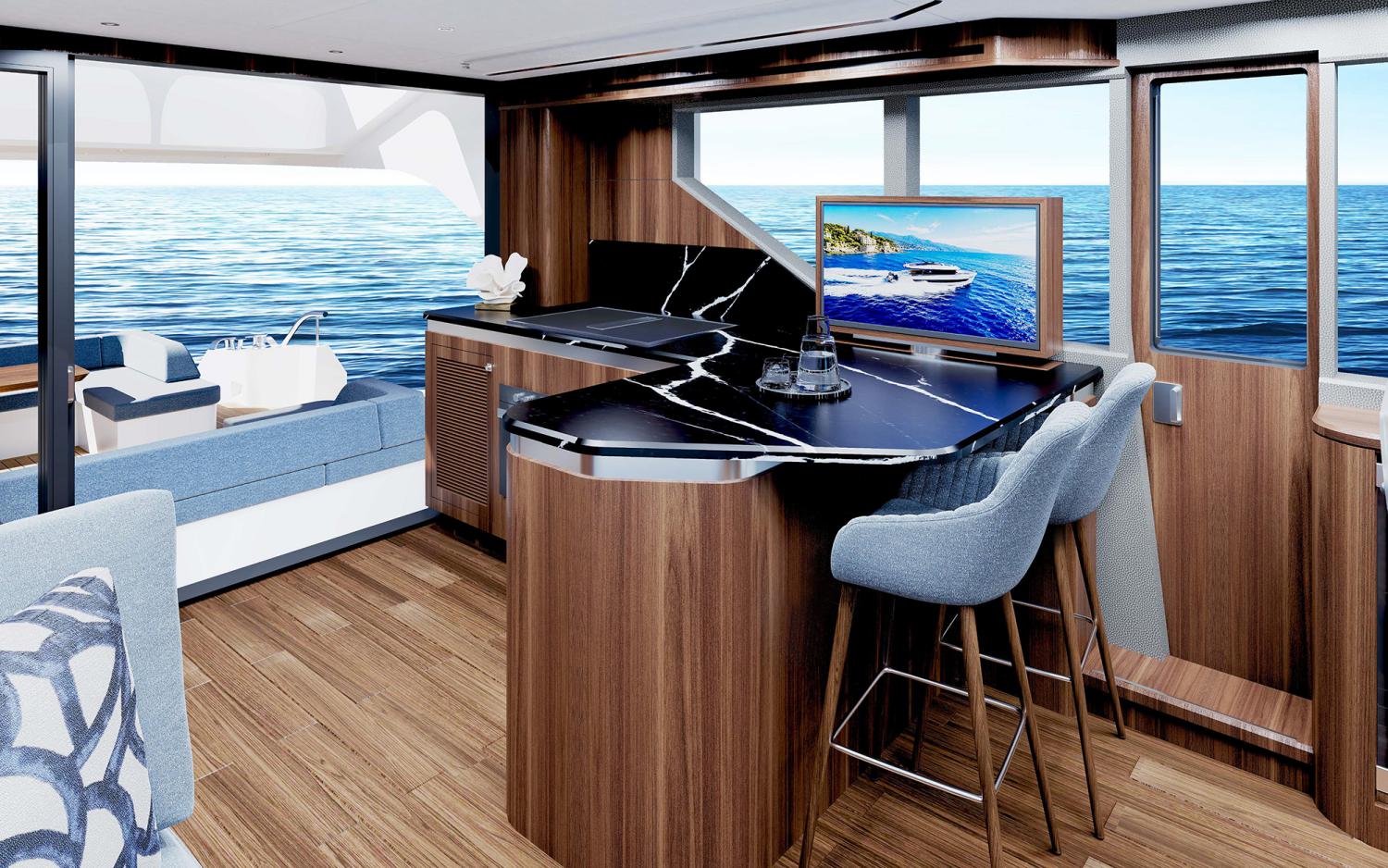

GALLEY

Corian countertops with stainless steel under mount sinks
Drawer for soap and sponges in front of the sink
Chrome Grohe Europlus II faucet with pull out spray
Seven (7) LED overhead lights with three (3) standard switches
Wood veneer cabinets and cabinet doors with chrome push-button locks
Wood veneer wall paneling with satin finish
Drawers with full extension guides and push button latches
Wood cabin doors and cabinet doors
Chrome door handles on all interior lockers
Two (2) 110v AC GFI outlets (220v AC GF for AU-EU)
Engineered wood flooring
Appliances –
24” undercounter refrigerator/freezer x 2
Fischer & Paykel single drawer dishwasher
30” electric cooktop and oven
Garbage disposal with switch
Appliances (AU-EU Model)
150L undercounter refrigerator/freezer x 2
Fisher & Paykel single drawer dishwasher
600mm touch control ceran cooktop
600mm 7-function oven
Garbage disposal with switch

LOWER HALLWAY

Curved vinyl stairway with wood strip from pilothouse with LED courtesy lights on every step and two (2) two-way switches
Two (2) LED overhead lights with two (2) two-way switches
Combination of wall covering and wood wall paneling with satin finish in stairwell and hallway
Access doors to staterooms
Engineered wood flooring

FULL BEAM MIDSHIP MASTER SUITE

King size berth
7” layered foam mattress
Drawer storage under the berth
LED rope lighting under the bed and at valance with one (1) standard switch
Hanging locker with wood-faced door
Automatic interior lights in locker
Drawers with center guides and stops
Door stops and holders
Wood framed door
Wood veneer wall paneling with satin finish or vinyl wall coverings
Imtra chrome reading lights
Three (3) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Six (6) LED overhead lights with two (2) two-way switches and one (1) standard switch
Air conditioning control panel
Nightstand tables with two drawers each
Drawers with full extension guides and push button latches
Wood cabin doors and cabinet doors
Chrome door handles on all interior lockers
Engineered wood flooring

MASTER HEAD (ENSUITE)

Ensuite head with shower
Clear tempered glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
Ventilator fan in shower
Corian countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Wood framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Wood cabin door and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
24v DC ventilator blower
One (1) 110v AC GFI outlets (220v AC GFI for AU-EU)
Four (4) LED overhead lights with two (2) standard switches
Tile floors

VIP STATEROOM FORWARD

Queen-size berth
7” layered foam mattress
Wood storage drawers under the berth
LED rope lighting at valance with one (1) standard switch
One (1) hanging locker with wood-faced doors
Automatic interior lights in locker
Wood veneer wall paneling with satin finish or vinyl wall coverings
Drawers with full extension guides and push button latches
Wood cabin doors and cabinet doors
Chrome door handles on all interior lockers
Wood framed door
Bulkheads with wood veneers or vinyl wall coverings
Two (2) 110v AC outlets (220v AC for AU-EU)
Four (4) LED overhead lights with two (2) two-way switches
Two (2) Imtra chrome reading lights
Air conditioning control panel
Engineered wood flooring

GUEST STATEROOM PORT

Over under berths with storage drawer’s underneath lower berth
7” layered foam mattress
LED rope lighting at valance with one (1) standard switch
One (1) hanging locker with wood-faced door
Cabinet for storage or optional stackable washer and dryer
Drawers with full extension guides and push button latches
Wood cabin doors and cabinet doors
Chrome door handles on all interior lockers
Automatic interior light in locker
Door stops and holders
Wood framed door
Wood veneer wall paneling with satin finish or vinyl wall coverings
One (1) 110v AC outlet (220v AC for AU-EU)
Two (2) LED overhead lights with one (1) standard switch
Air conditioning control panel
Two (2) Imtra chrome reading lights
Engineered wood flooring

GUEST HEAD

Head with shower with access doors from the VIP stateroom and lower hallway
Clear glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Coriancountertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Wood framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Wood cabin doors and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Three (3) LED overhead lights with two (2) two-way switches and one (1) standard switch
Tile flooring
