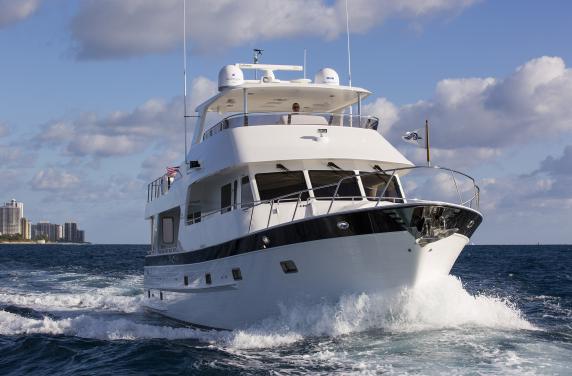

630 Motoryacht

S Class

Un fabricante de pasajes de semidesplazamiento que navega económicamente a 11 nudos, el 630 Motoryacht, ofrece una personalización completa para cualquier cliente exigente. Incluido en estas oportunidades de personalización únicas, el 630 Motoryacht ha sido apodado un 'superyate de bolsillo' despertando especial interés en los clientes que podrán elegir su preferencia de longitud de modelo de 58 ' a 63', además de personalizaciones que incluyen la instalación de espacios a la medida en: cubierta de popa, salón, cocina y carlinga.

Velocidad de crucero: 9-18 nudos
Velocidad máxima: 13-20 nudos

Eslora 63’ 1” (19.22 m)

Manga 17’ 2” (5.23 m)

Calado 4’ 10” (1.47 m)

Contáctenos

Galería de imágenes

Especificaciones Cortas

Eslora: 63’ 1” (19.22 m)
Manga: 17’ 2” (5.23 m)
Calado: 4’ 10” (1.47 m)
Desplazamiento: 99,000 lbs (45 metric tons)
Capacidad de Combustible: 1000 gallons (3785 lts)
Capacidad de Agua Fresca: 300 gallons (1135 lts)
Capacidad de Tanque de Aguas Negras: 100 gallons (378 lts)
Ver Diseños Completos
Ver especificaciones detalladas

Especificaciones completas

HULL CONSTRUCTION

Hand laid-up FRP hull with PVC core sandwich construction above water line
Solid laminate, commensurate for hull size, made in female mold
Vinylester barrier lamination for osmosis protection
Simulated planked hull
Full length longitudinal engine stringers and athwartship stringers
Gel coated finish above waterline
Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
Integrally molded rub rails with stainless steel capping
Full length keel extends below running gear
Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems
CE-approved stainless steel portlights
Boat construction from only 3 major molds
Divinycell PVC cored construction with cook gelcoat
All deck and hull area hardware attachments are finished with solid lamination - no coring
Bilge area finished smooth and coated with bright white epoxy paint
Windows with 3/8" tempered safety glass in salon and ½' tempered safety glass in pilothouse
Vessel Vanguard marine maintenance system

MECHANICAL

Side-power 10.7hp (24v) electric bow thruster with dual station controls and two (2) AGM 8dl-255 AH batteries
ABT Trac 220 stabilizers with 6.0 sq. ft. fins
Northern Lights uplift water separator exhaust system with bypass and FRP mufflers
Copper bonding system to all underwater fittings with zinc anodes
Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
Rigid fresh water pipes and color coded copper fuel lines
Stainless steel struts with bearings
Headhunter 24v DC fresh water pump with accumulator tank
Two (2) 24v DC automatic shower sump systems with external pump
Accessible wiring raceway throughout

TANKAGE

One (1) holding tank with a max capacity of 200 US gallons (757 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
One (1) stainless steel water tank with a max capacity of 300 US gallons (1135 lts)
Three (3) aluminum fuel tanks with a total capacity of 1,000 US gallons (3785 lts)
Lexan sight gauges on fuel tanks
Inspection and cleaning ports on all tanks
Fuel fills built into house sides in FRP cabinet

LAZARETTE

Edura beige coin dot flooring
Hull finished with white gloss polyurethane paint
Four (4) LED overhead lights with two (2) two-way switches
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
Formica finish on walls

ENGINE ROOM

Acoustically insulated stand-up engine room lined with sound absorbing material
Edura beige coin dot flooring
Twin John Deere 6090 (500 HP) diesel engines with ZF transmissions
Fiberglass drip pans under engines
Northern Lights generator - one (1) 20kw (60hz) w/ sound shields (one (1) 20kw (50hz) for AU-EU)
MarineAir direct expansion air conditioning system
Ball-valve bronze seacocks on all through-hulls below waterline
Oil change pump for engines and generator
One (1) 100amp isolation transformer
One (1) 3.0kw inverter/charger (24VDC to 115VAC-60Hz or 230VAC/50Hz)
Two (2) Racor 1000 MA dual fuel filters for main engines
One (1) Racor 1000 MA single fuel filters for generator
Fuel polishing system
Fuel management system
Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
Fire system and bilge high-water alarm system with warning panel
Fresh water hose bibb
AGM (Absorbed Glass Matt) batteries in FRP boxes:
- Two (2) engine banks with two (2) 8D batteries for each bank
- One (1) house bank with four (4) 8D batteries with a total 510 amp-hours (24VDC)
- One (1) generator bank with one (1) battery
One (1) 24v and one (1) 12v battery charger
Two (2) battery isolators
20 gallon water heater with heat exchanger
Four (4) 24v DC blowers
Six (6) LED overhead Lights –110v AC/24v DC (220v AC/ 24v DC for AU-EU) with two (2) two-way switches
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU) with water proof covers
316 Stainless steel safety rails around engines
Two watertight bulkheads
Watertight aluminum engine room doors with sight windows

AFT DECK AREA

Aft deck with molded white non-skid surface
FRP built-in swim platform
Stainless steel removable swim ladder on swim platform
2" 316 stainless steel removable safety rails on swim platform
Stairway built-in to port and starboard side from swim platform to aft deck with FRP gate doors
Aft deck FRP bench seating with storage beneath
Exterior furniture fabric for aft deck and Portuguese seats (deducted from décor allowance)
FRP sliding door to salon with glass window top and bottom
FRP weather tight door on transom
Transom shower in recessed box with hot and cold water supply
Fresh water wash down outlet
Shorepower inlets for 110v/220v 60hz (220v 50hz for AU-EU)
Glendinning 100 amp cable master with 75' of cable on transom
Two (2) LED courtesy lights with two (2) two-way switches
Four (4) LED overhead lights with one (1) standard switch inside the salon
One (1) 110v AC GFI outlet (220v 50hz for AU-EU)
316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
Deck scuppers piped out through transom at boot stripe
316 Stainless steel handrail to and from aft deck

SIDE DECKS

Molded with white non-skid surface
Weathertight doors opening into pilothouse port and starboard
House side fixed windows with tinted tempered glass
Two (2) sets of 316 stainless steel spring-line chocks per side
Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
Fuel fill fittings for tanks recessed into house side
316 stainless steel overhead safety rails
Four (4) LED courtesy lights along walk ways
Four (4) LED overhead lights with one (1) standard switch

PORTUGUESE BRIDGE

Portuguese bridge molded with white non-skid surface
Locker doors in aft face of Portuguese bridge
Hinged door through Portuguese bridge to foredeck
½" Clear tempered glass in forward facing windshields
Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
Three (3) LED courtesy lights with one (1) standard switch

FORE DECK

Foredeck with white non-skid surface
316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
316 Stainless steel rail on bulwarks increasing in width going forward
316 Stainless steel stanchions to support handrail
Deck lockers forward either side of anchor platform finished in white epoxy paint
316 Stainless steel anchor chute/roller at bow
60 lb plow-type anchor with 300' long 3/8" high test chain
Maxwell VWC-2500c (24v) vertical windlass with foot switches and remote controls for dual stations
Salt water wash down pump with outlet
Fresh water wash down with outlet
Salt water and fresh water 316 SS faucets inside foredeck lockers
Three (3) LED courtesy lights
Deck drains plumbed to boot-stripe to prevent black streaks

FLYBRIDGE

Exclusive Deluxbridge® full-beam width deck with white non-skid surface and ample storage space
316 stainless steel safety rails
Venturi windscreen with 316 stainless steel rails
Molded FRP steering console with engine controls
Electronics console
Glendinning engine controls
4" magnetic compass
Hypro hydraulic steering system
316 Stainless steel destroyer steering wheel
One (1) Stidd helm seat, Slimline series with powder coated base and naugahyde fabric
Fire system repeater alarm
One (1) L-shaped settee with exterior furniture fabric for cushions (deducted from décor allowance) and one (1) white FRP table to port
FRP cabinets to starboard
Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
Kahlenberg D-OA dual trumpet air horn with compressor
Two (2) 24v to 12v DC-DC converters with 12v battery back-up system
316 Stainless steel mast with bow and anchor lights
316 Stainless steel hatch and stairs starboard side down to pilothouse with five (5) LED courtesy lights and two (2) two-way switches
Four (4) LED overhead lights with one (1) standard switch
One (1) LED service light under flybridge steering console with one (1) standard switch
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
One (1) 12v DC outlet (220v 50hz for AU-EU)

BOAT DECK

Deck with white non-skid surface
316 Stainless steel hand rails
450KGS/1000lb aluminum painted davit with 4-way hydraulic control with rotating base, luff, lift, pendant switch and a 9.25' telescoping arm, with wireless remote

INTERIOR ALLOWANCE

Interior décor allowance $35,000. This is a "Use or Lose" allowance for the purchase of interior and exterior soft goods (cushion fabrics, bed covers, shams, pillows, etc). This allowance is not transferable to any designer other than Outer Reef's designated in-house designer
Three (3) Fireboy CO detectors

SALON

Sliding door entrance from aft deck
Fixed windows in house sides with medium 3/8" tinted tempered safety glass
Teak valance over windows with LED rope lighting
Ten (10) LED overhead lights with two (2) two-way switches
Access hatches to allow for engine removal
Vinyl headliner
Built-in L-shaped settee with 5" foam seats
One (1) free standing fixed teak coffee table (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
TV (optional) mounted on bulkhead between galley and salon
One (1) end table (built in)
Air conditioning control panel
Teak cabinetry and lockers
Six (6) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Carpeted floor (deducted from décor allowance)
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers

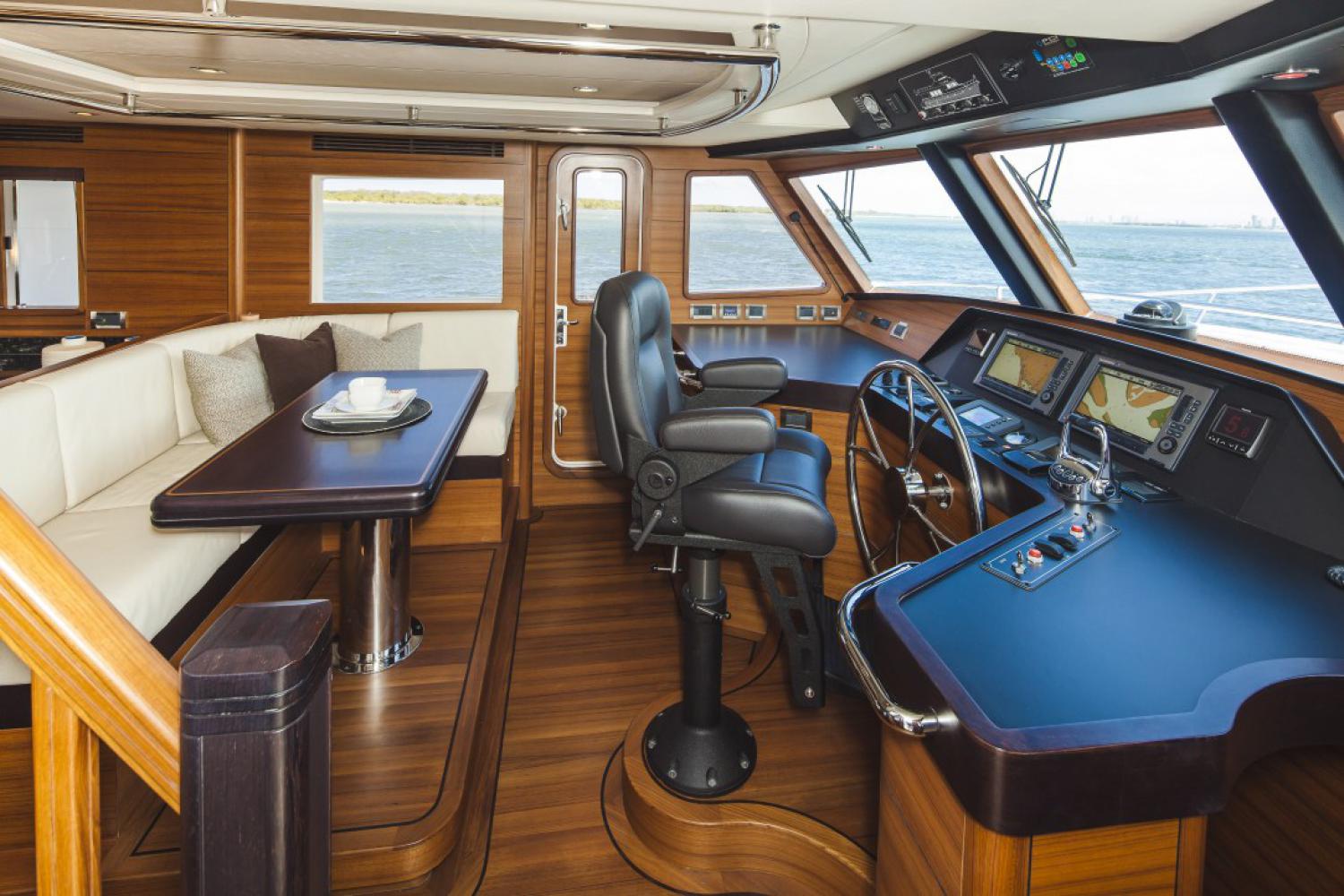

PILOTHOUSE

L-shaped settee on raised platform
Teak table with single 316 stainless steel pedestal (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
Seven (7) LED overhead lights with one (1) standard switch and two (2) two-way switches
Two (2) LED red night lights with one (1) dimmer switch
One (1) chart light
LED red and white bridge lights
Two (2) 110v AC outlets (220v AC GFI for AU-EU)
One (1) USB outlet
One (1) 12v DC outlet
One (1) Stidd helm seat, model 500-N, naugahyde with matching powder coated base
Custom Outer Reef wood steering wheel at pilothouse helm
Hypro hydraulic steering system
Engine display screens
Overhead electronics console
Wiring routes to facilitate equipment installation
Main electrical distribution panels with gauges and circuit breakers for AC and DC
Alarm and advisory panel
Transom doors on AC, DC and advisory panels
Glendinning engine controls
4" magnetic compass
½" clear tempered glass in forward facing windshields
Three (3) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
Vinyl headliner
Control for bow thruster
Air conditioning control panel
Generator control panel
24v DC to 12v DC converter
Windlass up/down switch and control circuit breaker
Bilge pump control on advisory panel
Equipment running advisory panel
Teak wall paneling with satin finish
Teak stairway to flybridge to starboard
Weathtertight doors opening out to port and starboard
Curved teak stairway leading to accommodations
Teak and holly sole

GALLEY

Corian countertops with stainless steel under mount sinks
Drawer for soap and sponges in front of the sink
Chrome Grohe Europlus II faucet with pull out spray
Nine (9) LED overhead lights with three (3) standard switches
Teak cabinets and cabinet doors with chrome push-button locks
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Two (2) 110v AC GFI outlets (220v AC GF for AU-EU)
Teak and holly sole
Corian center island if optional open galley layout is chosen
Appliances - GE Stainless Monogram Package (US Model)
- 36" counter-depth side x side refrigerator
- 18" dishwasher with stainless interior
- 30" built-in microwave
- 30" electric cooktop and oven
- 15" trash compactor
- Garbage disposal with switch
Appliances (AU-EU Model)
- 567L side x side refrigerator
- 450mm fully integrated dishwasher
- 600mm touch control ceran cooktop
- 600mm 7-function oven
- 600mm stainless steel microwave
- 380mm stainless steel automatic trash compactor
- Stainless steel garbage disposal with switch

LOWER HALLWAY

Curved teak stairway from pilothouse with five (5) LED courtesy lights and two (2) two-way switches
Three (3) LED overhead lights with two (2) two-way switches
Combination of wall covering and teak wall paneling with satin finish in stairwell and hallway
Cabinet for storage or optional stackable washer and dryer
Storage under first two steps of the stairwell below
Access doors to staterooms
Carpeted floor (deducted from décor allowance)

FULL BEAM MIDSHIP MASTER SUITE

King size berth
7" layered foam mattress
Drawer storage under the berth
LED rope lighting under the bed and at valance with one (1) standard switch
Two (2) hanging lockers with teak-faced doors with access to stabilizer gear
One (1) walk-in closet
Two (2) built in cabinets
Automatic interior lights in lockers
Drawers with center guides and stops
Door stops and holders
Teak framed door
Teak wall paneling with satin finish
Cantalupi chrome reading lights
Two (2) CE-approved portlights with removable insect screen
Three (3) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Eight (8) LED overhead lights with two (2) two-way switches and one (1) standard switch
Air conditioning control panel
Nightstand teak tables with two drawers each
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Dyson V8 Absolute vacuum cleaner
Carpeted floor (deducted from décor allowance)

MASTER HEAD

Ensuite head with shower
CE-approved portlight with removable insect screen in shower
Clear tempered glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
Ventilator fan in shower
Coarian countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
24v DC ventilator blower
One (1) 110v AC GFI outlets (220v AC GFI for AU-EU)
Five (5) LED overhead lights with two (2) standard switches
Teak and holly sole

VIP STATEROOM

316 Stainless steel CE-approved skylight
Tapered queen-size berth
7" layered foam mattress
Teak storage drawers under the berth
Two steps on each side of the berth for easy access
LED rope lighting at valance with one (1) standard switch
Two (2) hanging lockers with teak-faced doors
Automatic interior lights in lockers
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Teak framed door
Two (2) 110v AC outlets (220v AC for AU-EU)
Four (4) LED overhead lights with two (2) two-way switches
Two (2) Cantalupi chrome reading lights
Air conditioning control panel
Carpeted floor (deducted from décor allowance)

GUEST STATEROOM

CE-approved portlight with removable insect screen
Two (2) bunk berths with storage drawers underneath the bottom one
7" layered foam mattress
LED rope lighting at valance with one (1) standard switch
One (1) hanging lockers with teak-faced doors
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Automatic interior light in locker
Door stops and holders
Teak framed door
One (1) 110v AC outlet (220v AC for AU-EU)
Three (3) LED overhead lights with one (1) standard switch
Air conditioning control panel
Two (2) Cantalupi chrome reading lights
Carpeted floor (deducted from décor allowance)

GUEST HEAD

Head with shower with access doors from the VIP stateroom and lower hallway
CE-approved portlight with removable insect screen
Clear glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Corian countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Three (3) LED overhead lights with two (2) two-way switches and one (1) standard switches
Teak and holly sole

CRUISING/SAFETY PACKAGE

Six (6) 15" x 41" Polyform F-series black fenders
Twelve (12) 15' x ½" black fender lines
Four (4) 3/4" x 35' double-braid nylon black dock lines
Two (2) 3/4" x 50' double-braid nylon black dock lines
Twelve (12) Safeguard type I orange life vests for adults over 90 lbs
Six (6) Kiddie Mariner 2 ¾ lb M10 fire extinguishers
One (1) Bernard oil discharge placard (US Model Only)
One (1) Bernard waste discharge placard (US Model Only)
Two (2) Jim-Buoy 24" white ring buoys
Four (4) Perko chrome/brass 4-ring buoy holders
One (1) Orion alert/locate flare kit
One (1) Orion circumnavigator first aid kit
One (1) Orion safety blaster horn

STANDARD MARETRON PACKAGE

Engine - generator integration onto the Garmin screens
AC/DC power monitoring
Alarm
Tank level monitoring
Wi-Fi interface
Engine exhaust, transmission and SeaTorque shaft temperature monitoring
8” Maretron screen in the crew area (where applicable)
Navigation lights, bilge pump monitors
All monitors projected onto the Garmin screens
Further information available upon request

Contáctenos

Videos del 630 Motoryacht

630 Motoryacht Guias Virtuales

Haga clic en uno de los botones a continuación para obtener una vista previa de uno de nuestros Recorridos Virtuales.

Open Ken Freivokh Design Virtual Tour Abrir Guias Virtual

Noticias Sobre EL 630 Motoryacht

The Exceptional Outer Reef 630 Classic Motoryacht

January 03, 2024

This new year, embark on a virtual tour of the exceptional Outer Reef 630 Classic Motoryacht, a semi-displacement passage maker that seamlessly cruises at an economical 1...

Sedes Globales

630 Motoryacht

Galería de imágenes

Especificaciones Cortas

Especificaciones completas

Construcción del Casco

Mecánica/plomería

Exterior/Cubiertas

Interior/Alojamiento

Paquete Crucero/Seguridad

Más

Contáctenos

Videos del 630 Motoryacht

630 Motoryacht Guias Virtuales

Noticias Sobre EL 630 Motoryacht

The Exceptional Outer Reef 630 Classic Motoryacht

Unique Customization Opportunities With the Outer Reef 630 Motoryacht

Falcon 9 Launch Captured from Outer Reef CALYPSO

Outer Reef PAKIRI is the Belle of the Ball at 2022 Cannes Yachting Festival

Visit the Outer Reef 630 Motoryacht at the 2022 Cannes Yachting Festival

Outer Reef Virtual Tour Series - 630 Motoryacht

Perfect Opportunity! Beautiful European 630 Outer Reef For Sale

New Walkthrough Video! 2017 630 Outer Reef Motoryacht

630 Motoryacht ICEBERG Shines Against a Stormy Background

Outer Reef 630 In South Of France

PAKIRI Receives TLC in the South of France

Newest 630 Motoryacht Arriving in San Remo Italy

New Outer Reef 630 Motoryacht Offloaded in the Mediterranean

Another Outer Reef 630 Motoryacht Shipping to New Owners

The Stunning 630 Motoryacht PAKIRI Has No Need To Refuel All Season

Another Outer Reef 630 Classic Coming To Life

Outer Reef Yacht’s Attends 2018 Cannes Yachting Festival

Congrats to New European-Based Clients Starting 630MY Build Process

Outer Reef Yachts Sales Director Visits Antibes Location For Cruising Season Preparation

One Little-Big Reason New 630 Owners Chose Outer Reef

2017 Cannes Show a Resounding Success

Day Cruising in Cote D’Azur

Newly Commissioned 630 Outer Reef Classic Motoryacht

New Outer Reef 630 Motoryacht Offloads in Europe

New Outer Reef Classic 19 Meter (63’) Heading to Europe

Outer Reef Yachts participated in Australia’s 28th Sanctuary Cove International Boat Show

Outer Reef Yachts displaying 630 MY at 2016 Sanctuary Cove Int'l Boat Show

Newport Boat Show

Our Latest Model, 63 Motoryacht, Debuts at the Sydney International Boat Show

Extractos de Revistas del 630 Motoryacht

630 MY

630 MY

630 MY

630 MY

630 MY

630 MY

Testimonios del 630 Motoryacht

Delighted to Work With Outer Reef

Outer Reef Ticked All the Boxes

Outer Reef 630 Met the Criteria Perfectly

Crossing Cape Hatteras in a Raging Storm

Arrival of Our New Outer Reef 630
