860 Cockpit Motoryacht

X Class

Este impresionante yate a motor con cabina de pilotaje galardonado cuenta con una variedad de características creadas pensando en el propietario activo, e incluye un lujo sin precedentes para garantizar la comodidad de su fiesta. Con la posibilidad de personalización el interior por nuestro equipo de diseño interno, se mejora el estilo personal y la navegación de largo alcance nunca se ha adaptado tanto a sus deseos de navegación.

Velocidad de crucero: 9-22 nudos
Velocidad máxima: 14-25 nudos

Eslora 85’ 8” (26.11 m)

Manga 21’ 0” (6.4 m)

Calado 5’ 6” (1.67 m)

Contáctenos

Especificaciones Cortas

Eslora: 85’ 8” (26.11 m)

Manga: 21’ 0” (6.4 m)

Calado: 5’ 6” (1.67 m)

Desplazamiento: 192,000 lbs (87 metric tons)

Capacidad de Combustible: 3,000 gallons (11356 lts)

Capacidad de Agua Fresca: 500 gallons (1893 lts)

Capacidad de Tanque de Aguas Negras: 250 gallons (946 lts)

Ver Diseños Completos

Especificaciones completas

HULL CONSTRUCTION

Hand laid-up FRP hull with PVC core sandwich construction above water line
Solid laminate, commensurate for hull size, made in female mold
Vinylester barrier lamination for osmosis protection
Simulated planked hull
Full length longitudinal engine stringers and athwartship stringers
Gel coated finish above waterline
Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
Integrally molded rub rails with stainless steel capping
Full length keel extends below running gear
Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems
CE-approved stainless steel portlights
Boat construction from only 3 major molds
Divinycell PVC cored construction with cook gelcoat
All deck and hull area hardware attachments are finished with solid lamination – no coring
Bilge area finished smooth and coated with bright white epoxy paint
Windows with 3/8" tempered safety glass in salon and ½' tempered safety glass in pilothouse
Quiet Roll™ integrated spray rail system
Vessel Vanguard marine maintenance system

MECHANICAL

ABT Trac 38hp hydraulic bow and stern thrusters
ABT Trac 250 stabilizers with 7.5 sq. ft. fins
Northern Lights uplift water separator exhaust
Underwater exhaust system with bypass and FRP mufflers
Copper bonding system to all underwater fittings with zinc anodes
Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
Rigid fresh water pipes and color coded copper fuel lines
Stainless steel struts with bearings
Headhunter 24v DC and Mach-5 115v AC fresh water pumps with accumulator tanks
Two (2) 24v DC automatic shower sump systems with external pump
Accessible wiring raceway throughout

TANKAGE

One (1) holding tank with a max capacity of 250 US gallons (946 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
One (1) stainless steel water tank with a max capacity of 500 US gallons (1893 lts)
Three (3) aluminum fuel tanks with a total capacity of 3,000 US gallons (11356 lts)
Lexan sight gauges on fuel tanks
Inspection and cleaning ports on all tanks
Fuel fills built into house sides in FRP cabinet

ENGINE ROOM

Acoustically insulated stand-up engine room lined with sound absorbing material
Edura beige coin dot flooring
Twin John Deere 6135 (750 hp) diesel engines with ZF transmissions
Fiberglass drip pans under engines
Northern Lights generator – one (1) 30kw (60hz) w/ sound shields (one (1) 24kw (50hz) for AU-EU)
MarineAir chilled water air conditioning system
Two (2) sea chests
Ball-valve bronze seacocks on all thENGINE Rrough-hulls below waterline located in sea chests
Oil change pump for engines and generators
Two (2) 100amp isolation transformers
5 kw inverter/charger (24v DC to 115v AC 60Hz) (5 kw inverter/charger 24v DC to 220v AC 50Hz for AEU)
Two (2) Racor 75/1000 max dual fuel filters with gauges for main engines
Two (2) Racor 75/1000 max single fuel filters for generators
Fuel polishing system
Fuel management system
Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
Fire system and bilge high-water alarm system with warning panel
Fresh water hose bibb
AGM (Absorbed Glass Matt) batteries in FRP boxes:
- Two (2) engine banks with two (2) 8D batteries for each bank
- One (1) house bank with eight (8) 8D batteries with a total 1020 amp-hours (24VDC)
- Two (2) generator banks with one (1) battery each
One (1) 24v and one (1) 12v battery charger
Two (2) battery isolators
Two (2) 20 gallon water heaters with heat exchanger off one main engine
Four (4) 24v DC blowers
Eight (8) LED overhead Lights –110v AC/24v DC (220v AC/ 24v DC for AU-EU) with two (2) two-way switches
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU) with water proof covers
316 Stainless steel safety rails around engines
Work bench space
Two watertight bulkheads
Watertight aluminum engine room doors with sight windows

COCKPIT

Cockpit with teak decking
FRP built-in swim platform with teak decking
6' sports cockpit with storage hatch
Gate door from the swim platform
Stainless steel removable swim ladder on swim platform
2" 316 stainless steel removable safety rails on swim platform
FRP weather tight door on transom
Deck scuppers piped out through transom at boot stripe
Transom shower in recessed box with hot and cold water supply
Fresh water wash down outlet
One (1) LED courtesy light with two (2) two-way switches
Two (2) Glendinning 100 amp cable master's with 75' of cable on transom

AFT DECK AREA

Aft deck with teak decking
Aft deck FRP bench seating with storage beneath
Fixed aft deck table – teak with stainless steel bases (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
Exterior furniture fabric for aft deck and Portuguese seats (deducted from décor allowance)
FRP sliding door to salon with glass window top and bottom
Shorepower inlets for 110v/220v 60hz (220v 50hz for AU-EU)
Glendinning electronic engine controls via hand held remote
Six (6) LED courtesy lights with two (2) two-way switches
Five (5) LED overhead lights with one (1) standard switch inside the salon
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
316 Stainless steel handrail to and from aft deck

SIDE DECKS

Molded with teak decking
Stainless steel handrails alongside decks
Weathertight doors opening into pilothouse port and starboard
House side fixed windows with tinted tempered glass
Two (2) sets of 316 stainless steel spring-line chocks per side
Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
Fuel fill fittings for tanks recessed into house side
316 stainless steel overhead safety rails at side steps
Four (4) LED courtesy lights along walk ways
Eight (8) LED overhead lights with two (2) standard switches

PORTUGUESE BRIDGE

Portuguese bridge molded with teak decking
Locker doors in aft face of Portuguese bridge
316 Stainless steel handrail on top of Portuguese bridge
Hinged door through Portuguese bridge to foredeck
½" Clear tempered glass in forward facing windshields
Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
Three (3) LED courtesy lights with one (1) standard switch

FORE DECK

Foredeck with white non-skid surface
316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
316 Stainless steel rail on bulwarks increasing in width going forward
316 Stainless steel stanchions to support handrail
Deck lockers forward either side of anchor platform finished in white epoxy paint
316 Stainless steel anchor chute/roller at bow
105 lb plow-type anchor with 350' long 1/2" high test chain
Maxwell VWC-4000 Hydraulic vertical windlass with foot switches and remote controls for dual stations
Salt water wash down pump with outlet
Fresh water wash down with outlet
Salt water and fresh water 316 SS faucets inside foredeck lockers
Three (3) LED courtesy lights
One (1) 110v AC GFI outlet (220v 50hz for AU-EU) in inside settee
Deck drains plumbed to boot-stripe to prevent black streaks

FLYBRIDGE

Exclusive Deluxbridge® full-beam width deck with white non-skid surface and ample storage space
316 Stainless steel safety rails
Venturi windscreen with 316 stainless steel rails
Molded FRP steering console with engine controls
Electronics console
Glendinning electronic engine controls
5" magnetic compass
Hypro hydraulic power assist steering system
316 Stainless steel destroyer steering wheel
One (1) Stidd helm seat, model 500-200, naugahyde with matching powder coated base
ACR 300 24v DC searchlight with dual station controls
Fire system repeater alarm
Two (2) L-shaped settees with exterior furniture fabric for cushions (deducted from décor allowance) and two (2) tables
Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
Kahlenberg D-2 dual trumpet air horn with compressor
FRP radar mast
Hard top over flybridge
316 Stainless steel mast with bow and anchor lights
316 Stainless steel sliding hatch and stairs starboard side down to pilothouse with four (4) LED courtesy lights and two (2) twoway switches
Six (6) LED overhead lights with one (1) standard switch
Two (2) LED service lights under flybridge steering console with one (1) standard switch
One (1) LED courtesy light on step down to boat deck
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
One (1) 12v DC outlet (220v 50hz for AU-EU)
Gate door to boat deck

BOAT DECK

Deck with white non-skid surface
316 Stainless steel hand rails
Deck box on port side
Cabinets behind settees for wash basin, refrigerator, icemaker and/or BBQ grill
800KGS/1700lb aluminum painted davit with 4 way hydraulic control with rotating base, luff, lift, pendant switch and a 12' telescoping arm, with wireless remote
Swing gates forward of optional dinghy with 1 ½" stainless steel pipe

INTERIOR ALLOWANCE

Interior décor allowance $80,000. This is a "Use or Lose" allowance for the purchase of interior and exterior soft goods (cushion fabrics, bed covers, shams, pillows, etc). This allowance is not transferable to any designer other than Outer Reef's designated in house designer
Three (3) Fireboy CO detectors

SALON

Sliding door entrance from aft deck
Fixed windows in house sides with medium 3/8" tinted tempered safety glass
Teak valance over windows with LED rope lighting
Twelve (12) LED overhead lights with two (2) two-way dimmer switches and one (1) standard dimmer switch
LED rope lighting at valance with one (1) standard switch
Access hatches to allow for engine removal
Vinyl headliner
One (1) free standing fixed teak coffee table (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
Entertainment center cabinet starboard with additional storage cabinets
Loose-laid furniture (deducted from décor allowance)
Two (2) end tables (built in)
Air conditioning control panel
Teak cabinetry and lockers
Six (6) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Carpeted floor (deducted from décor allowance)
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers

GALLEY

Granite or corian countertops with stainless steel under mount sinks
Breakfast bar attached to galley counter facing forward
Drawer for soap and sponges in front of the sink
Chrome Grohe Europlus II faucet with pull out spray
Eight (8) LED overhead lights with two (2) standard switches and one (1) two-way dimmer switch
Teak cabinets and cabinet doors with chrome push-button locks
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Two (2) 110v AC GFI outlets (220v AC GF for AU-EU)
Teak and holly sole
Appliances – GE Stainless Monogram Package (US Model)
- 36" counter-depth side x side refrigerator
- 24" dishwasher with stainless interior
- 30" built-in microwave
- 30" electric cooktop
- 30" built-in oven
- 15" trash compactor
- Garbage disposal with switch
Appliances (AU-EU Model)
- 606L side x side refrigerator with IceBeam door cooling
- 600mm fully integrated dishwasher
- 600mm touch control ceran cooktop
- 600mm slide-out range hood
- 600mm 65L stainless steel oven with full glass
- 600mm stainless steel microwave
- 380mm stainless steel automatic trash compactor
- Stainless steel garbage disposal with switch

DAY HEAD (STARBOARD)

Granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror
Storage cabinet under sink
Wallcovering
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
Ventilator blower
One (1) 110v AC GFI outlet (220v AC GF for AU-EU)
Two (2) LED overhead lights with one (1) standard switch
Teak and holly sole

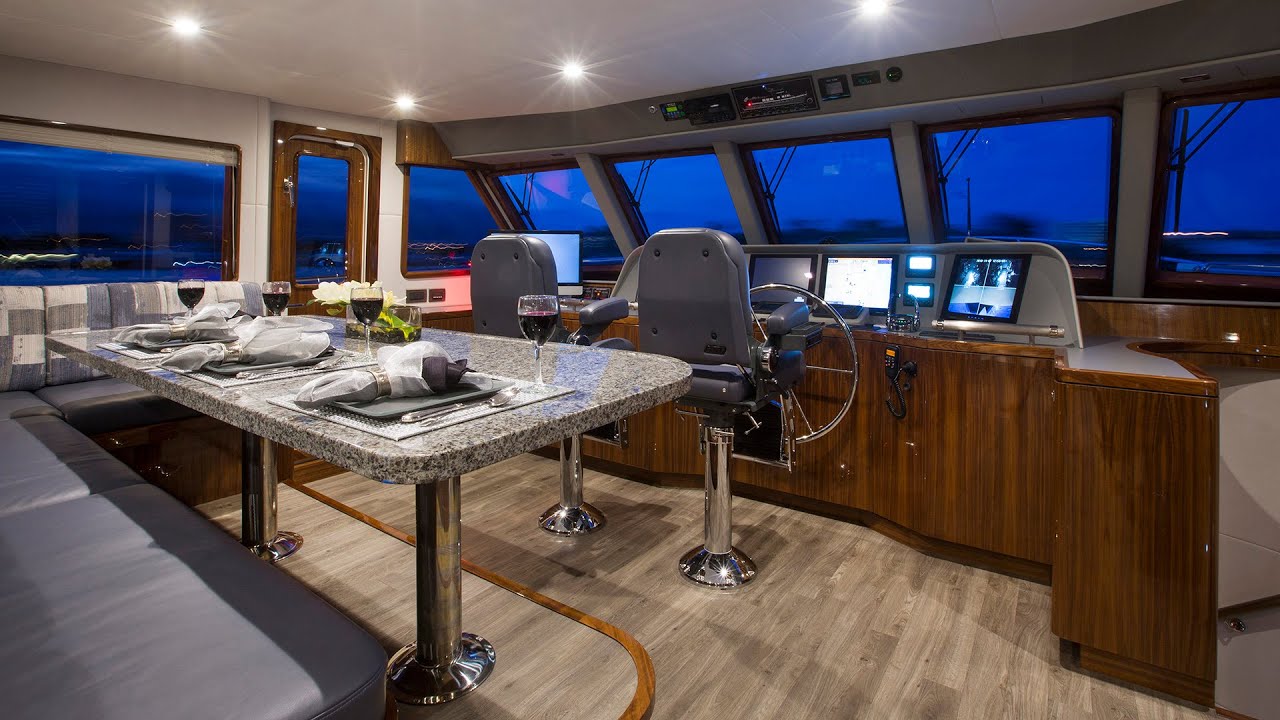

PILOTHOUSE

U-shaped settee on raised platform
Teak table with single 316 stainless steel pedestal (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
Nine (9) LED overhead lights with one (1) standard switch, one (1) dimmer switch and two (2) two-way dimmer switches
Two (2) LED red night lights with one (1) dimmer switch
One (1) chart light
LED red and white bridge lights
Two (2) 110v AC outlets (220v AC GFI for AU-EU)
One (1) USB outlet
One (1) 12v DC outlet
One (1) Stidd helm seat, model 500-200, naugahyde with matching powder coated base
Custom Outer Reef wood steering wheel at pilothouse helm
Hypro power steering system
Engine display screens
Overhead electronics console
Wiring routes to facilitate equipment installation
Main electrical distribution panels with gauges and circuit breakers for AC and DC
Alarm and advisory panel
Transom doors on AC, DC and advisory panels
Glendinning electronic engine controls with back up gear and throttle with synchronizer
5" magnetic compass
Three (3) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
½" clear tempered glass in forward facing windshields
Vinyl headliner
Control for bow thruster
Air conditioning control panel
Generator control panel
24v DC to 12v DC converter
Windlass up/down switch and control circuit breaker
Bilge pump control on advisory panel
Equipment running advisory panel
Teak wall paneling with satin finish
Teak stairway to flybridge to starboard
Weathtertight doors opening out to port and starboard
Curved teak stairway leading to accommodations
Teak and holly sole

LOWER HALLWAY

Curved teak stairway from pilothouse with five (5) LED courtesy lights and two (2) two-way switches
Five (5) LED overhead lights with two (2) two-way switches and one (1) standard switch
Combination of wall covering and teak wall paneling with satin finish in stairwell and hallway
Cabinet for storage or optional stackable washer and dryer
Storage under first two steps of the stairwell below
Access doors to staterooms
Carpeted floor (deducted from décor allowance)

FULL BEAM MIDSHIP MASTER STATEROOM

King size berth
7" layered foam mattress
Drawer storage under the berth
LED rope lighting under the bed and at valance with one (1) standard switch and two (2) two-way dimmer switches
Two (2) walk-in closets
Six (6) built in cabinets
Automatic interior lights in lockers
Two (2) built-in vanity desks on each side of the stateroom with drawers
Drawers with center guides and stops
Door stops and holders
Teak framed door
Teak wall paneling with satin finish
Cantalupi chrome reading lights
Four (4) CE-approved portlights with removable insect screen
Shoji screens
Five (5) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Nine (9) LED overhead lights with three (3) three-way dimmer switches, two (2) two-way dimmer switches and one (1) standardswitch
Air conditioning control panel
Nightstand teak tables with two drawers each
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Carpeted floor (deducted from décor allowance)
Dyson V8 Absolute vacuum cleaner

MASTER HEAD (ENSUITE)

Ensuite head with shower
Clear tempered glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
Ventilator fan in shower
Granite countertop with two (2) white Kohler under-mount sinks
Chrome Grohe center-set single lever faucet at sinks
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
24v DC ventilator blower
Two (2) 110v AC GFI outlets (220v AC GFI for AU-EU)
Five (5) LED overhead lights with three (3) standard switches
Teak and holly sole
Separate compartmented toilet area with CE-approved portlight

VIP STATEROOM FORWARD

316 Stainless steel CE-approved skylight
Shoji screens
Tapered queen-size berth
7" layered foam mattress
Teak storage drawers under the berth
Two steps on each side of the berth for easy access
LED rope lighting under the bed and at valance with one (1) standard switch
Two (2) hanging lockers with teak-faced doors
Automatic interior lights in lockers
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Teak framed door
Two (2) 110v AC outlets (220v AC for AU-EU)
Five (5) LED overhead lights with two (2) two-way dimmer switches and one (1) standard dimmer switch
Two (2) Cantalupi chrome reading lights
Air conditioning control panel
Carpeted floor (deducted from décor allowance)

VIP HEAD (ENSUITE)

Ensuite head with shower
Clear glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Three (3) LED overhead lights with two (2) standard switches
Teak and holly sole

GUEST STATEROOM PORT

Two (2) CE-approved portlights with removable insect screens
Shoji screens
Two (2) twin berths with storage drawers underneath
7" layered foam mattresses
One (1) built-in nightstand
LED rope lighting at valance with one (1) standard switch
One (1) hanging locker with teak-faced doors
Automatic interior light in locker
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Door stops and holders
Teak framed door
Two (2) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Two (2) LED overhead lights with one (1) two-way switch and one (1) two-way dimmer switch
Air conditioning control panel
Two (2) Cantalupi chrome reading lights
Carpeted floor (deducted from décor allowance)

PORT HEAD (ENSUITE)

Ensuite head with shower
Clear glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Three (3) LED overhead lights with two (2) standard switches
Teak and holly sole

CREW STATEROOM AFT

One (1) CE-approved portlights with removable insect screens
Two (2) transverse berths, one (1) twin and one (1) queen, with storage drawers underneath
7" layered foam mattresses
One (1) hanging locker with teak-faced doors
Automatic interior light in locker
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Door stops and holders
Teak framed door
LED rope lighting under bed with one (1) standard switch
Two (2) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Six (6) LED overhead lights with two (2) two-way switches and two (2) standard switches
Air conditioning control panel
Carpeted floor (deducted from décor allowance)
Steps leading to transom

CREW GALLEY

L-shaped settee on raised platform
Teak table with single 316 stainless steel pedestal (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
Granite or corian countertops with stainless steel under mount sinks
Drawer for soap and sponges in front of the sink
Chrome Grohe Europlus II faucet with pull out spray
Five (5) LED overhead lights with two (2) standard switches
Teak cabinets and cabinet doors with chrome push-button locks
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
One (1) 110v AC GFI outlet (220v AC GF for AU-EU)
Two (2) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Teak and holly sole
Appliances
- Undercounter refrigerator
- 12" electric cooktop
- 30" built-in convection microwave
Room behind galley with storage cabinets and room for optional washer and dryer

CREW HEAD

Clear glass shower door with towel bar
Molded white FRP shower
One (1) CE-approved portlight with removable insect screen
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Four (4) LED overhead lights with two (2) standard switches and two (2) two-way switches
Teak and holly sole

CRUISING/SAFETY PACKAGE

Six (6) 15" x 41" Polyform F-series black fenders
Twelve (12) 15' x ½" black fender lines
Four (4) 3/4" x 35' double-braid nylon black dock lines
Two (2) 3/4" x 50' double-braid nylon black dock lines
Twelve (12) Safeguard type I orange life vests for adults over 90 lbs
Six (6) Kiddie Mariner 2 ¾ lb M10 fire extinguishers
One (1) Bernard oil discharge placard (US Model Only)
One (1) Bernard waste discharge placard (US Model Only)
Two (2) Jim-Buoy 24" white ring buoys
Four (4) Perko chrome/brass 4-ring buoy holders
One (1) Orion alert/locate flare kit
One (1) Orion circumnavigator first aid kit
One (1) Orion safety blaster horn

STANDARD MARETRON PACKAGE

Engine - generator integration onto the Garmin screens
AC/DC power monitoring
Alarm
Tank level monitoring
Wi-Fi interface
Engine exhaust, transmission and SeaTorque shaft temperature monitoring
8” Maretron screen in the crew area (where applicable)
Navigation lights, bilge pump monitors
All monitors projected onto the Garmin screens
Further information available upon request

Sedes Globales

860 Cockpit Motoryacht

Galería de imágenes

Especificaciones Cortas

Especificaciones completas

Contáctenos

Video del 860 Cockpit Motoryacht
