HULL CONSTRUCTION

• Hand laid-up FRP hull with PVC core sandwich construction above water line
• Solid laminate, commensurate for hull size, made in female mold
• Vinylester barrier lamination for osmosis protection
• Simulated planked hull
• Full length longitudinal engine stringers and athwartship stringers
• Gel coated finish above waterline
• Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
• Integrally molded rub rails with stainless steel capping
• Full length keel extends below running gear
• Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems
• CE-approved stainless steel portlights
• Boat construction from only 3 major molds
• Divinycell PVC cored construction with cook gelcoat
• All deck and hull area hardware attachments are finished with solid lamination – no coring
• Bilge area finished smooth and coated with bright white epoxy paint
• Windows with 3/8” tempered safety glass in salon and ½’ tempered safety glass in pilothouse
• Eligible for CE Certification for European compliance (at Buyer’s expense)

COCKPIT

• 5’ teak sports cockpit with storage hatch
• Gate door from the swim platform
• Hydraulic swim platform
• Stainless steel removable swim ladder on swim platform
• 2” 316 stainless steel removable safety rails on swim platform
• FRP weather tight door on transom
• Deck scuppers piped out through transom at boot stripe
• Transom shower in recessed box with hot and cold water supply
• Fresh and salt water bib in recessed box
• Eight (8) Aqualuma 6 Series underwater lights
• Five (5) Attwood rod holders

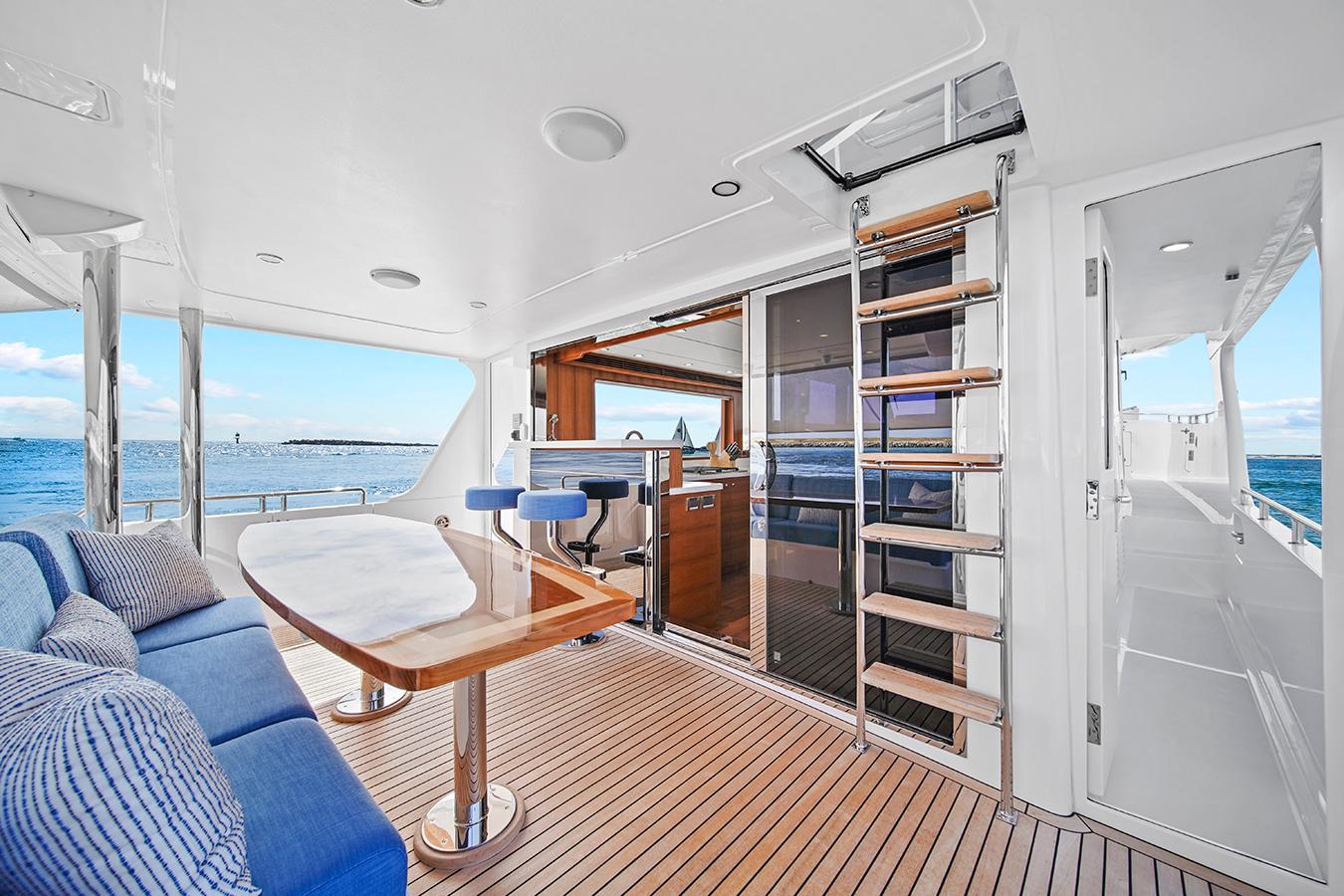

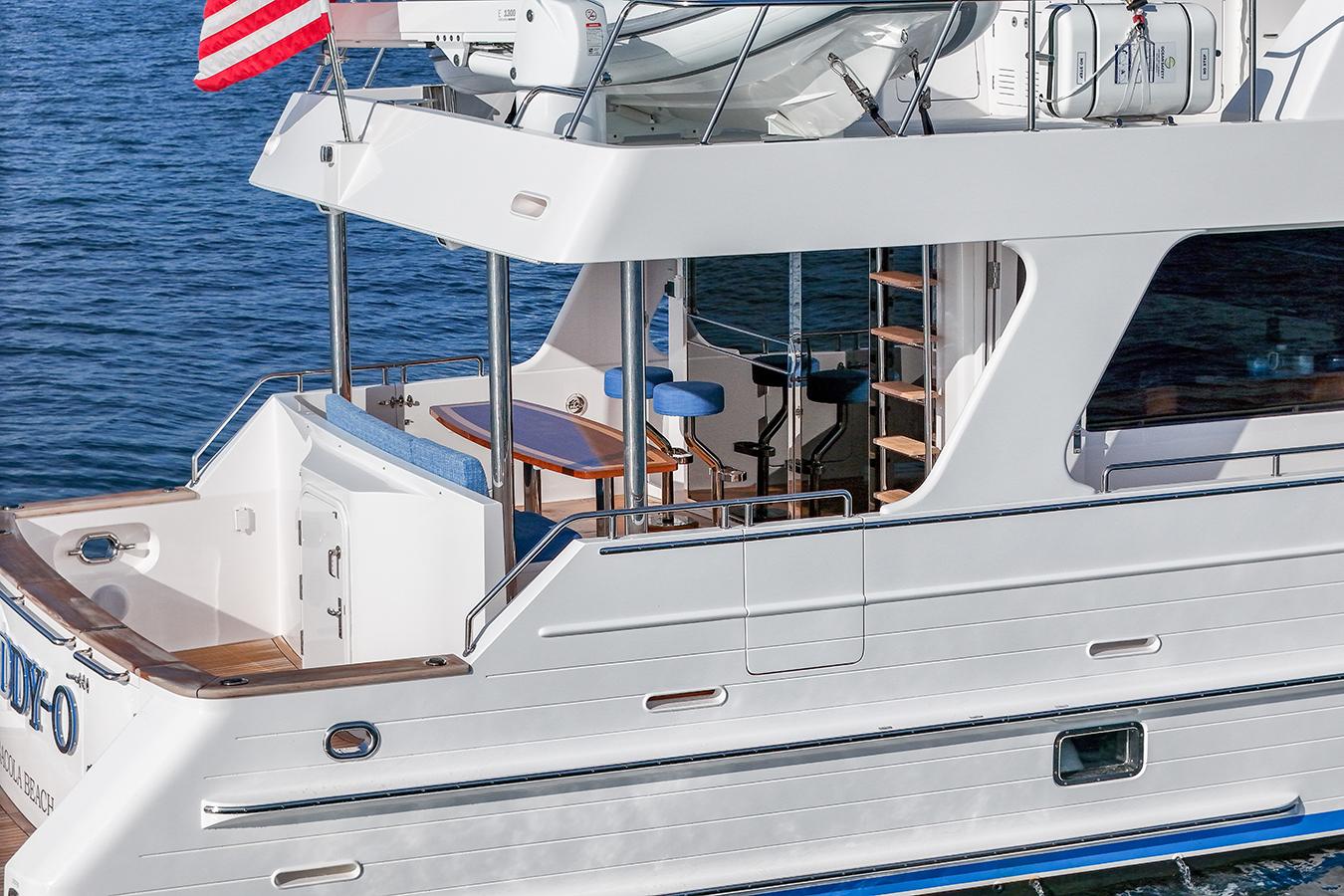

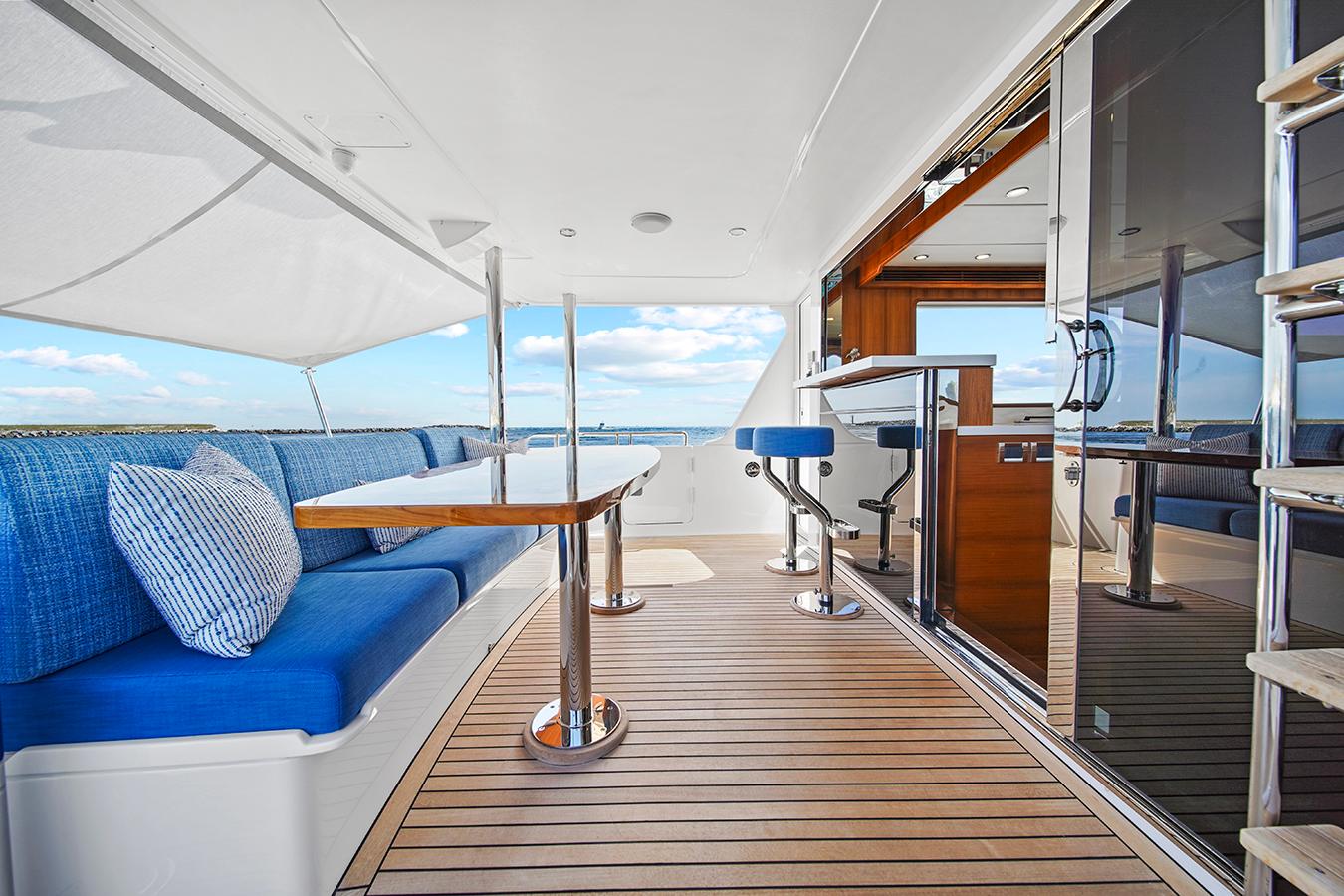

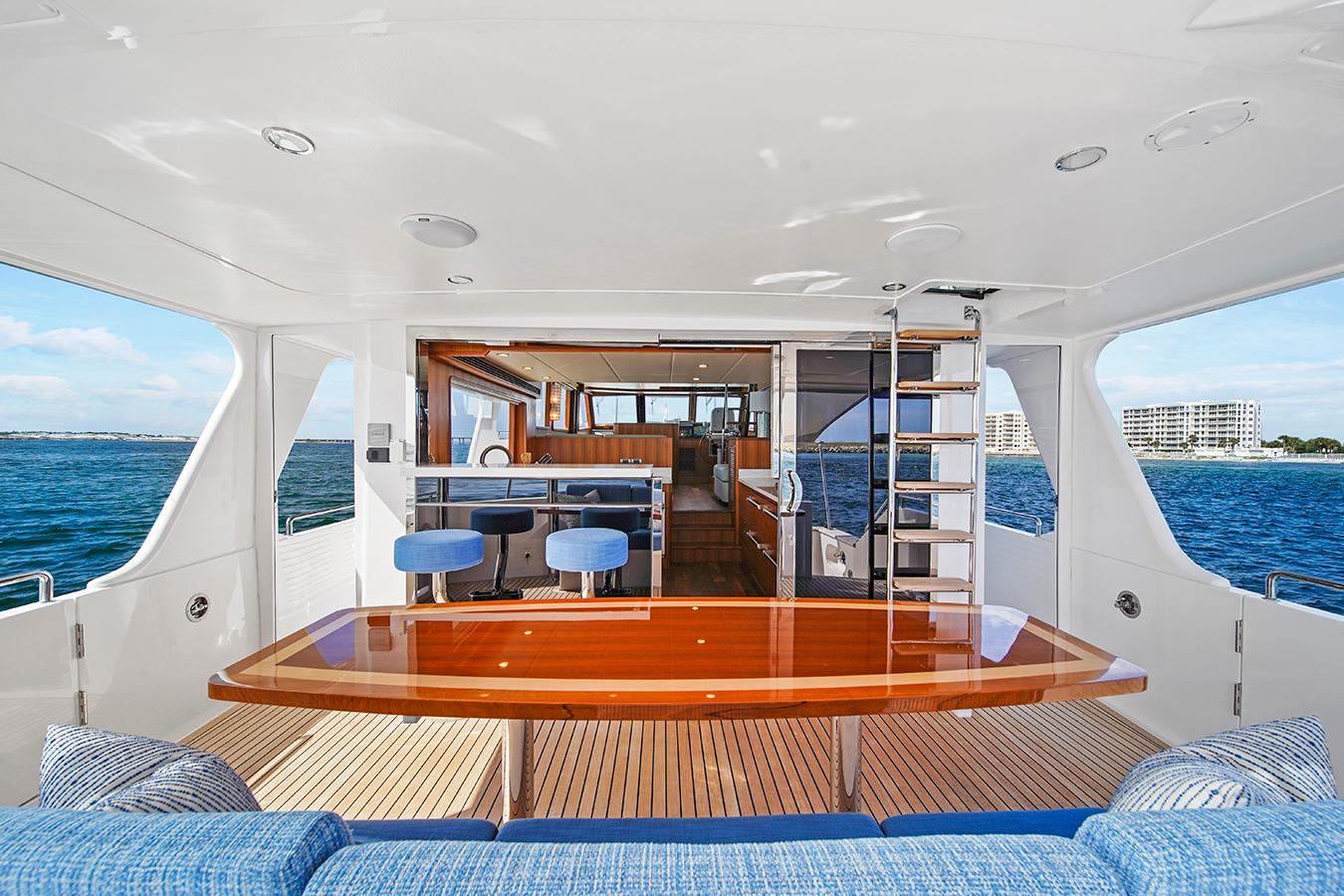

AFT DECK AREA

• Aft deck with molded teak surface
• Stairway built-in to port and starboard side from swim platform to aft deck with FRP gate doors
• Aft deck wing doors port and starboard
• Aft deck FRP bench seating with storage beneath
• Sliding teak table
• Wet bar
• Two (2) deck mounted bar stools
• Custom sliding counter with Silestone top between galley and aft deck
• Shorepower inlets for 110v/220v 60hz
• Glendinning 100 amp cable master with 75’ of cable on transom
• LED overhead and courtesy lights
• Two (2) LED working lights on aft deck overhang to light cockpit/swim platform
• 316 stainless steel heavy-duty cleats secured to stainless steel backing plates inside bulwarks
• Deck scuppers piped out through transom at boot stripe
• 316 Stainless steel handrails to and from aft deck
• Stainless steel sloped ladder to flybridge
• Glendinning handheld remote control

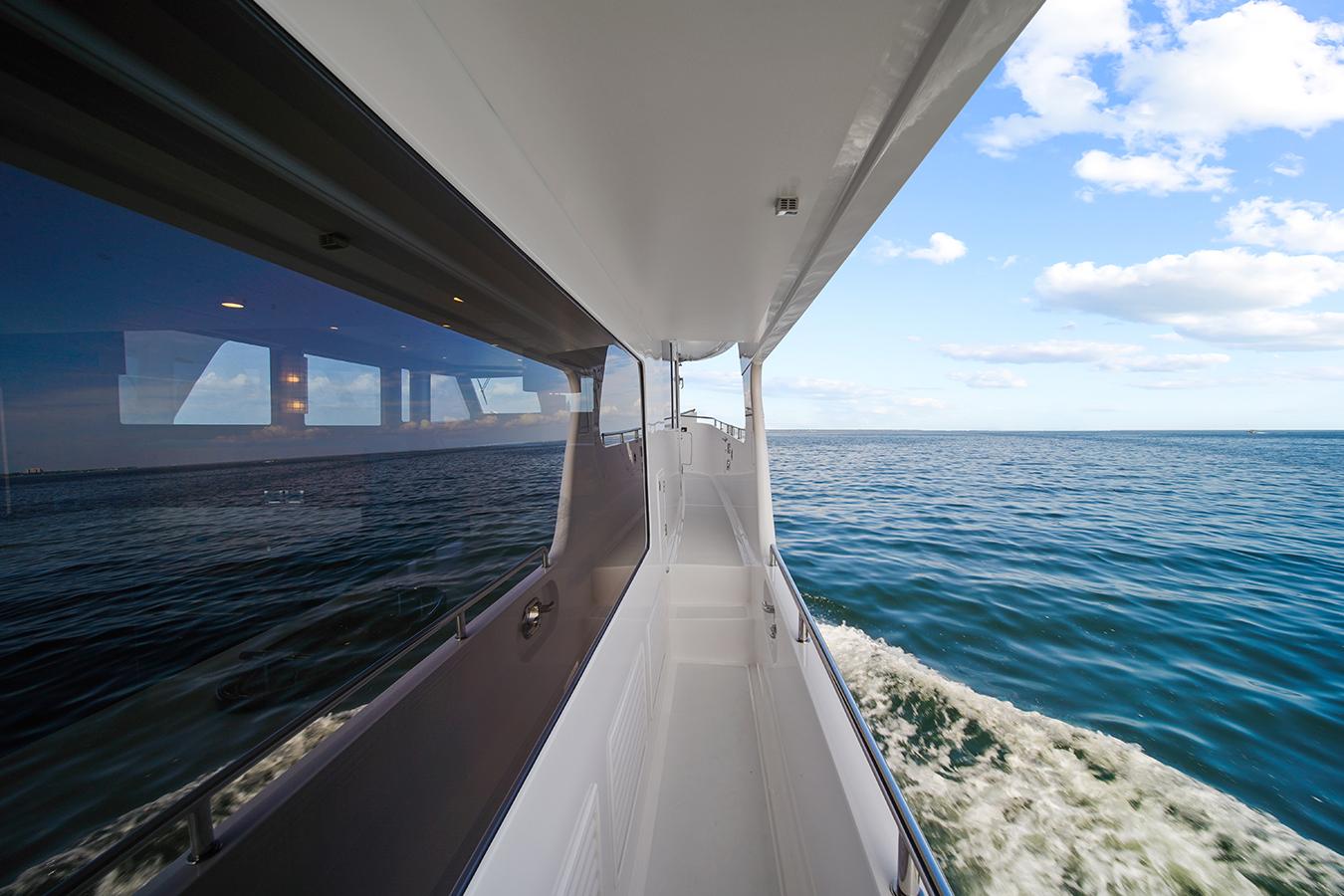

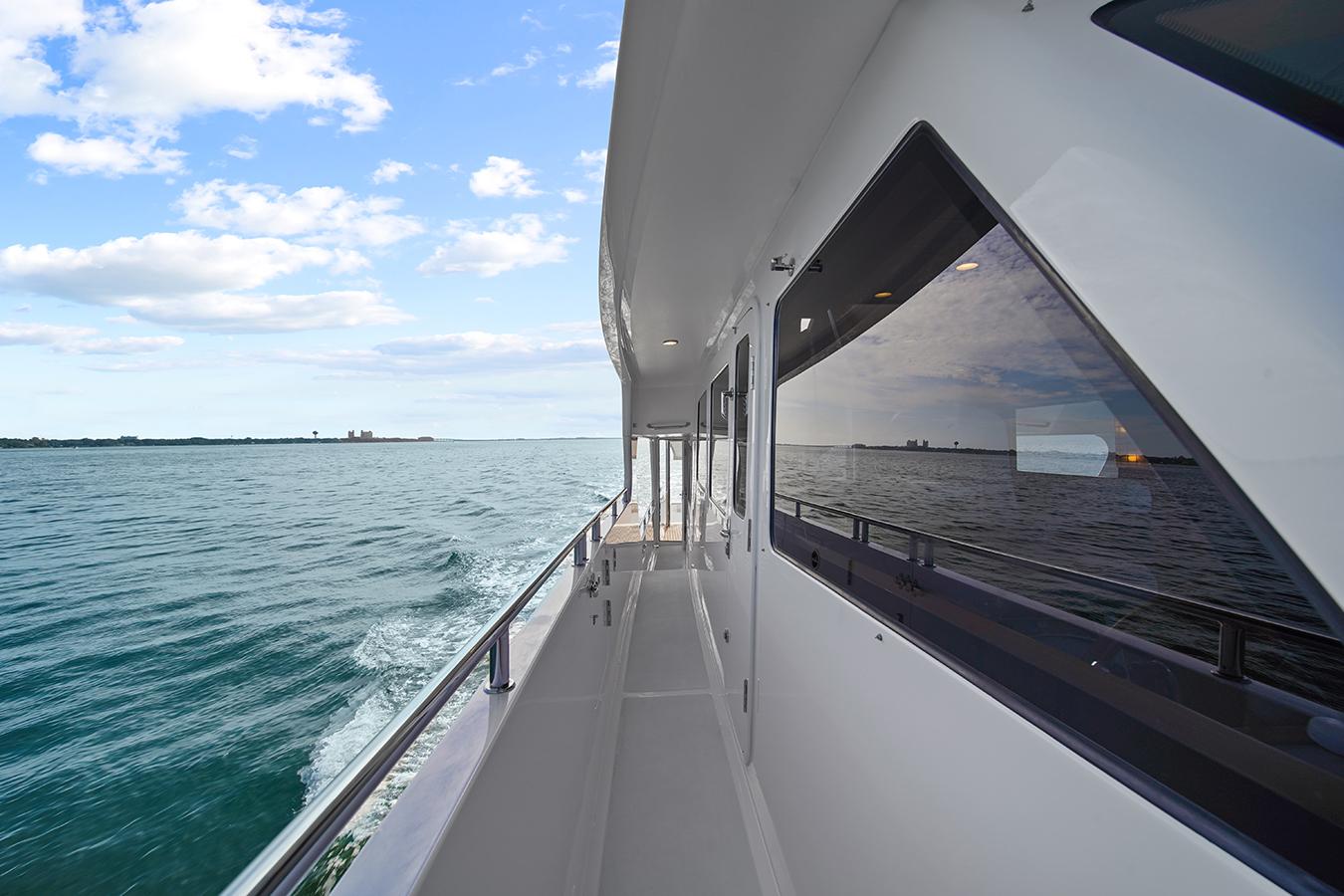

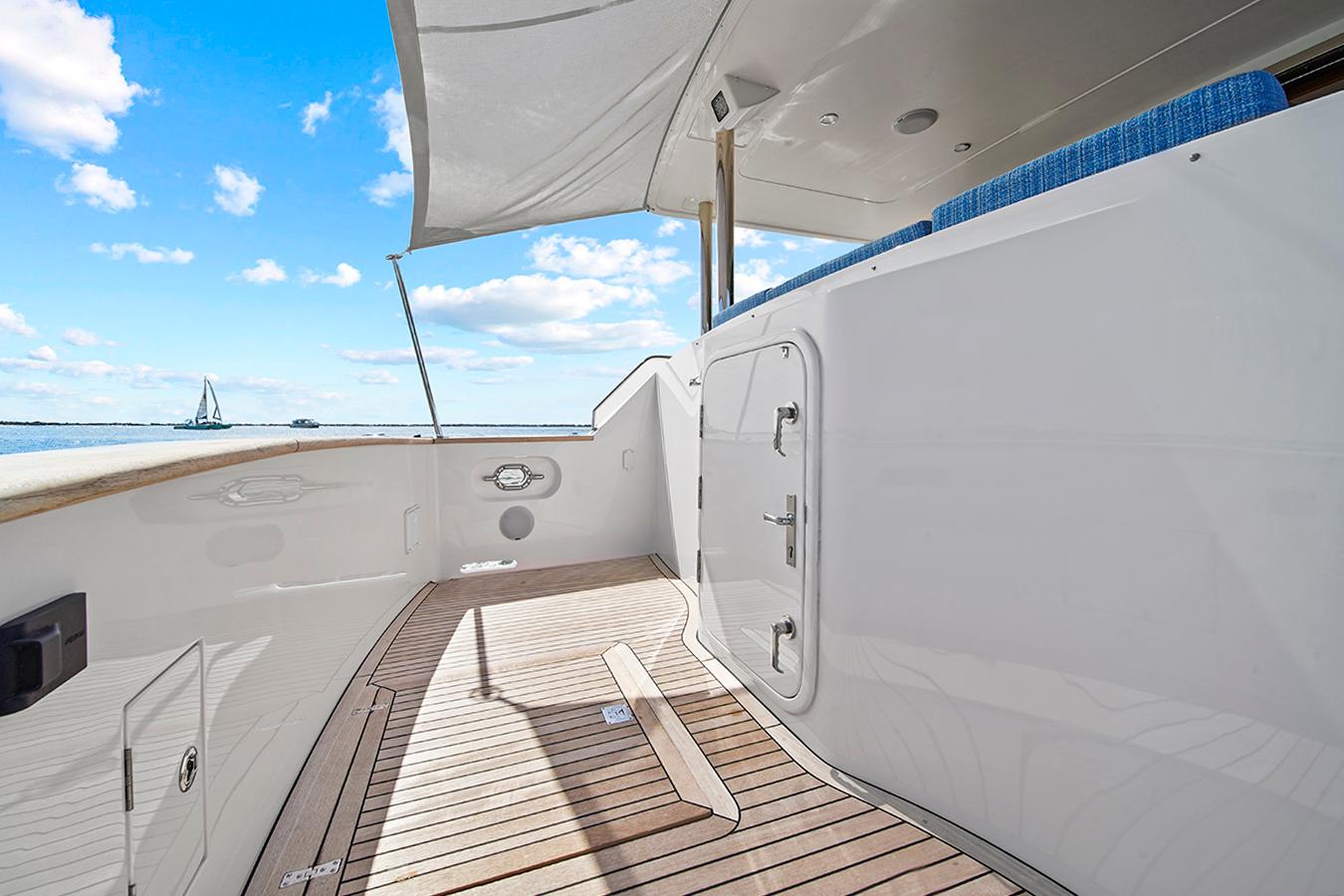

SIDE DECKS

• Molded with gray non-skid surface
• Weathertight doors opening into pilothouse port and starboard
• House side fixed windows with tinted tempered glass
• Two (2) sets of 316 stainless steel spring-line chocks per side
• Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
• Fuel fill fittings for tanks recessed into house side
• 316 stainless steel overhead safety rails
• LED courtesy and overhead lights
• Gate doors at port and starboard side adjacent to pilothouse

PORTUGUESE BRIGE

• Portuguese bridge molded with gray non-skid surface
• Locker doors in aft face of Portuguese bridge
• Hinged door through Portuguese bridge to foredeck
• Three (3) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
• ½” Clear tempered glass in forward facing windshields
• Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
• Webblon covers for pilothouse windows
• LED courtesy lights

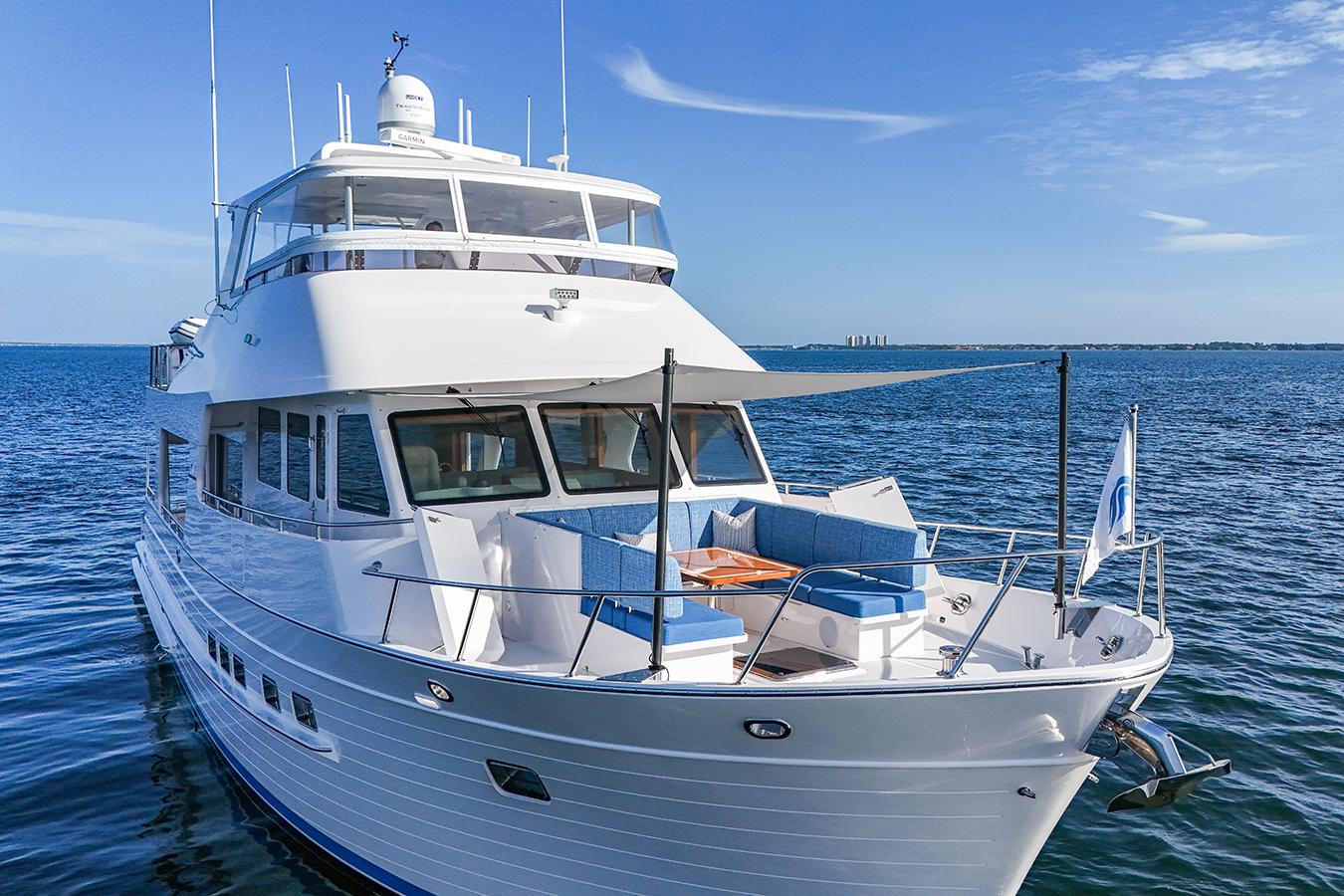

FOREDECK

• Foredeck with gray non-skid surface

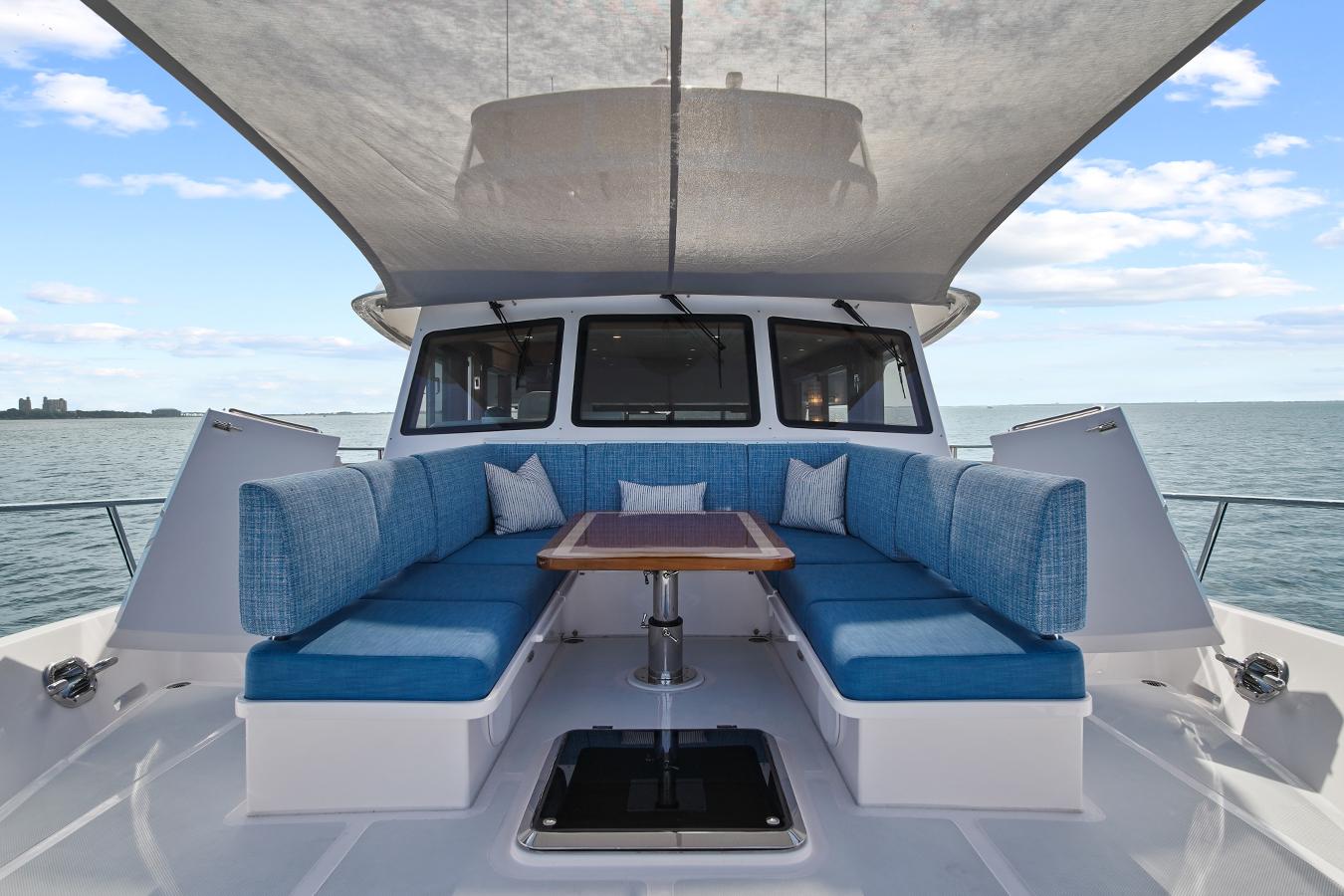

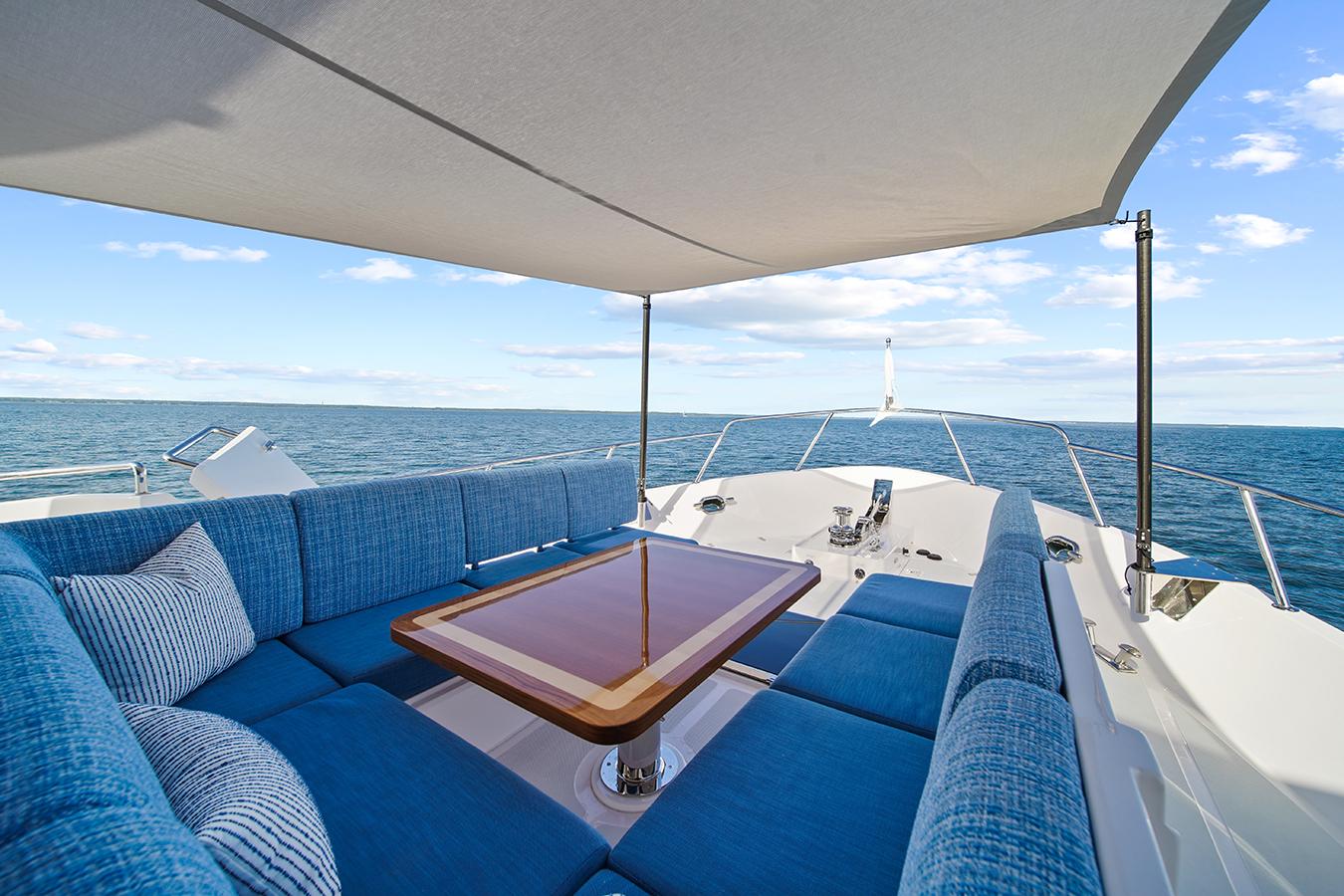

• Spacious Serenity U-shaped seating lounge with teak table
• Sail shade awning (including poles and brackets)
• 316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
• 316 Stainless steel rail on bulwarks increasing in width going forward
• 316 Stainless steel stanchions to support handrail
• Deck lockers forward either side of anchor platform finished in white epoxy paint
• 316 Stainless steel anchor chute/roller at bow
• 99lb Ultra anchor with swivel with 400' of 3/8" chain
• Maxwell hydraulic windlass with a chain stopper and remote controls for dual stations and on foredeck
• Raw water pump and anchor/chain wash down system
• Fresh water wash down with outlet
• Salt water and fresh water 316 SS faucets inside foredeck lockers
• Two (2) 50 amp shore power inlets
• Deck drains plumbed to boot-stripe to prevent black streaks

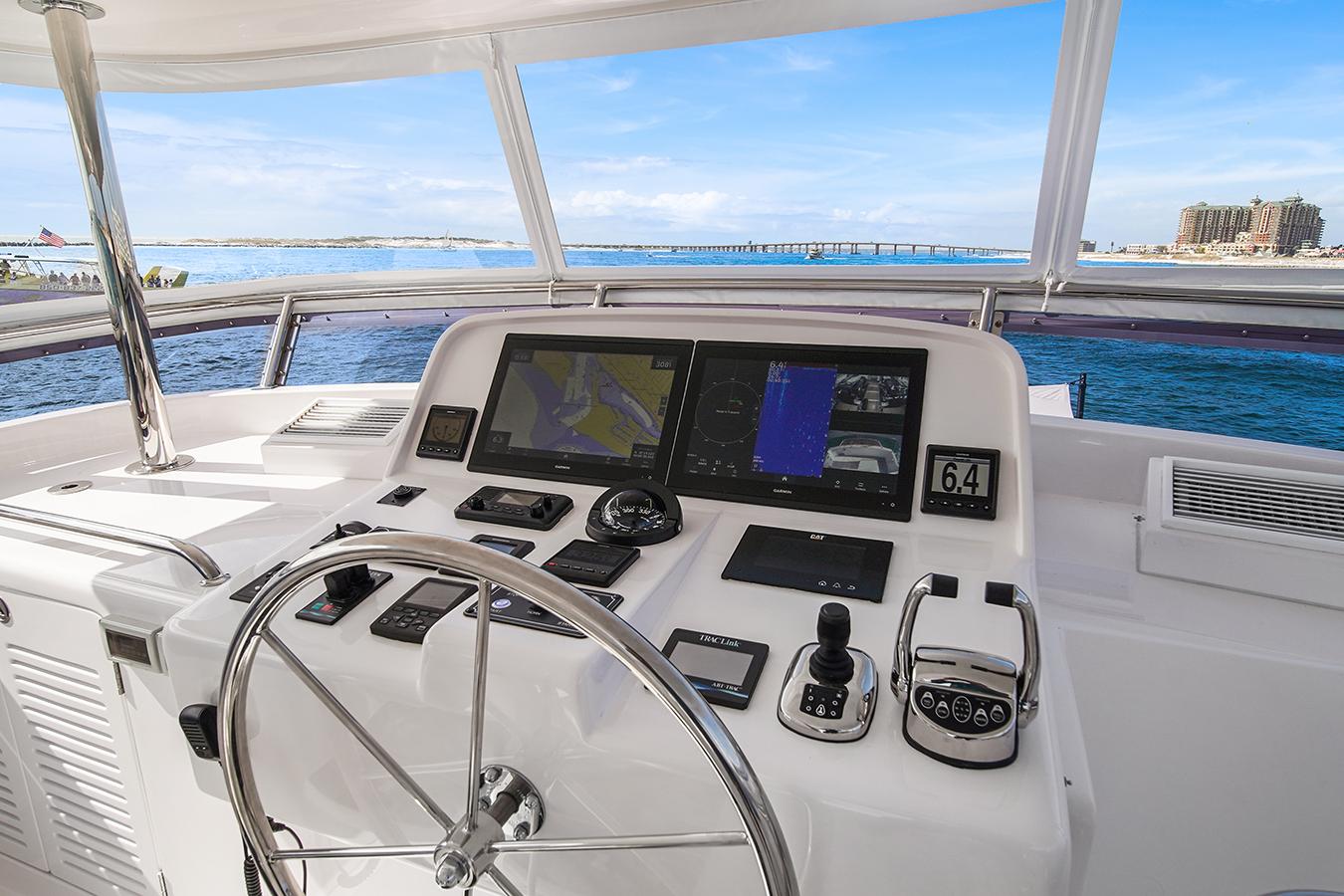

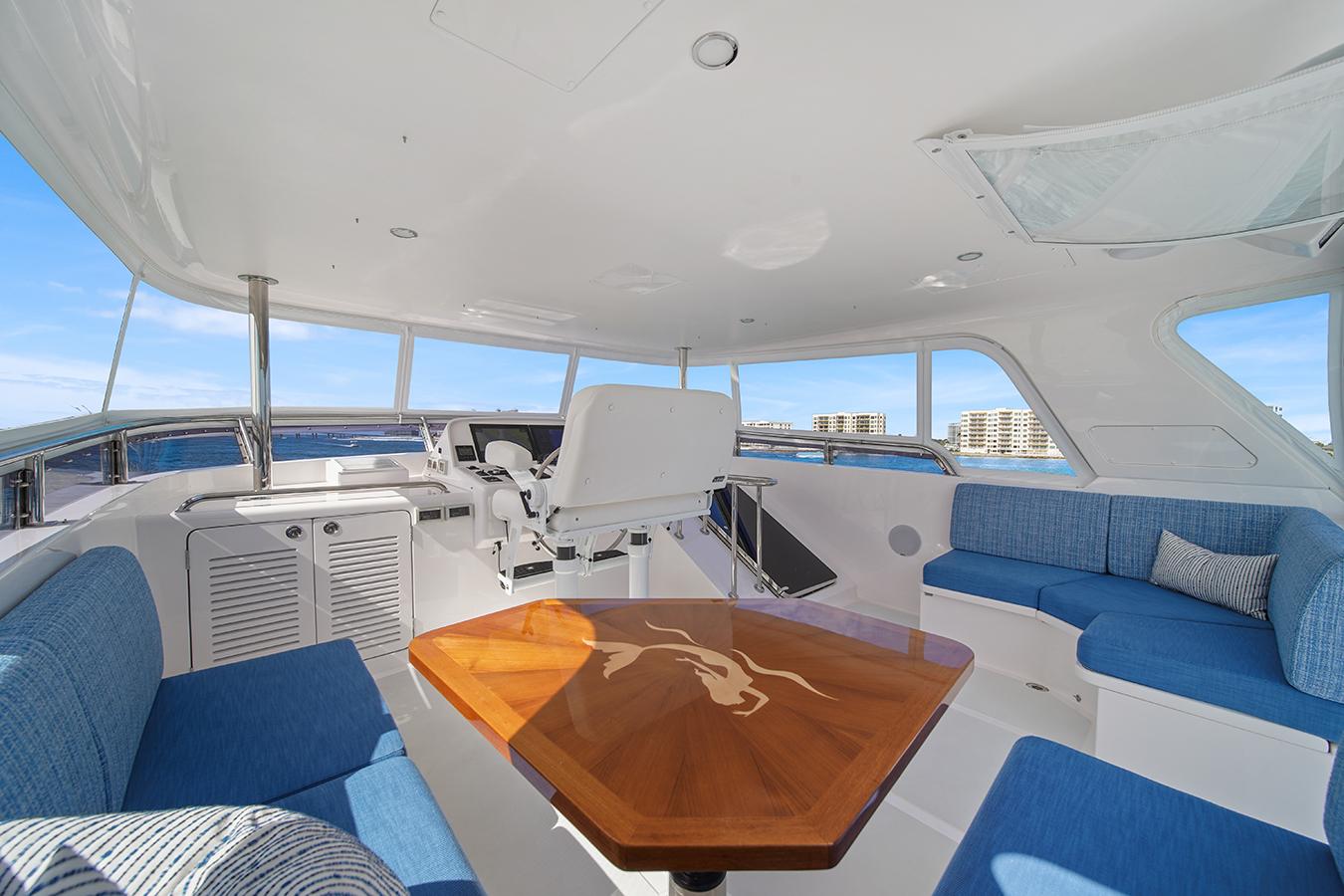

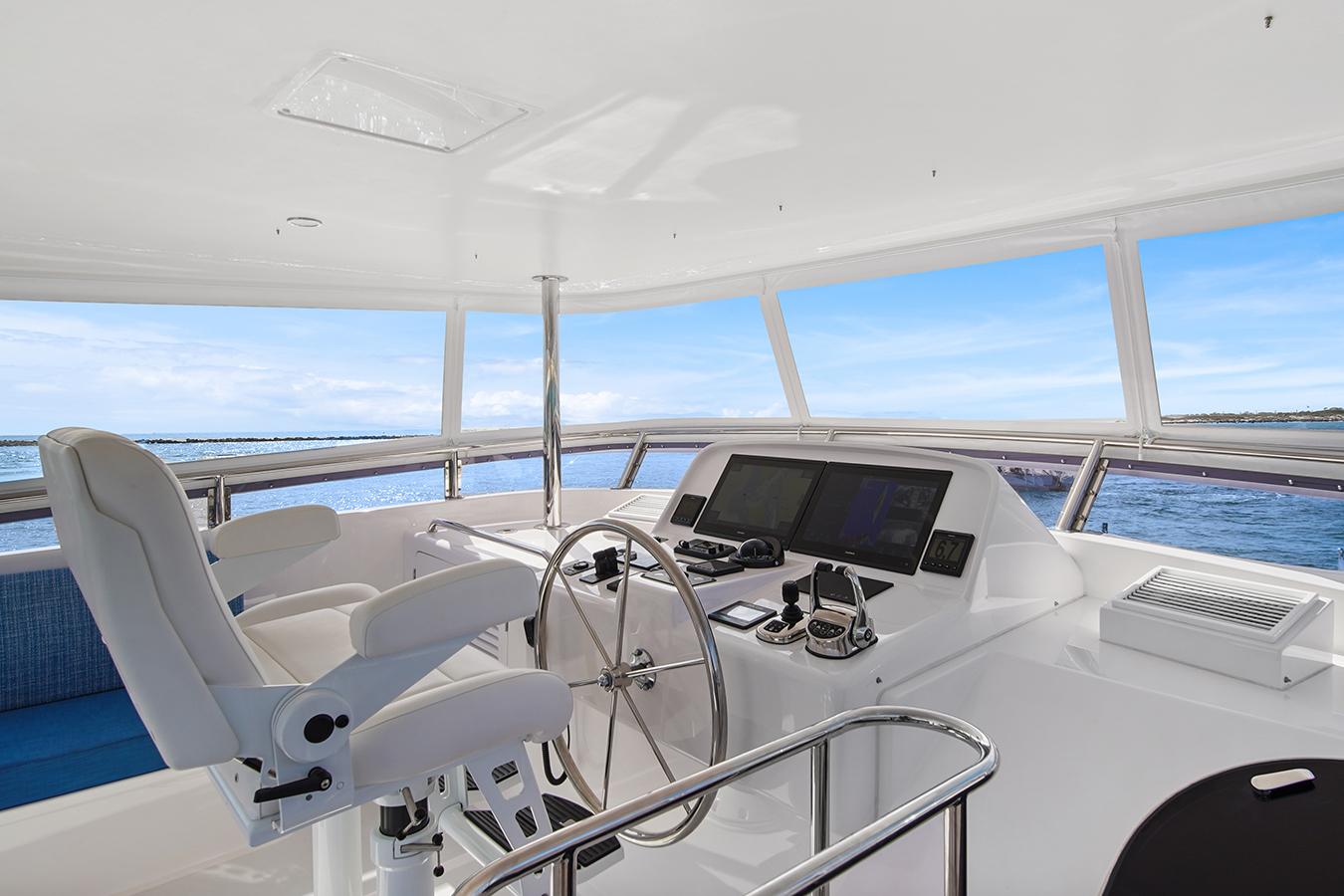

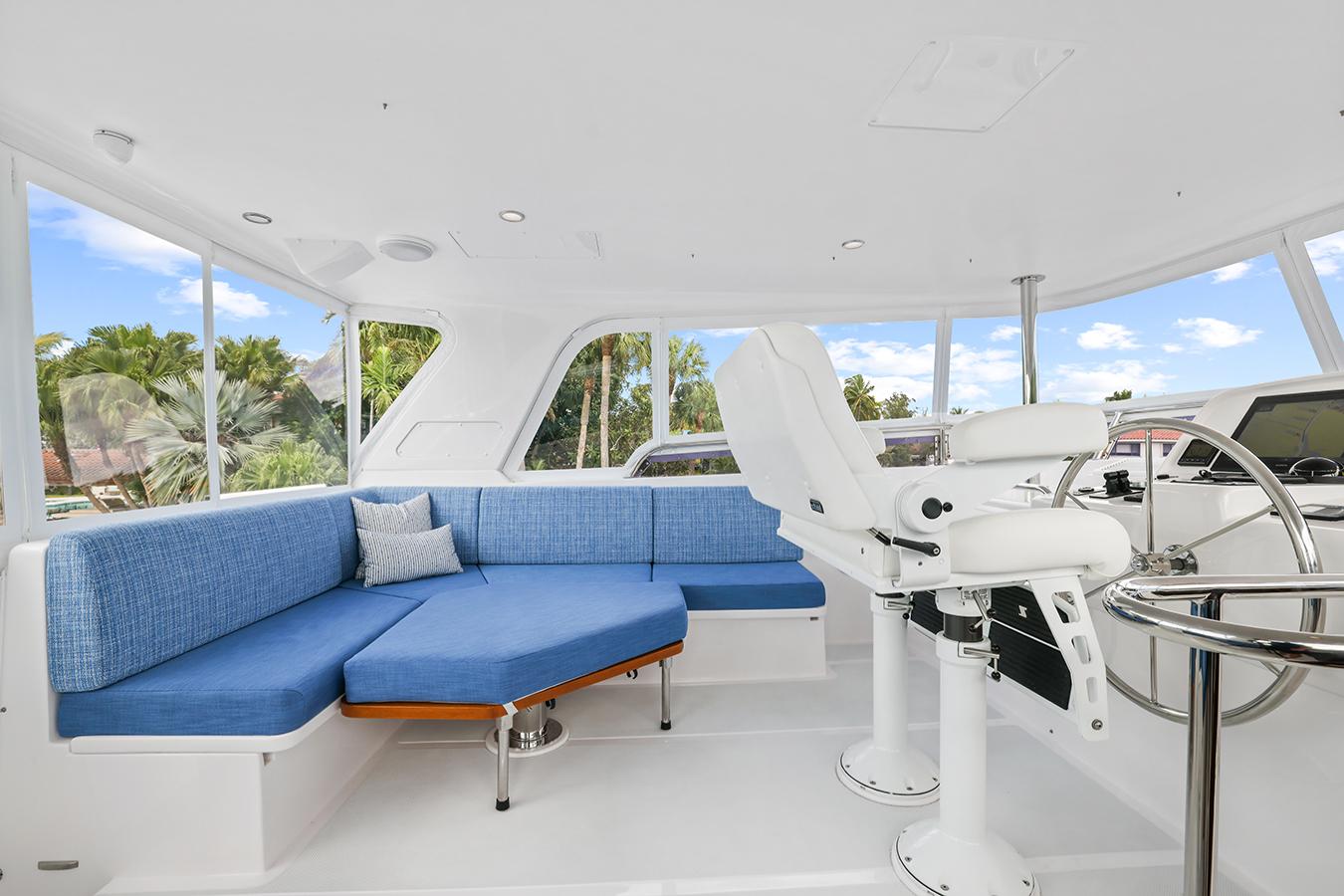

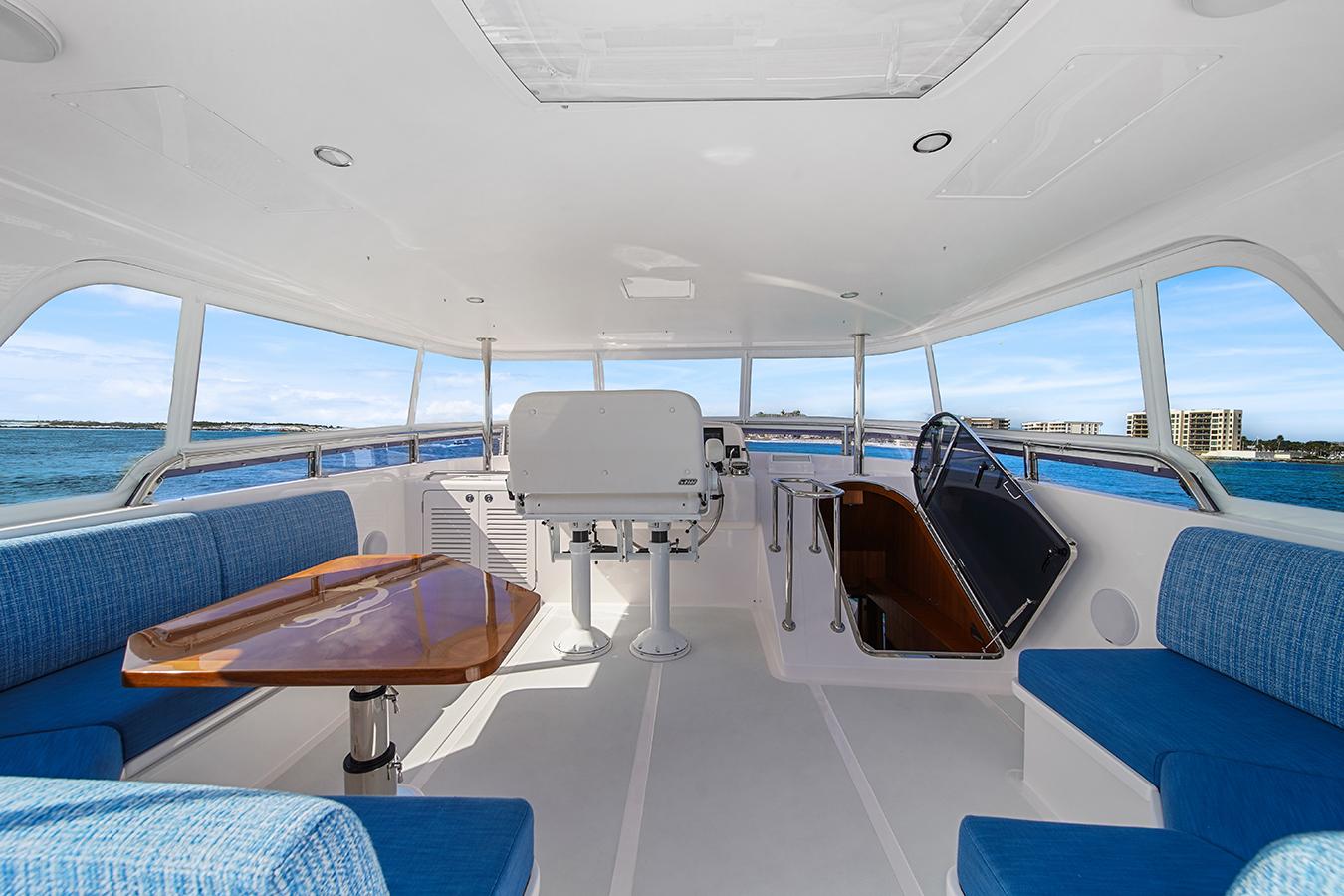

FLYBRIDGE

• Full-beam width deck with gray non-skid surface
• EZ2CY glass enclosure on all sides
• Hardtop
• FRP fixed arch on hardtop
• 316 stainless steel safety rails
• Venturi windscreen with 316 stainless steel rails
• Molded FRP steering console with engine controls
• Electronics console
• Glendinning engine controls
• Pro-Pilot Joystick controller, including Station Keeper, with display to the Glendinning engine control system
• 4” magnetic compass
• Teleflex hydraulic steering system
• 316 Stainless steel destroyer steering wheel
• One (1) Stidd double helm seat with powder coated base and naugahyde fabric
• Fire system repeater alarm
• Two (1) L-shaped settees port and starboard
• One (1) teak hi-lo table that converts to a lounge with a filler cushion
• FRP cabinets to starboard
• Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
• Kahlenberg D-OA dual trumpet air horn with compressor
• Two (2) 24v to 12v DC-DC converters with 12v battery back-up system
• 316 Stainless steel mast with bow and anchor lights
• 316 Stainless steel hatch and stairs starboard side down to pilothouse with LED courtesy lights
• LED overhead lights and LED service light under flybridge steering console
• ACR searchlight with dual station controls
• Two (2) 16k btu air handlers
• Stamoid covers for BBQ, windlass, Portuguese, flybridge and aft deck seating and flybridge Stidd and helm

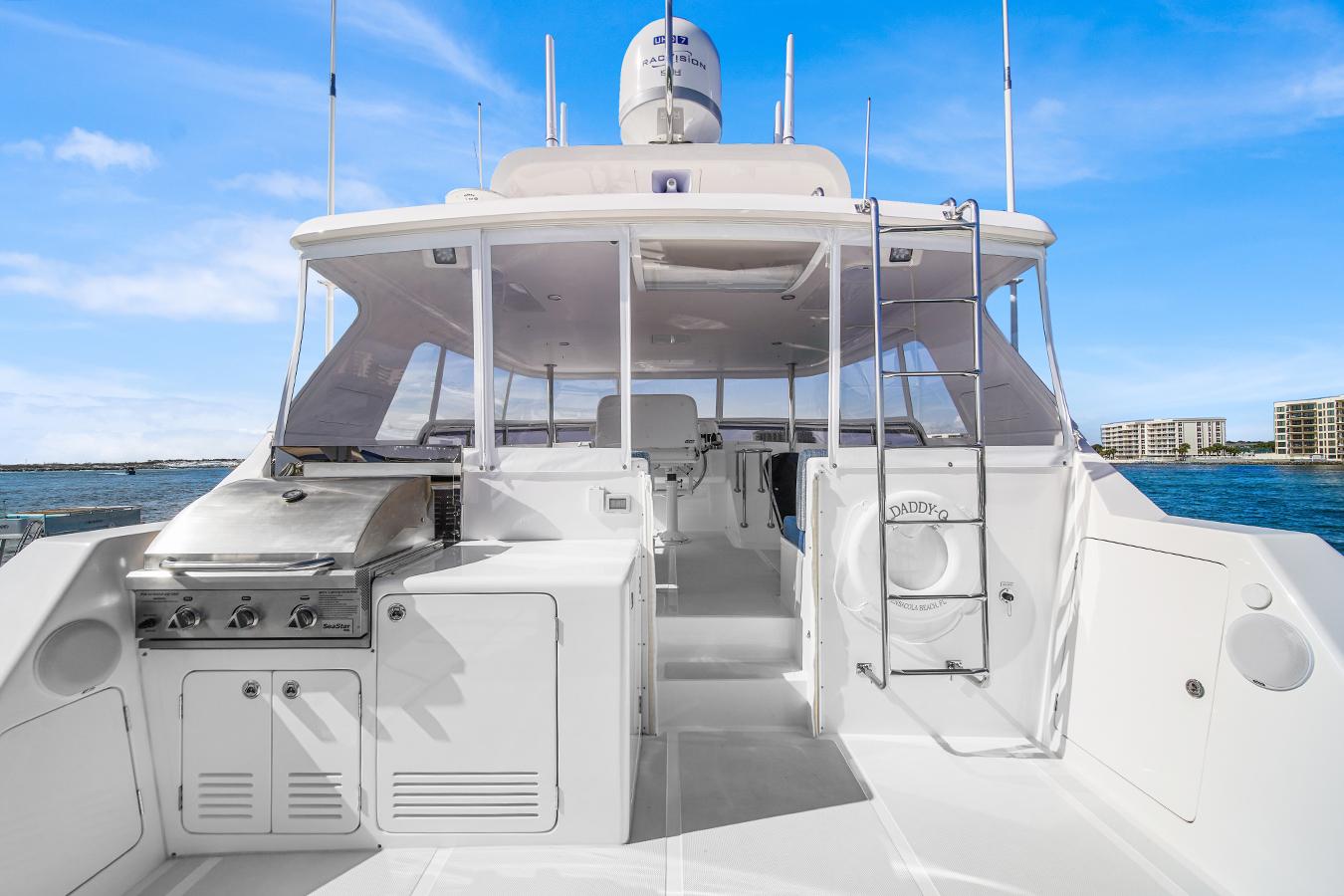

BOAT DECK

• Deck with gray non-skid surface
• Gas cooktop and cabinet to port
• 316 Stainless steel hand rails
• Removable stainless steel ladder from boat deck to hardtop
• Two (2) LED working lights on radar arch
• 1,300lb aluminum painted davit with 4-way hydraulic control with rotating base, luff, lift and a 10.4' fixed arm
• Wireless hand held davit remote
• Ocean ISO 8 man life raft mounted into starboard side railing
• Sail shade awning (including poles and brackets)

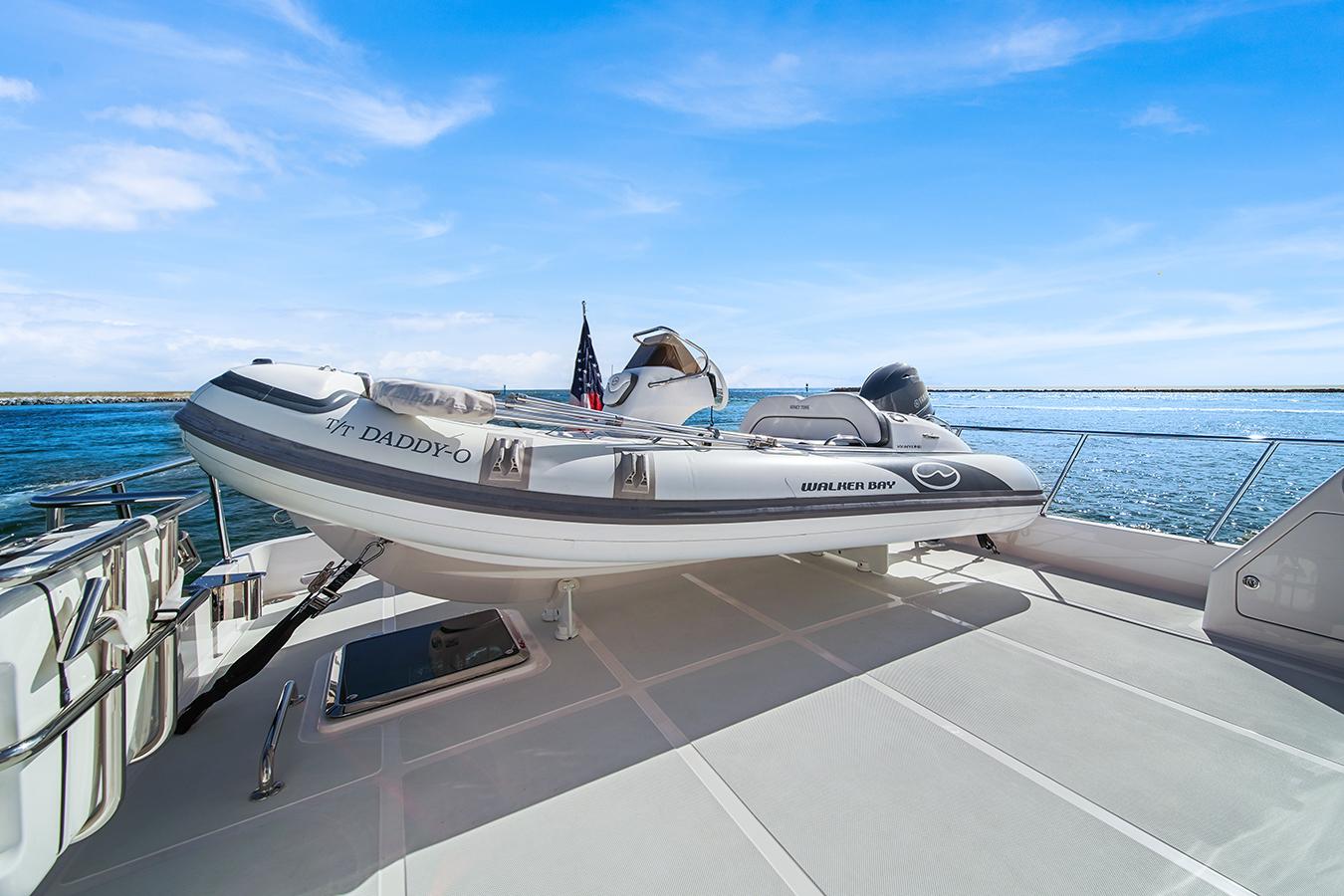

• 13' Walker Bay Venture tender with a 60hp Yamaha

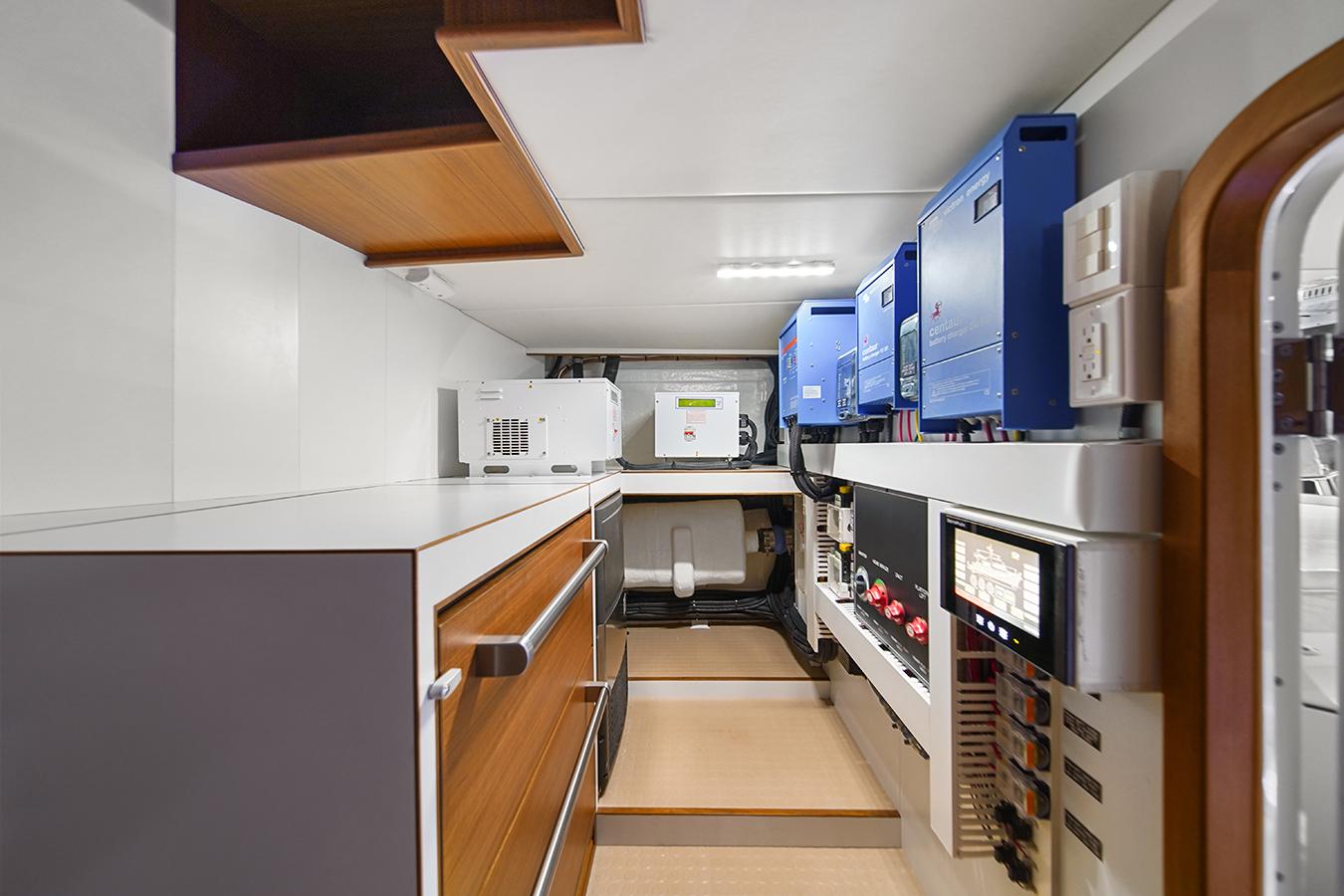

LAZARETTE

• Edura beige coin dot flooring
• Hull finished with white gloss polyurethane paint
• LED overhead lights
• Formica finish on walls
• Freezer
• Ice maker
• Standalone AC unit

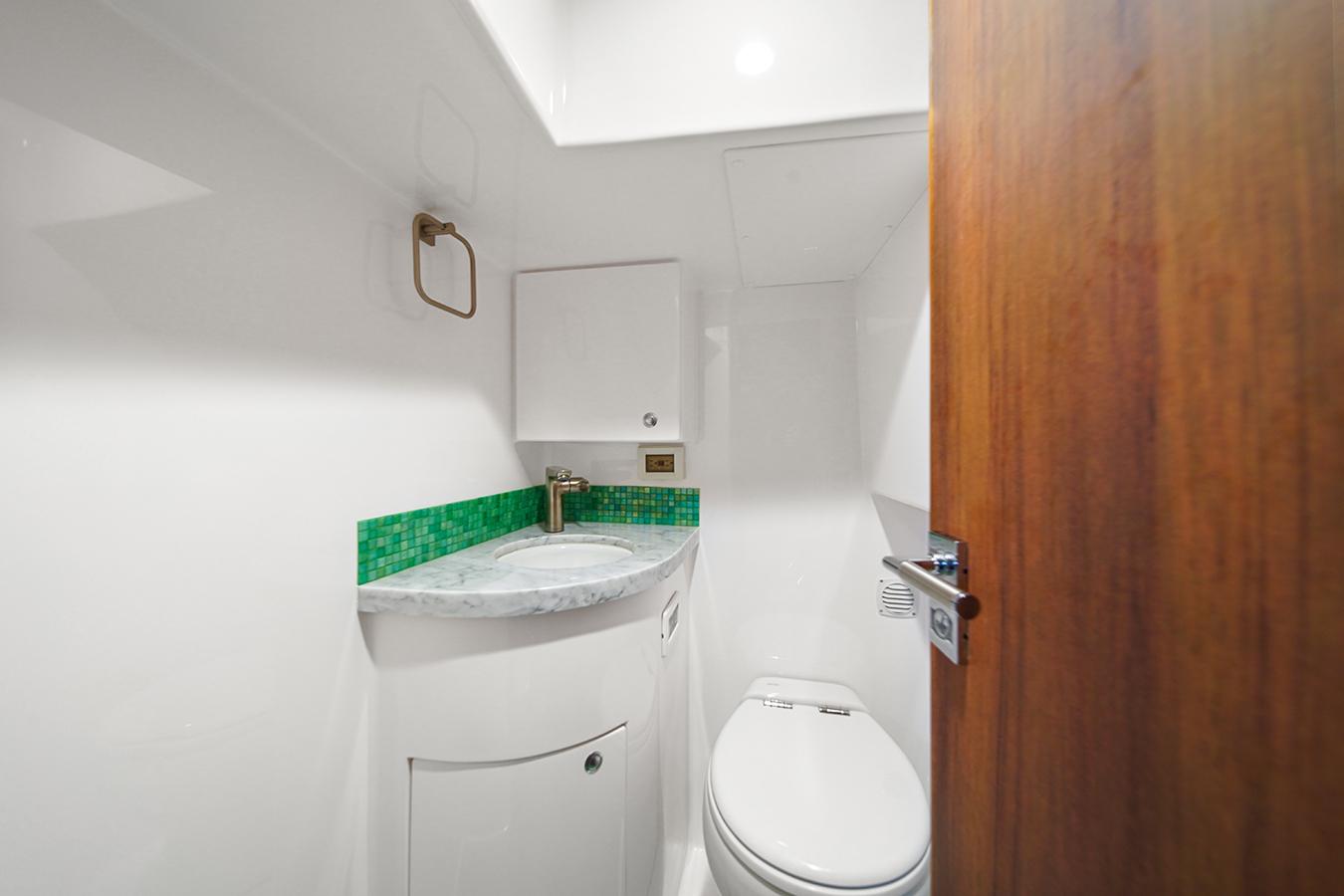

• Day head with sink and toilet, tile floor by SICIS

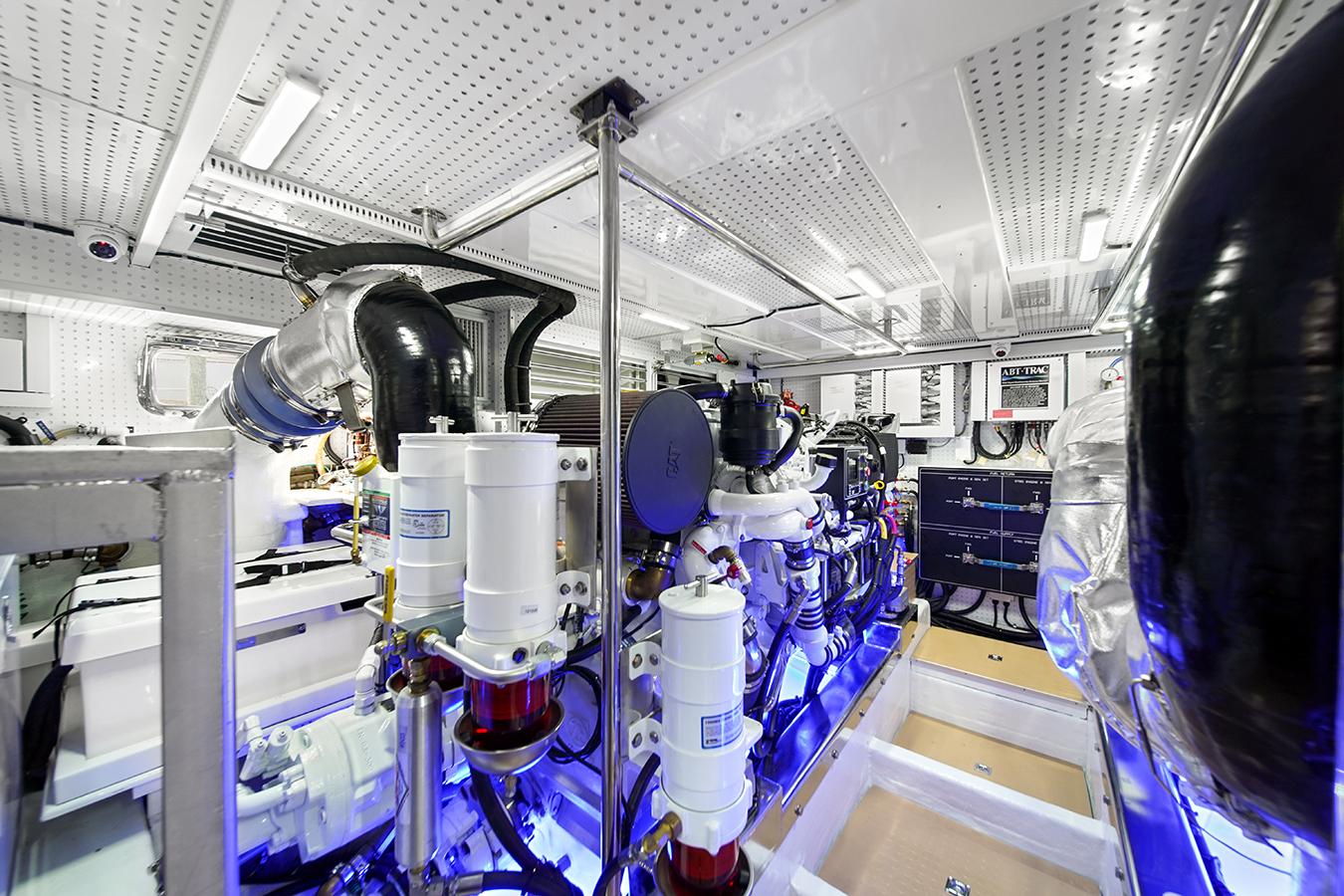

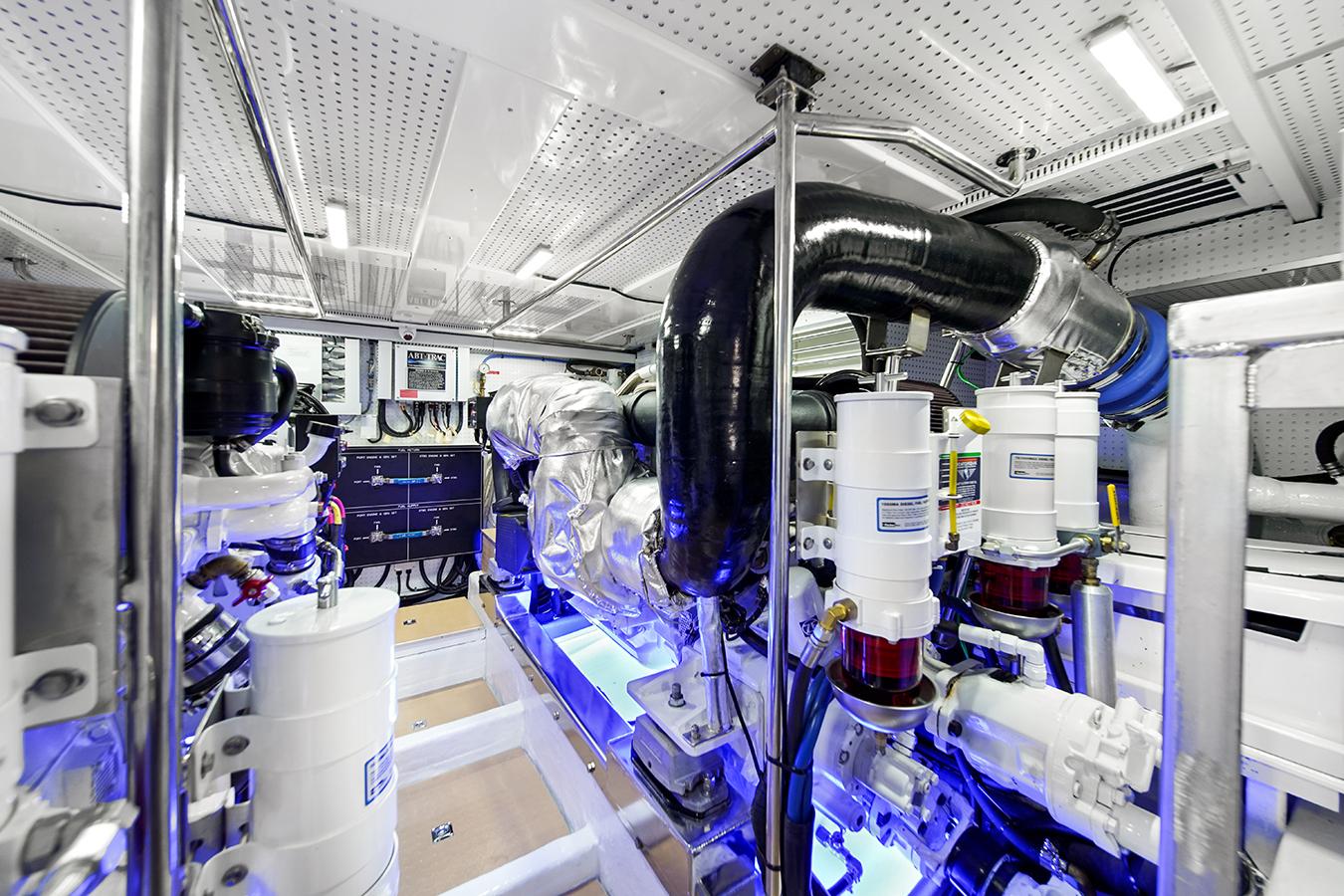

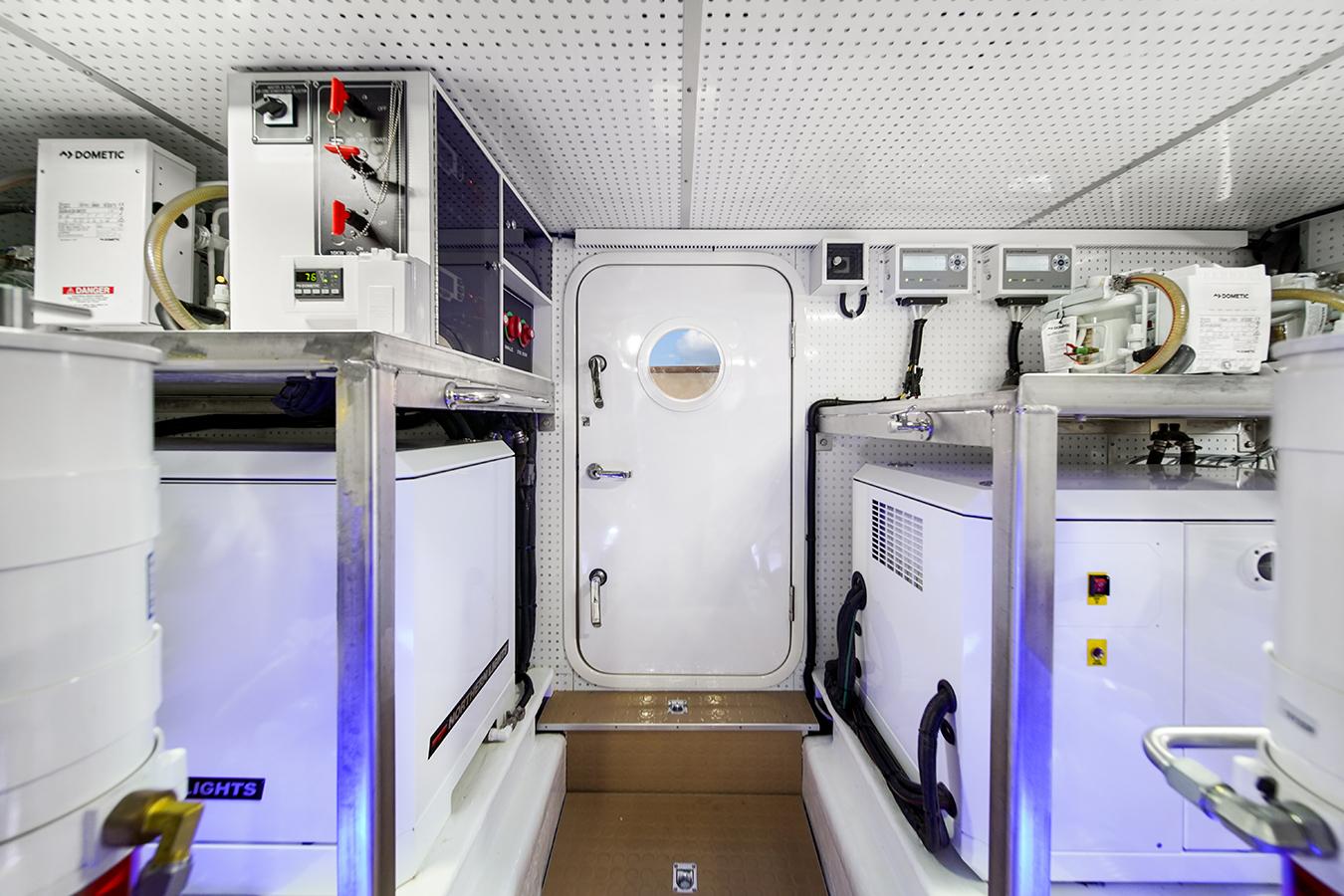

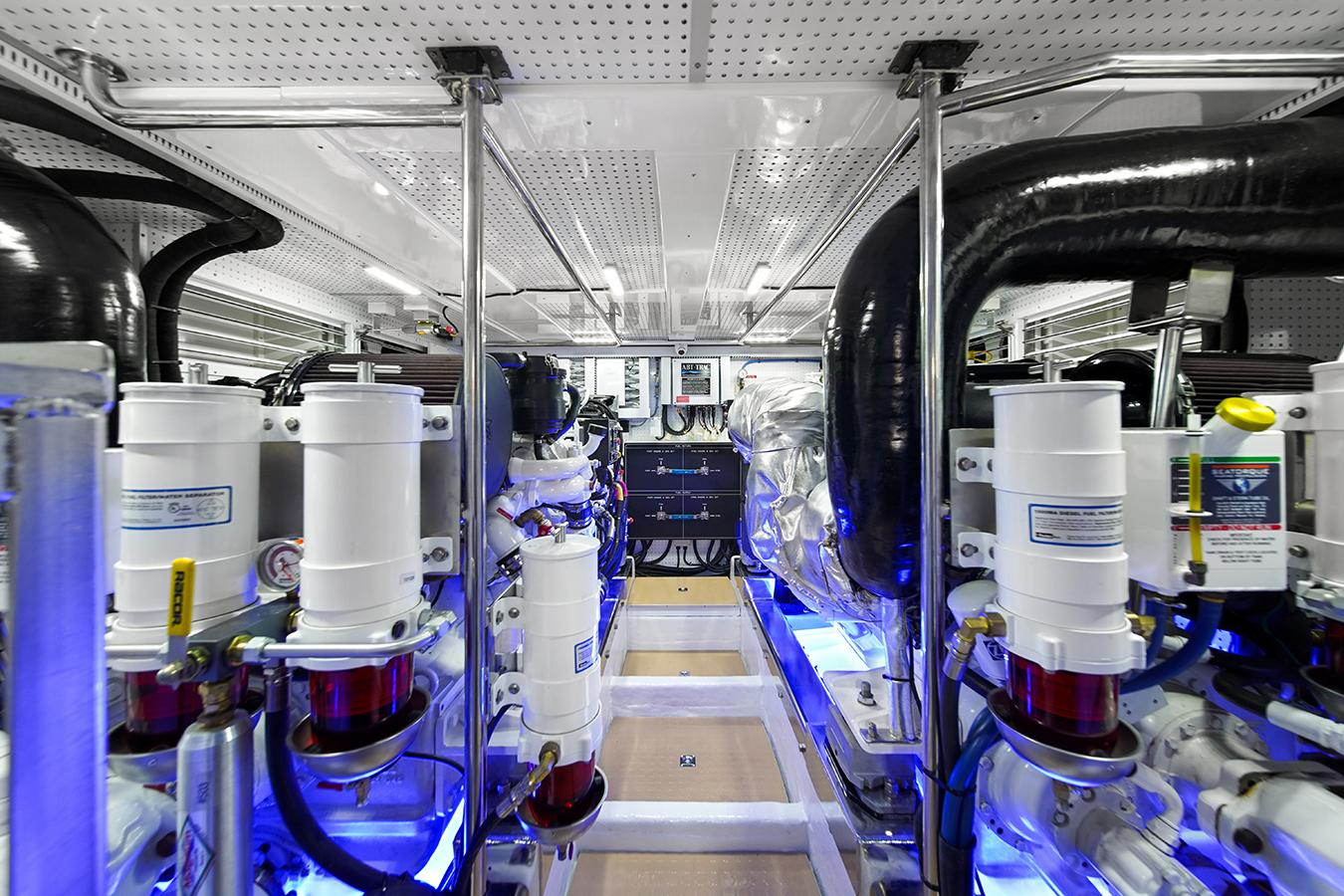

ENGINE ROOM AND MECHANICAL

• Twin Caterpillar C-12.9 (985 HP) diesel engines with ZF transmissions (approximately 350 hours)
• Fiberglass drip pans under engines
• One (1) 16kw (60hz) and one (1) 12kw Northern Lights generators with sound shields
• ABT 16hp hydraulic proportional bow and stern thrusters with dual station controls
• ABT Trac 220 stabilizers with upgraded 7.5 sq. ft. fins
• Northern Lights uplift water separator exhaust system with bypass and FRP mufflers
• Copper bonding system to all underwater fittings with zinc anodes
• Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
• Rigid fresh water pipes and color coded copper fuel lines
• Stainless steel struts with bearings
• Headhunter 24v DC fresh water pump with accumulator tank
• Two (2) 24v DC automatic shower sump systems with external pump
• MarineAir direct expansion air conditioning system with backup raw water cooling pump
• Additional self-contained 16k btu AC unit
• Ball-valve bronze seacocks on all through-hulls below waterline
• Oil change system for engines, generators and transmissions

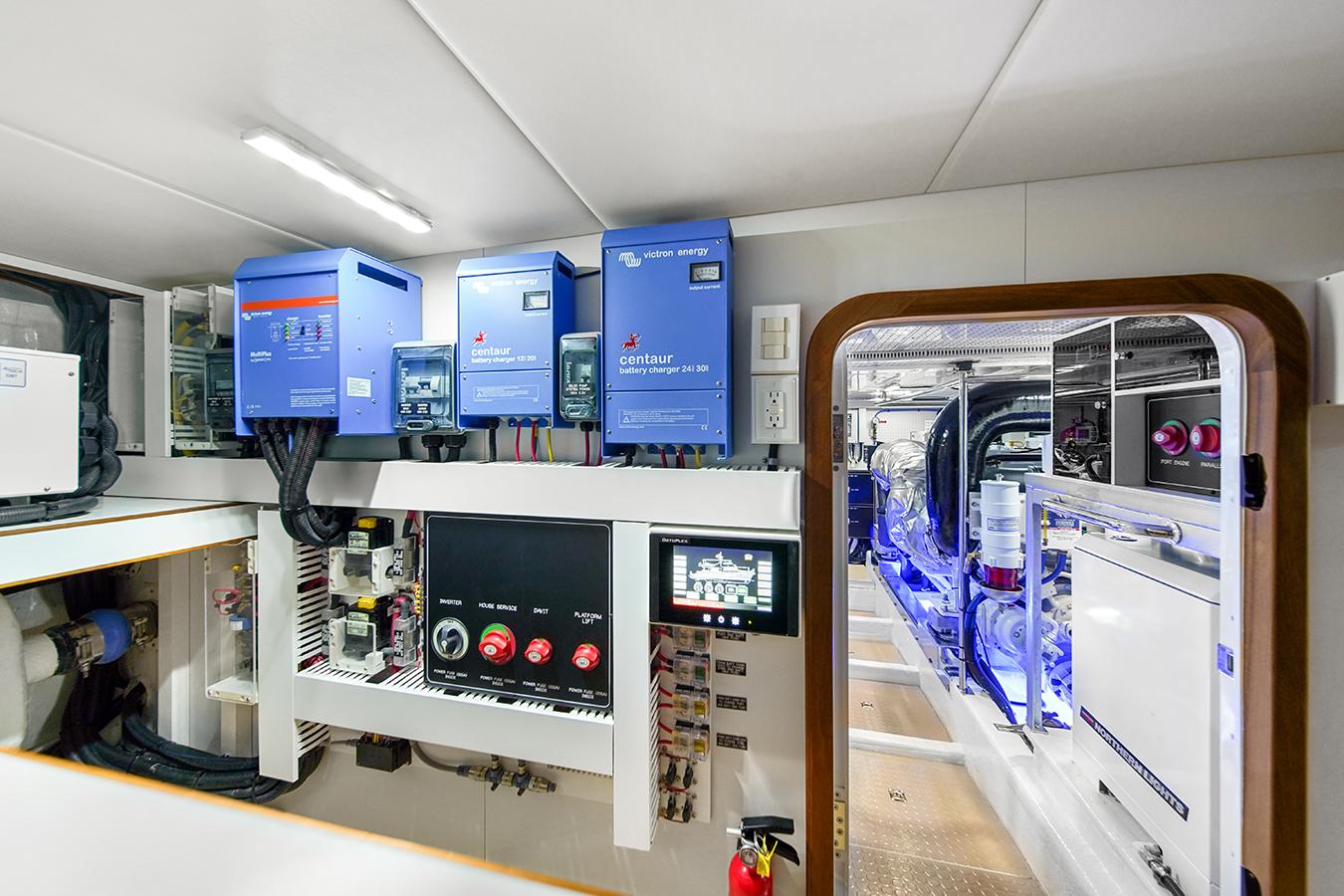

• Two (2) 50amp ASEA ISO boost isolation transformers
• One (1) 3.0kw inverter/charger (24VDC to 115VAC-60Hz or 230VAC/50Hz)
• Two (2) Racor 1000 MA dual fuel filters for main engines
• One (1) Racor 1000 MA single fuel filters for generator

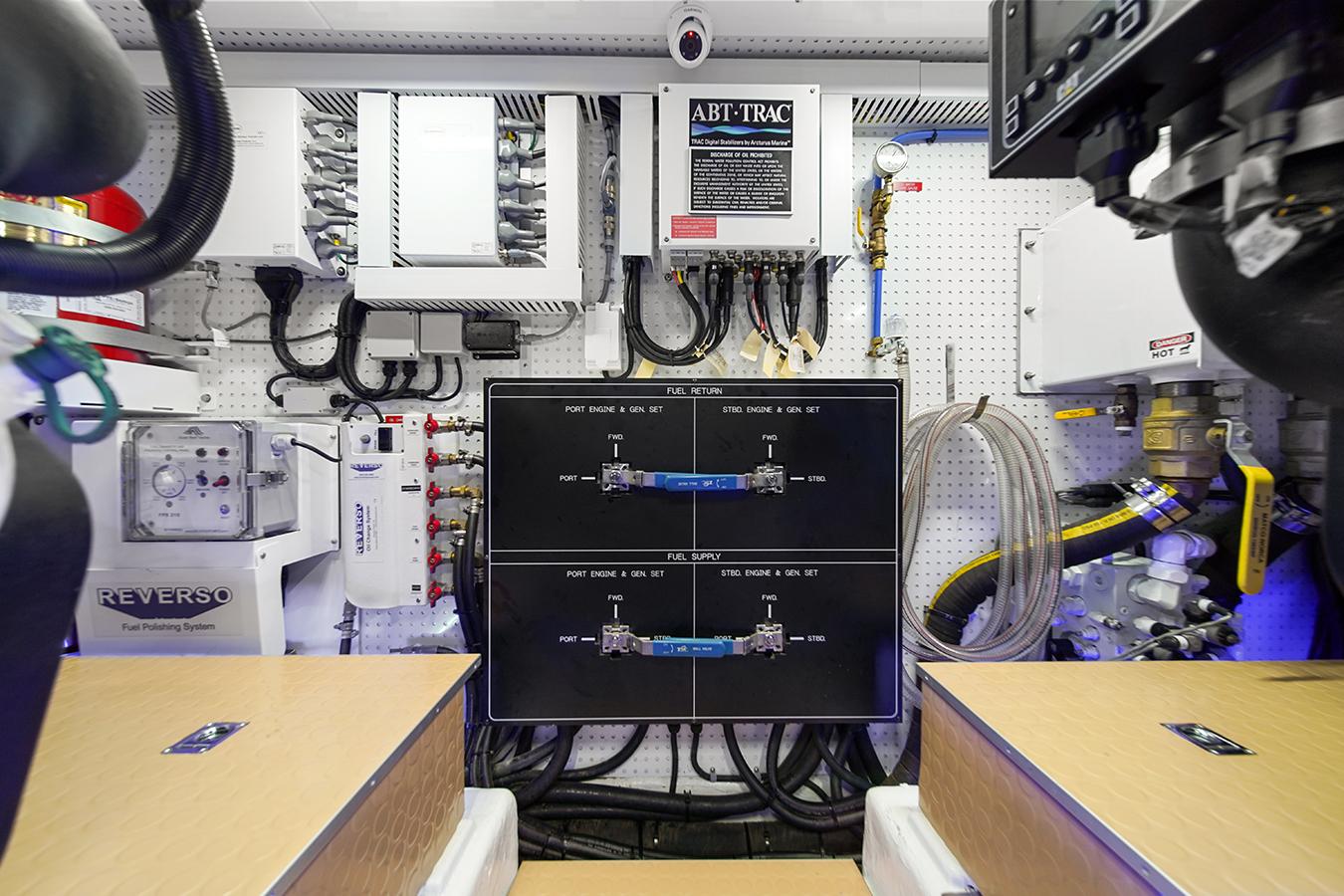

• Fuel polishing system
• Fuel management system
• Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
• Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
• Fire system and bilge high-water alarm system with warning panel
• Fresh water hose bibb
• AGM (Absorbed Glass Matt) batteries in FRP boxes:
• Two (2) engine banks with two (2) 8D batteries for each bank
• One (1) house bank with eight (8) 8D batteries
• One (1) generator bank with one (1) battery
• One (1) 24v and one (1) 12v battery charger
• Two (2) battery isolators
• Two (2) 20 gallon water heaters with heat exchanger
• 1,800 gpd water maker
• Headhunter Mach5 backup pump for fresh water system
• Two (2) ElectroSea 1” ElectroStrainer all-in-one smart biofouling-prevention systems
• Four (4) 24v DC blowers
• LED overhead lights
• 316 Stainless steel safety rails around engines
• Two watertight bulkheads
• Watertight aluminum engine room doors with sight windows
• Edura beige coin dot flooring

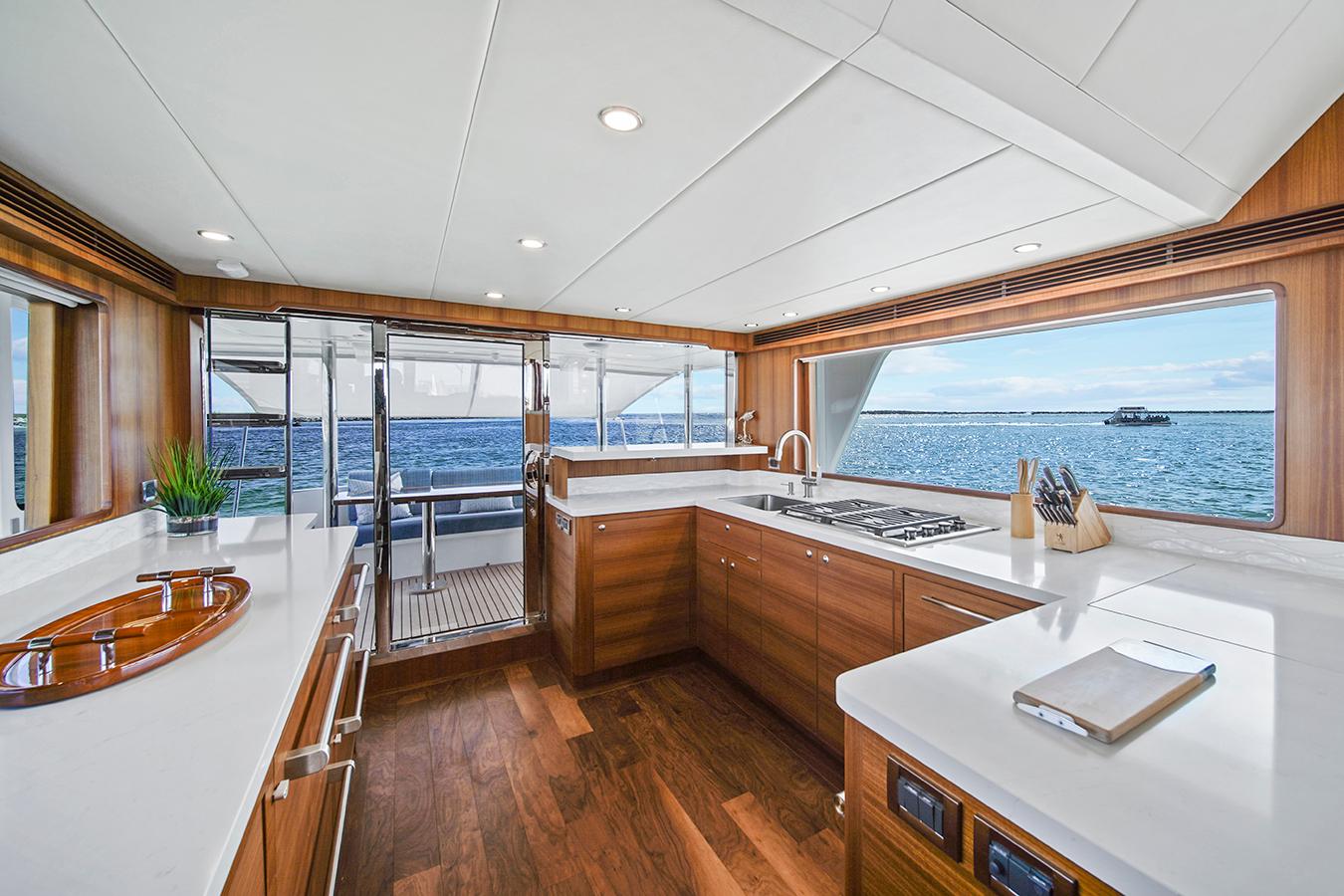

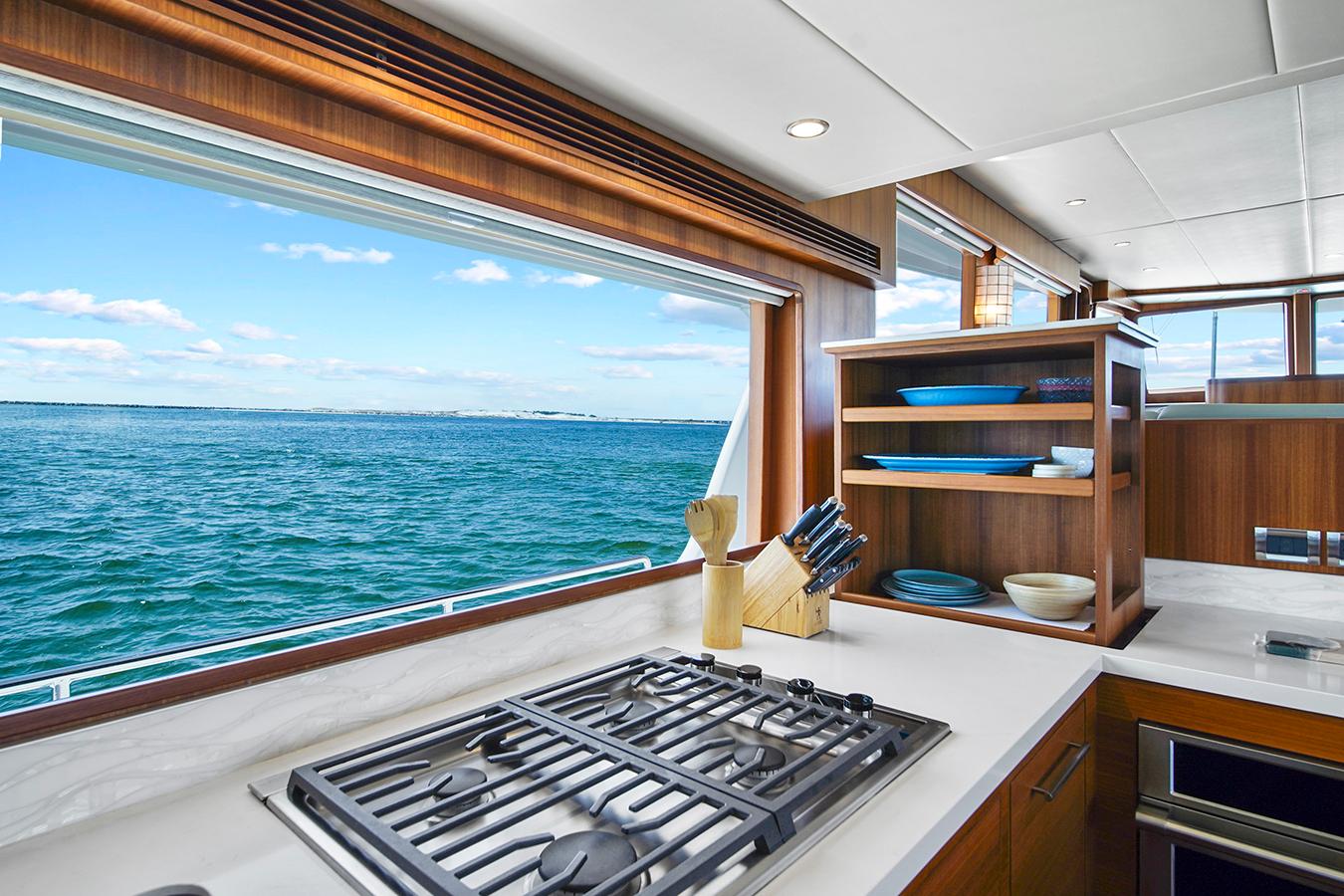

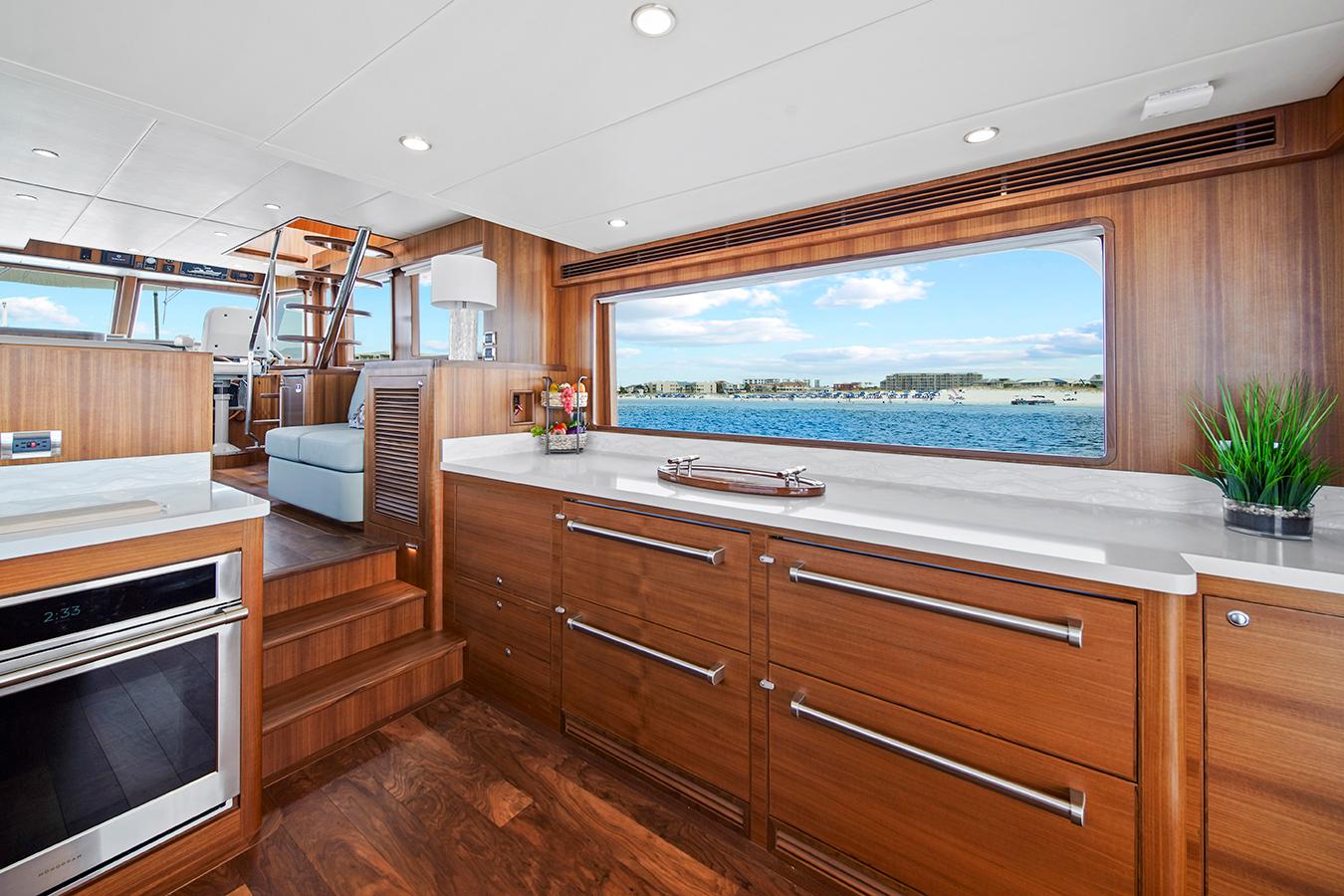

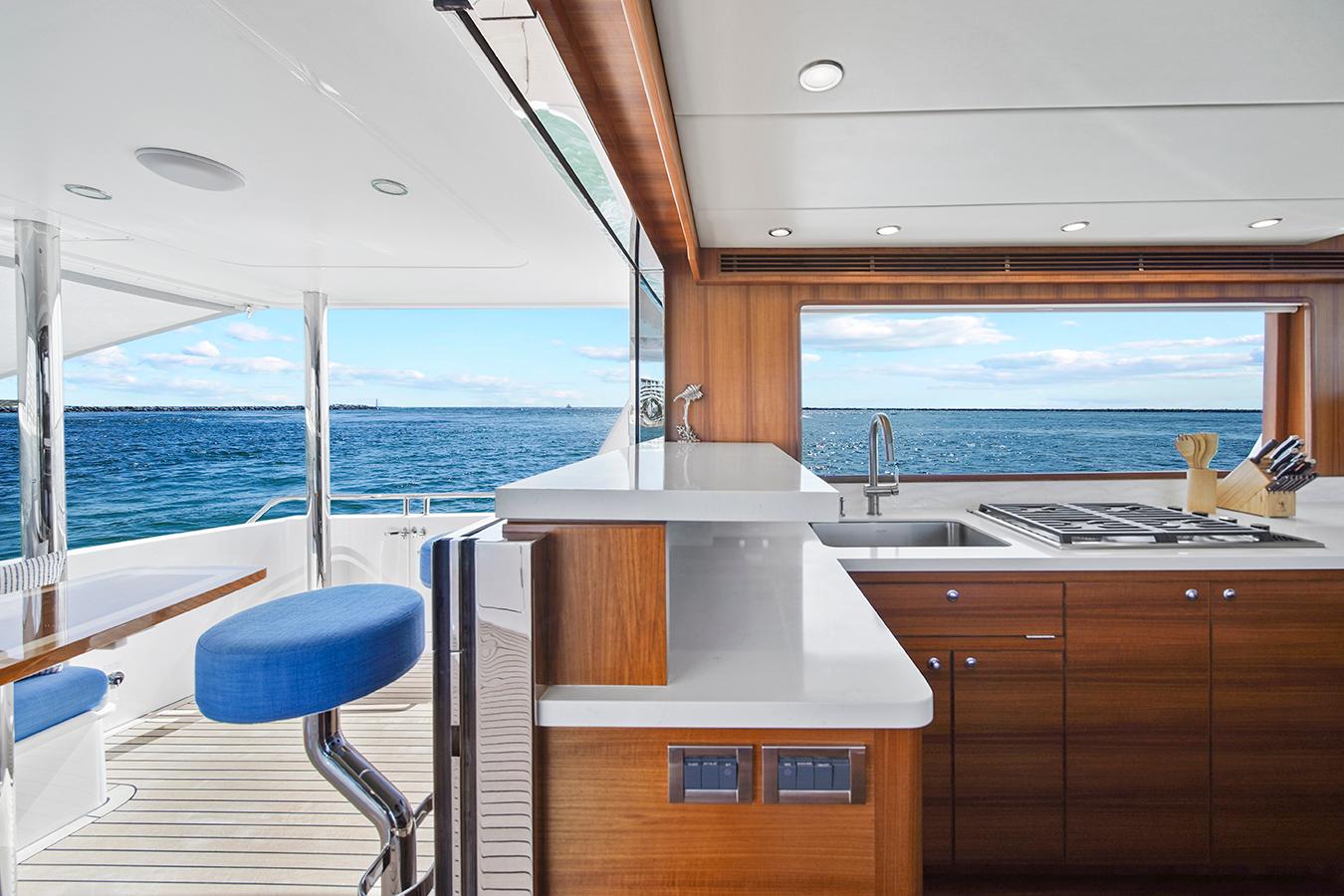

GALLEY AFT

• Silestone countertops with New Ravenna tile backsplash
• Elkay sink with soap dispenser
• Pullout spice cabinet/locker next to stove
• Custom vertical pop-up dish storage cabinet
• LED overhead lights
• Teak wall paneling with satin finish
• Engineered wood floor by Armstrong
• Access hatches to allow for engine removal
• Custom stainless steel swing door with mechanical up/down window to aft deck
• Stainless steel overhead grab rail with recess detail
• Undercounter refrigerators
• Dishwasher
• Built-in microwave
• Wolf gas cooktop
• Oven
• Garbage disposal with switch

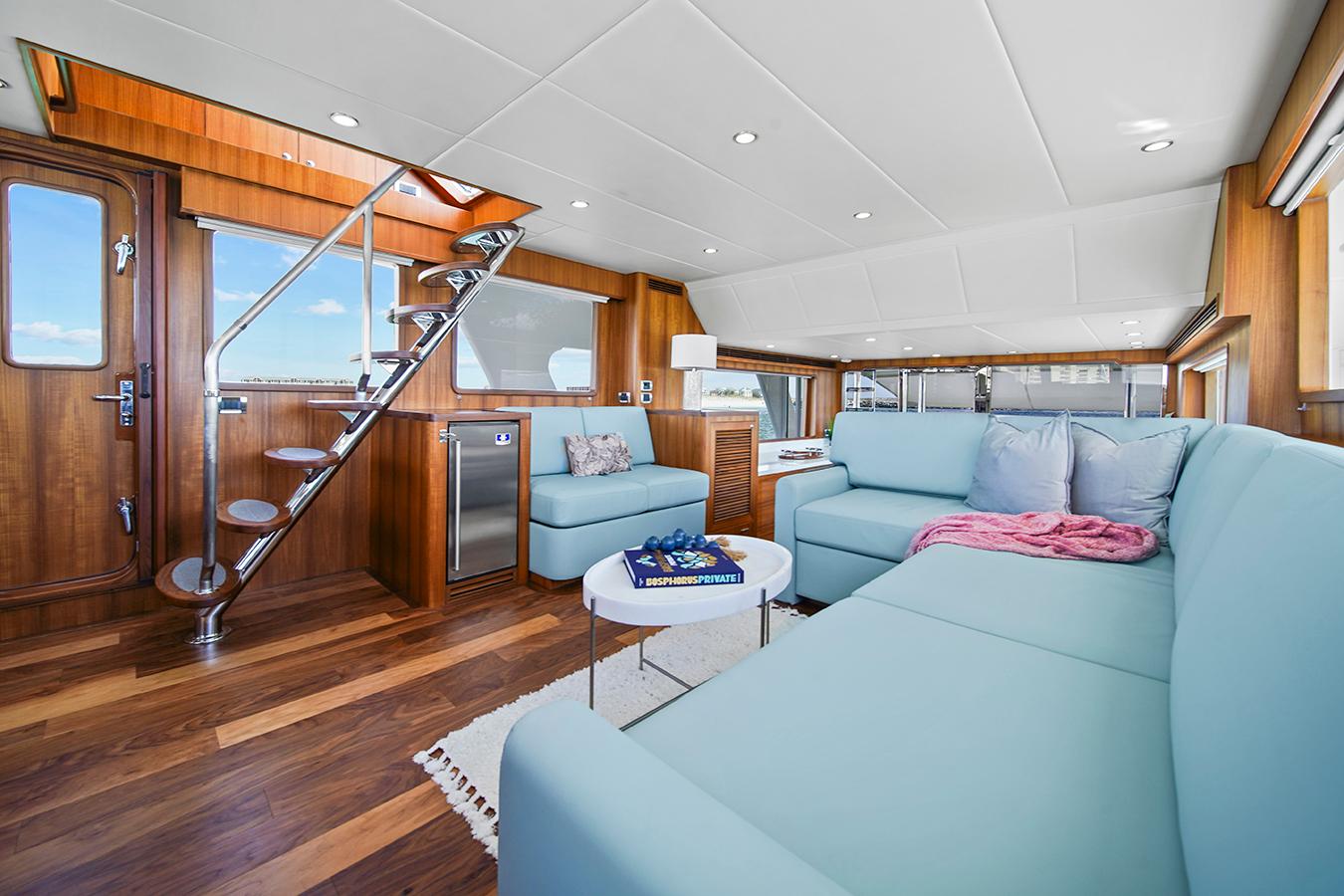

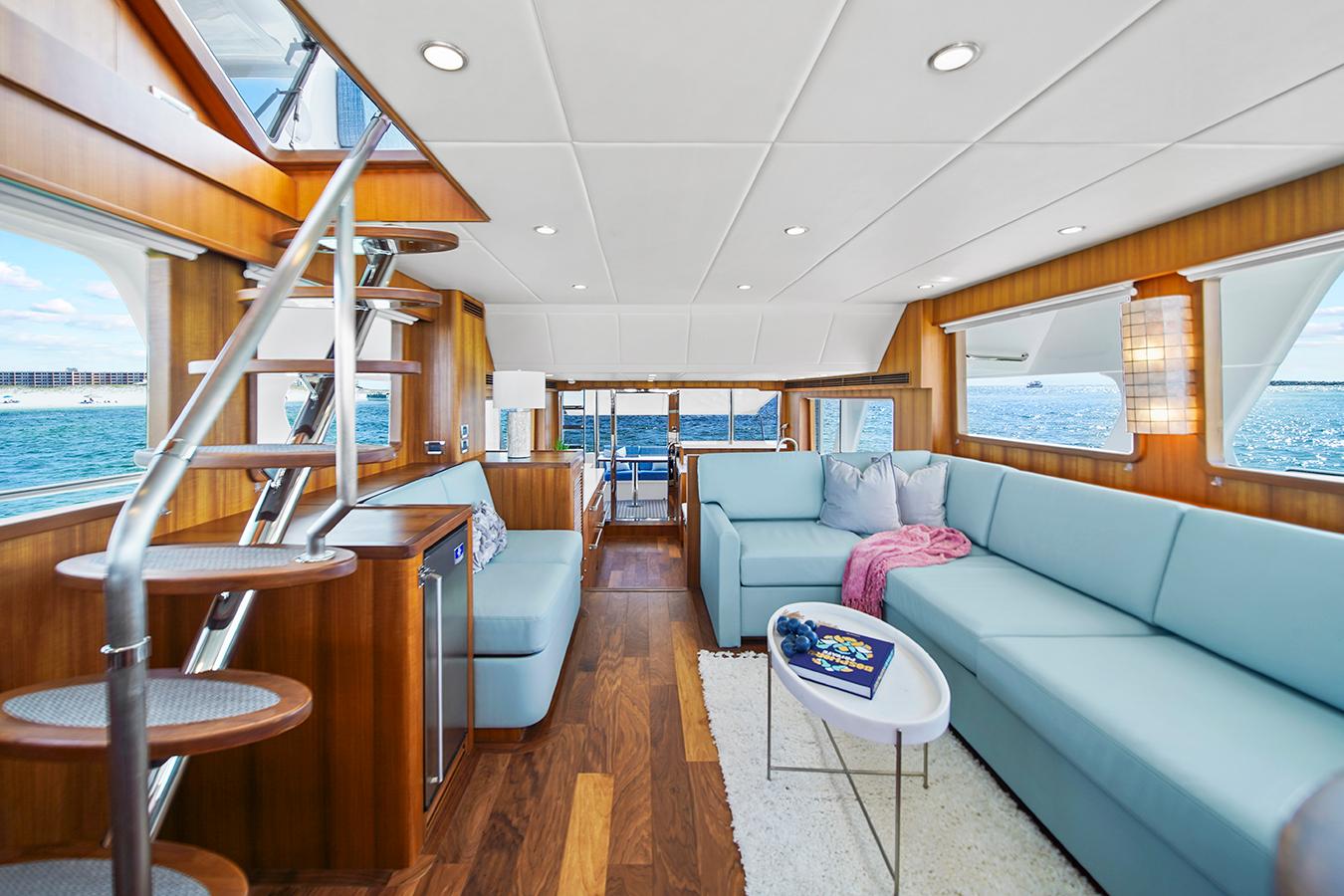

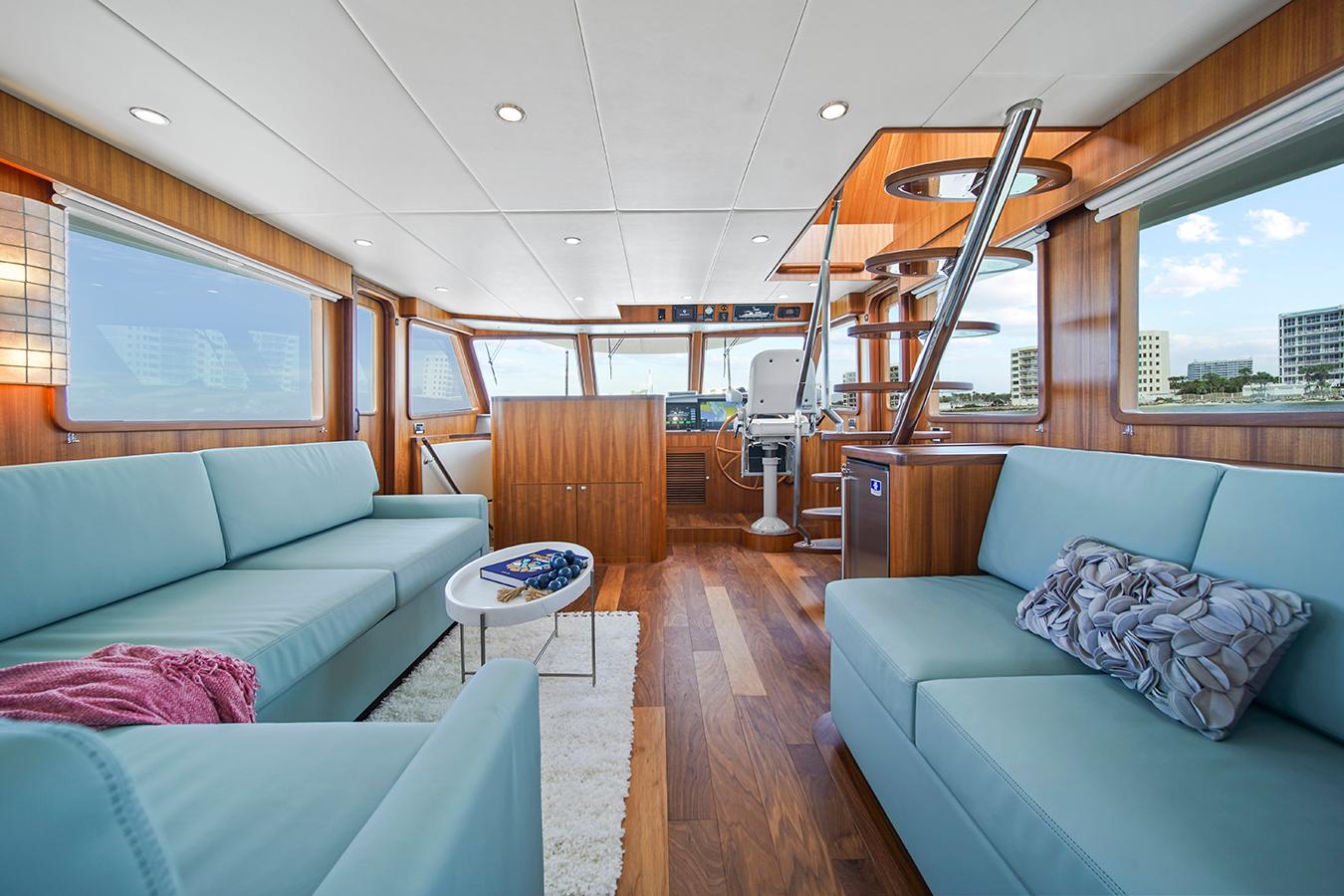

SALON

• Fixed windows in house sides with medium 3/8” tinted tempered safety glass
• Teak valance over windows with LED rope lighting
• LED overhead lights
• Vinyl headliner
• Built-in settees on the port and starboard sides
• Coffee table
• Ice maker
• Pop-up TV cabinet on the starboard side
• Air conditioning control panel
• Engineered wood floor by Armstrong
• Teak wall paneling with satin finish

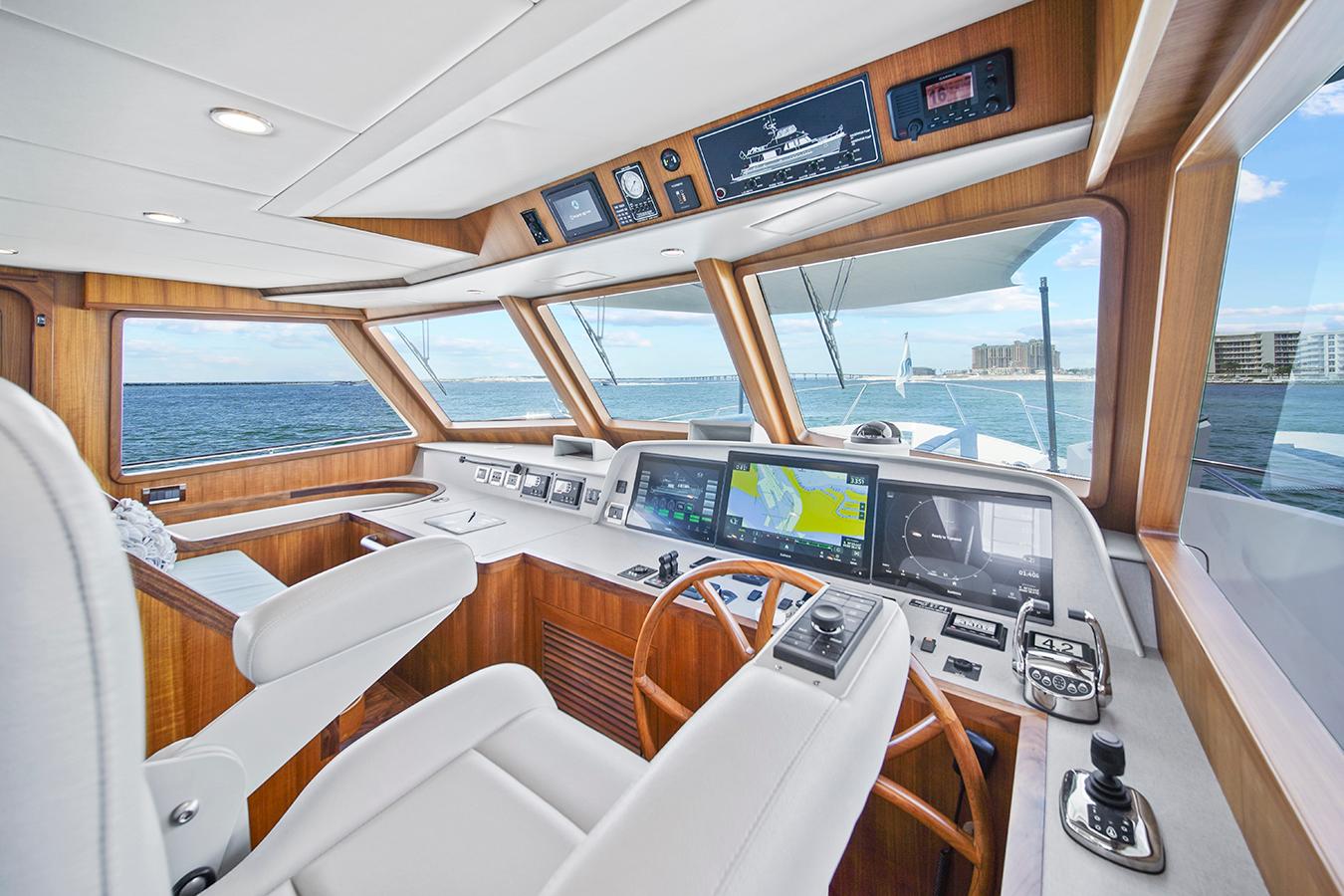

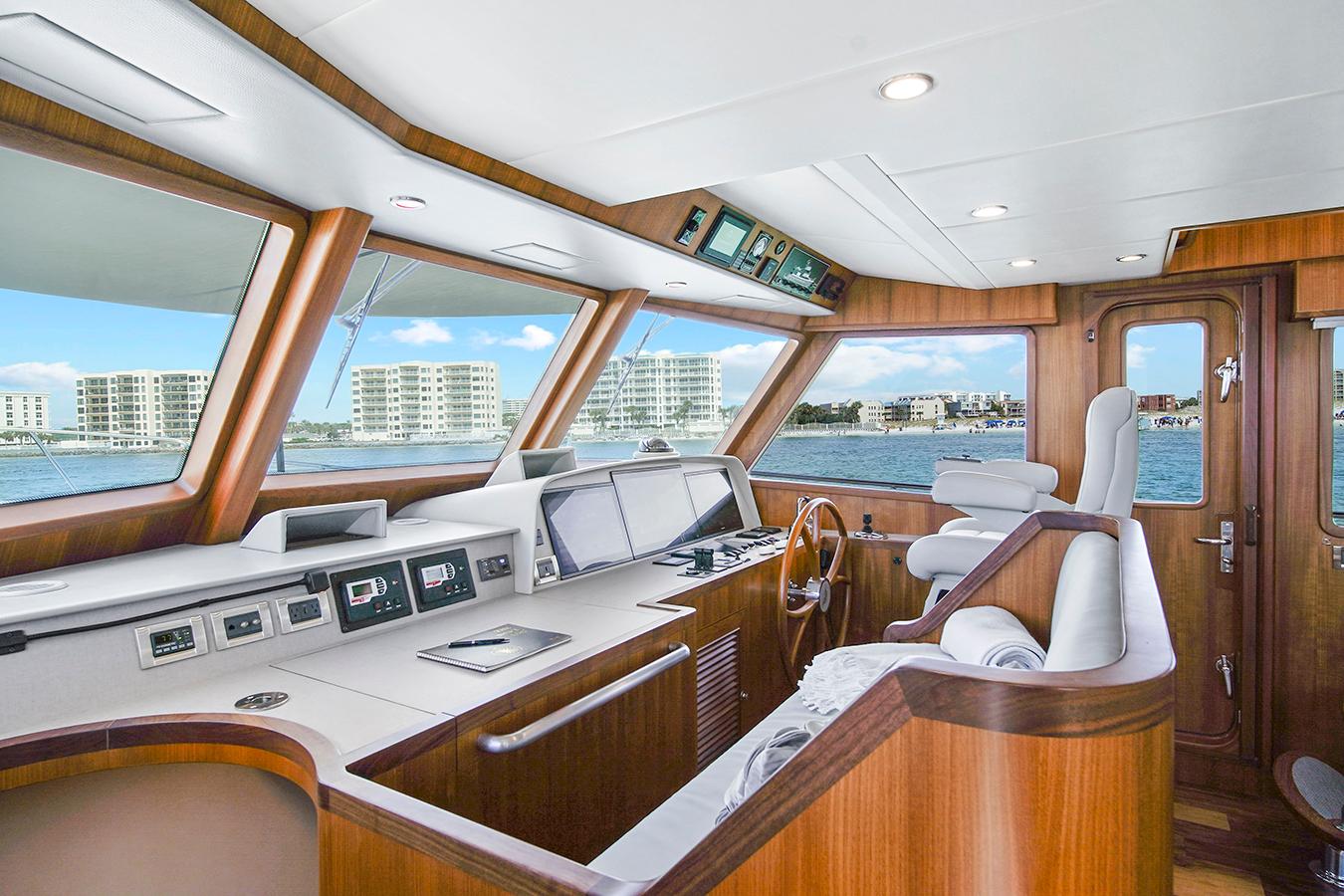

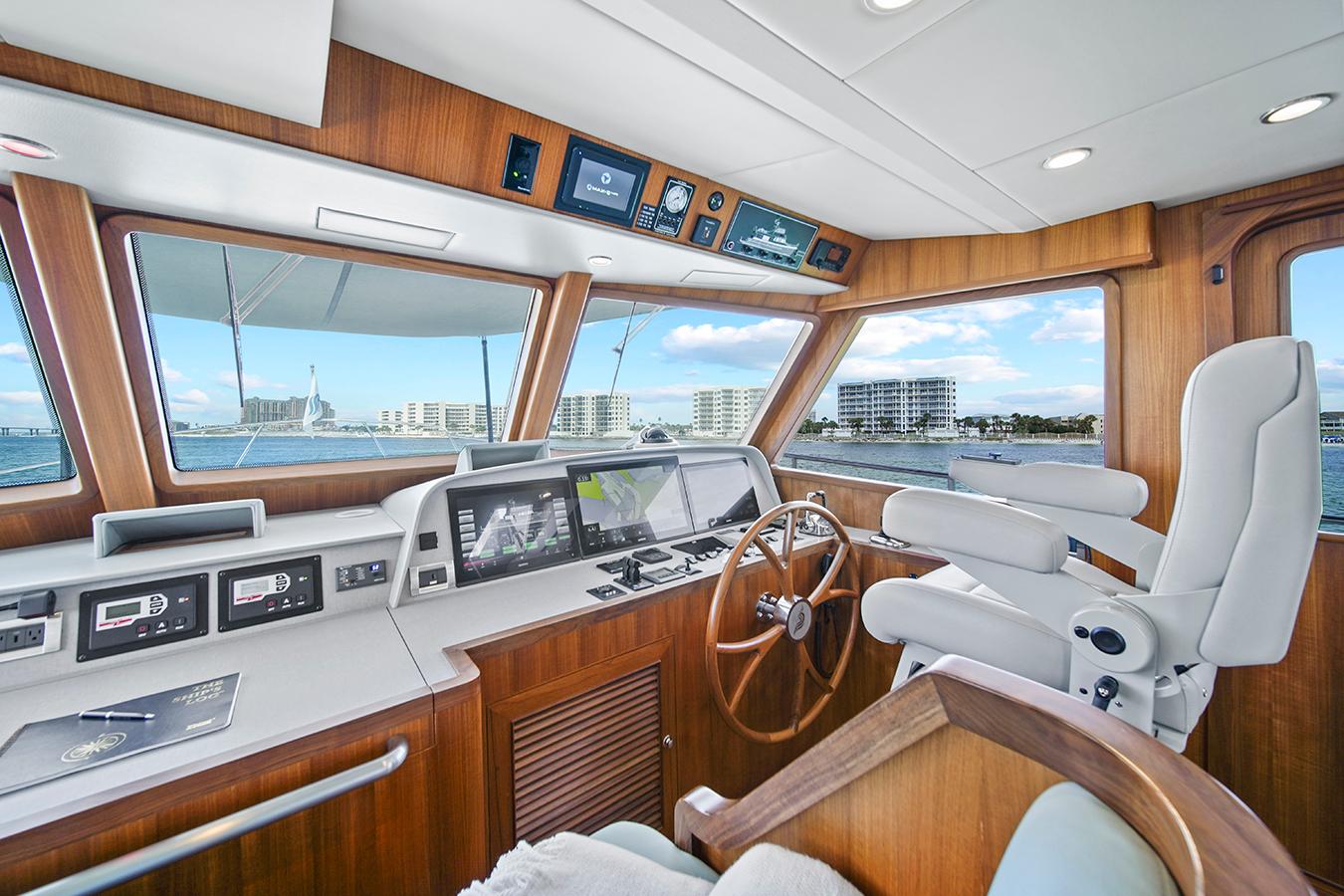

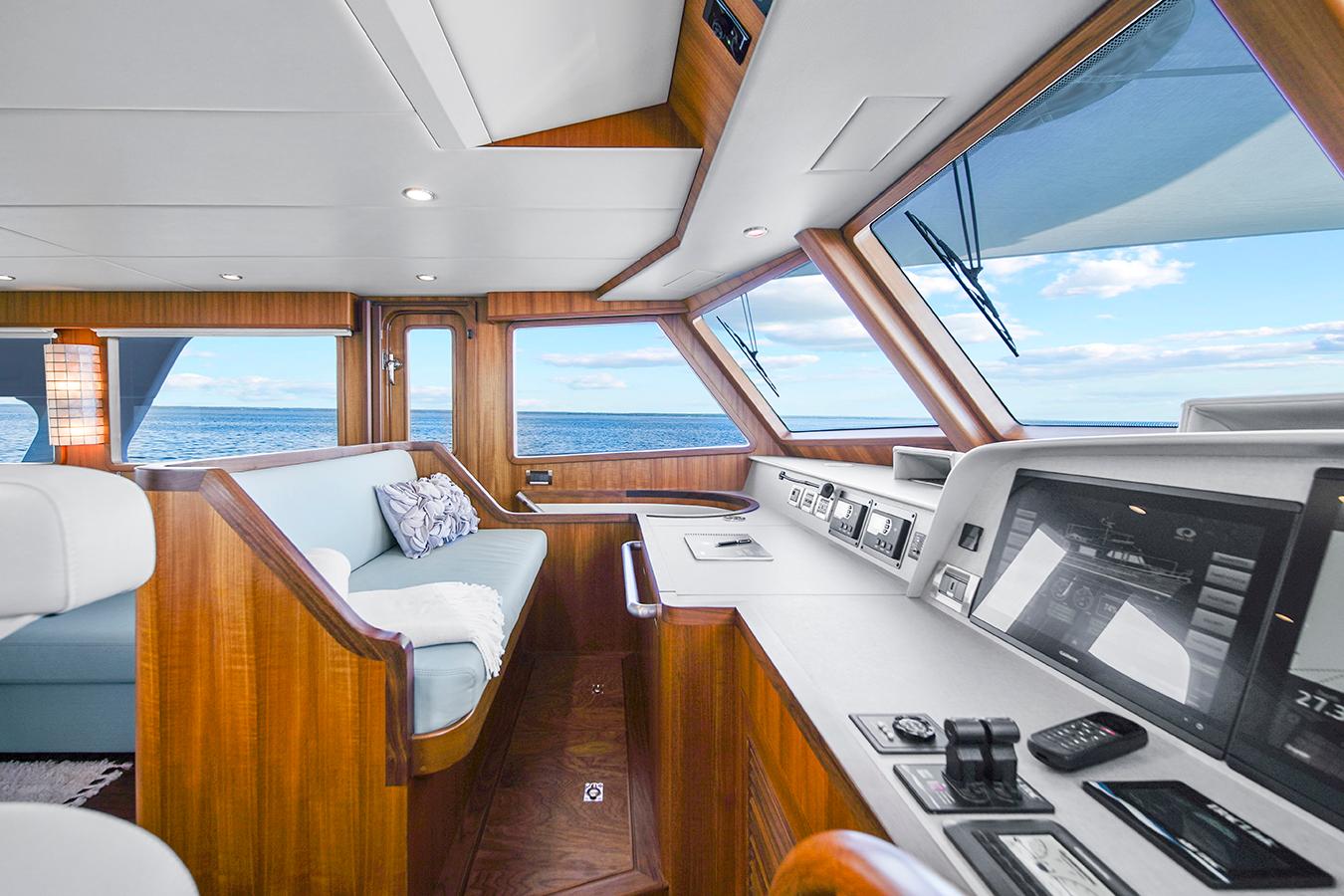

PILOTHOUSE

• Bench settee
• LED overhead lights and LED red night lights
• Chart light
• LED red and white bridge lights
• One (1) Stidd helm seat, Ultraleather with matching powder-coated base
• Custom Outer Reef wood steering wheel at pilothouse helm
• Teleflex hydraulic steering system
• Engine display screens
• Pro-Pilot Joystick controller, including Station Keeper, with display to the Glendinning engine control system
• Overhead electronics console
• Wiring routes to facilitate equipment installation
• Main electrical distribution panels with gauges and circuit breakers for AC and DC
• Alarm and advisory panel
• Transom doors on AC, DC and advisory panels
• Glendinning engine controls
• 4” magnetic compass
• ½”Clear tempered glass in forward facing windshields
• Vinyl headliner
• Control for bow thruster
• AC system remote monitor panel
• Air conditioning control panel
• Generator digital control panel
• 24v DC to 12v DC converter
• Windlass up/down switch and control circuit breaker
• Bilge pump control on advisory panel
• Equipment running advisory panel
• Teak wall paneling with satin finish
• Teak stairs with Bolon inlay to flybridge to starboard
• Weathertight doors opening out to port and starboard
• Curved teak stairway with Bolon inlay leading to accommodations
• Phantom screens for port and starboard doors
• Engineered wood floor by Armstrong

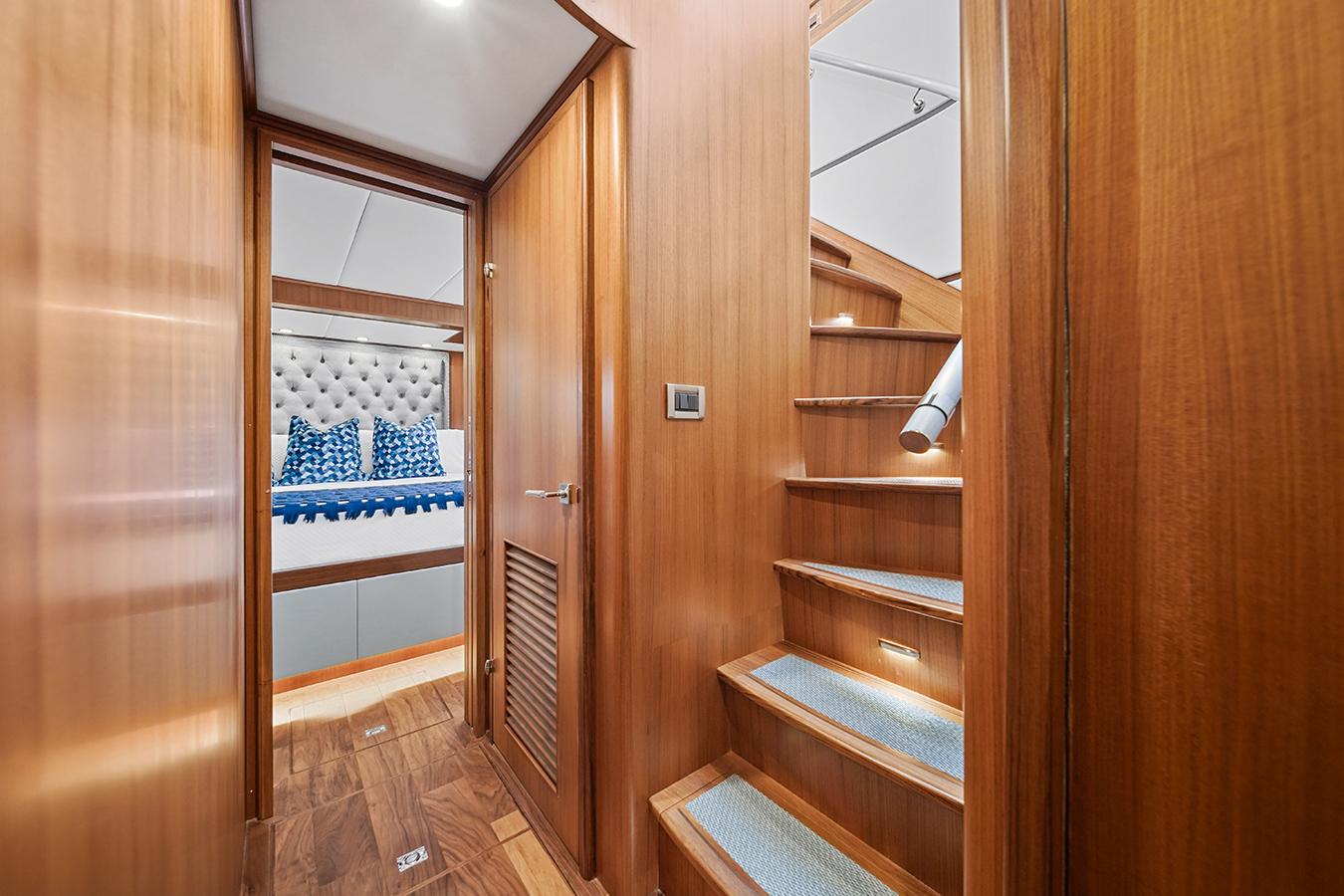

LOWER HALLWAY

• LED overhead lights
• Combination of wall covering and teak wall paneling in stairwell
• Teak wall paneling in hallway
• Stackable washer and dryer
• Storage under first two steps of the stairwell below
• Access doors to staterooms
• Engineered wood floor by Armstrong

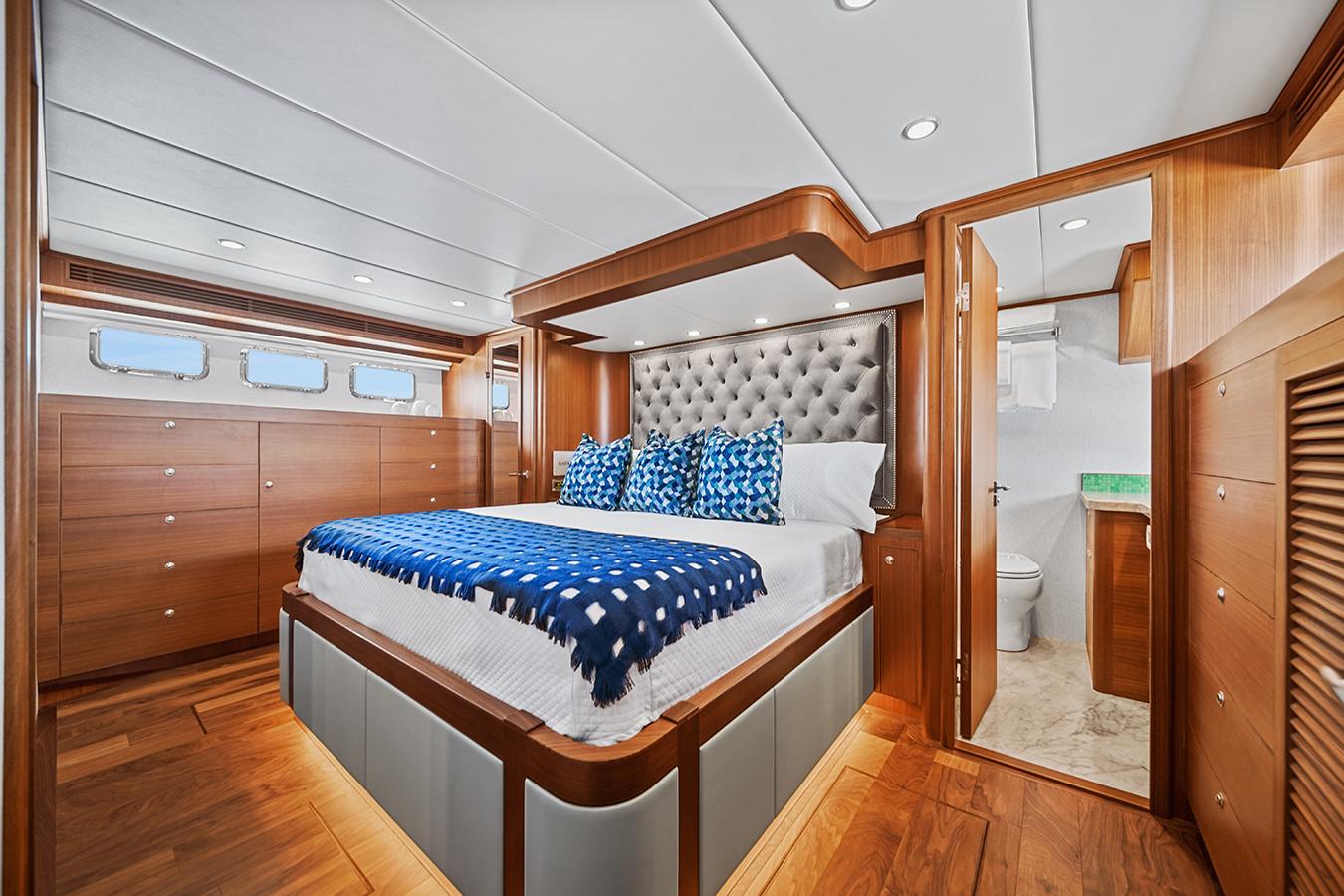

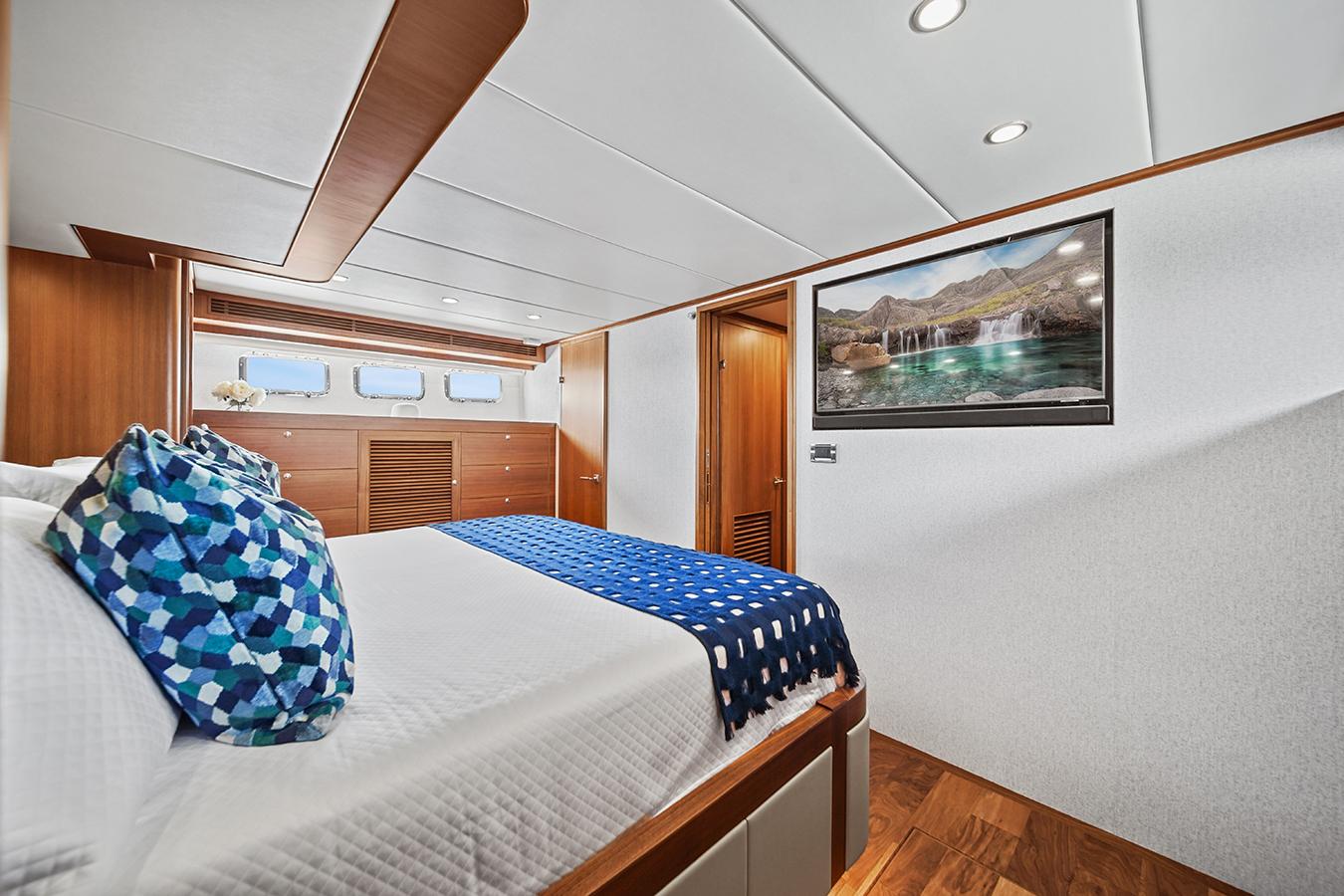

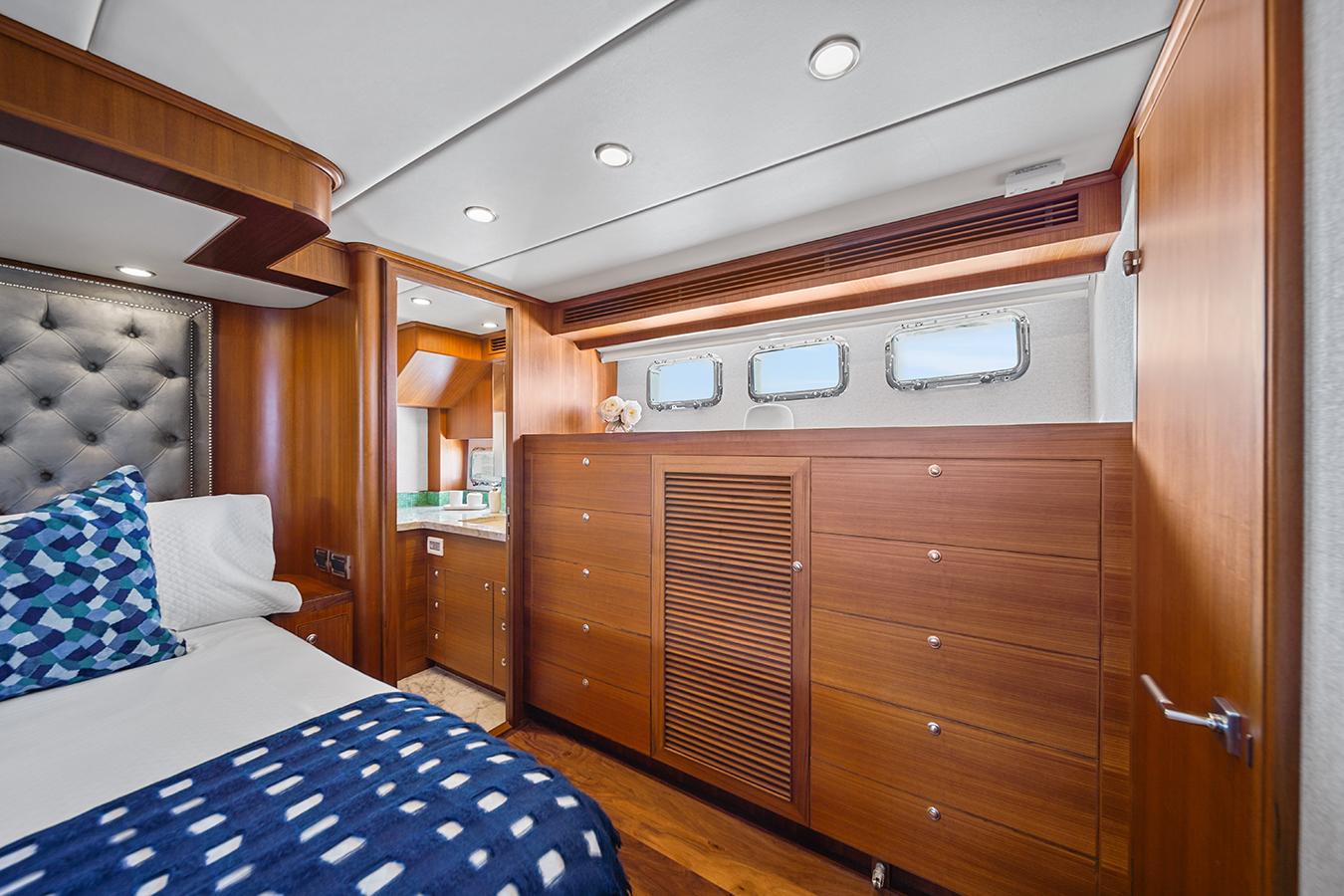

FULL BEAM MIDSHIP MASTER SUITE

• King size berth with drawer storage under the berth
• Custom-made tufted headboard
• LED rope lighting under the bed and at valance
• Cedar-lined hanging locker with access to stabilizer gear
• Walk-in closet
• Built in cabinets
• Teak wall paneling with satin finish
• Six (6) CE-approved portlights with removable insect screen
• LED overhead lights
• Air conditioning control panel
• Nightstand teak tables
• Engineered wood floor by Armstrong

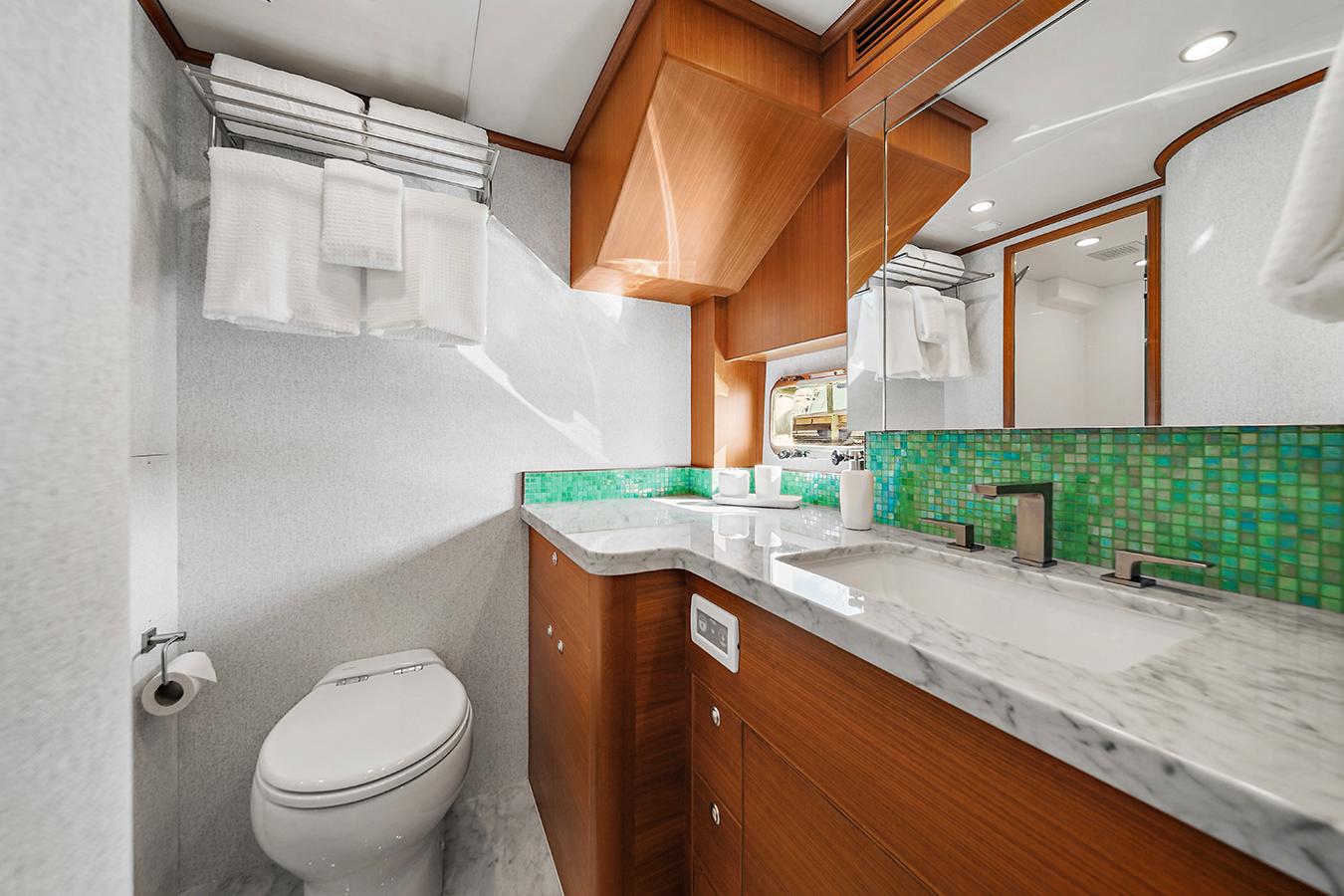

MASTER HEAD (ENSUITE)

• CE-approved portlight with removable insect screen in shower
• Clear tempered glass shower door with towel bar
• Molded white FRP shower with overhead rain shower and hand held
• Shower floor and counter backsplash by SICIS
• Ventilator fan in shower
• White Carrara marble countertop with white under-mount sink
• Center-set single lever faucet at sink
• Frameless medicine chest
• Wallcovering
• Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
• 24v DC ventilator blower
• LED overhead lights
• Honed marble floor

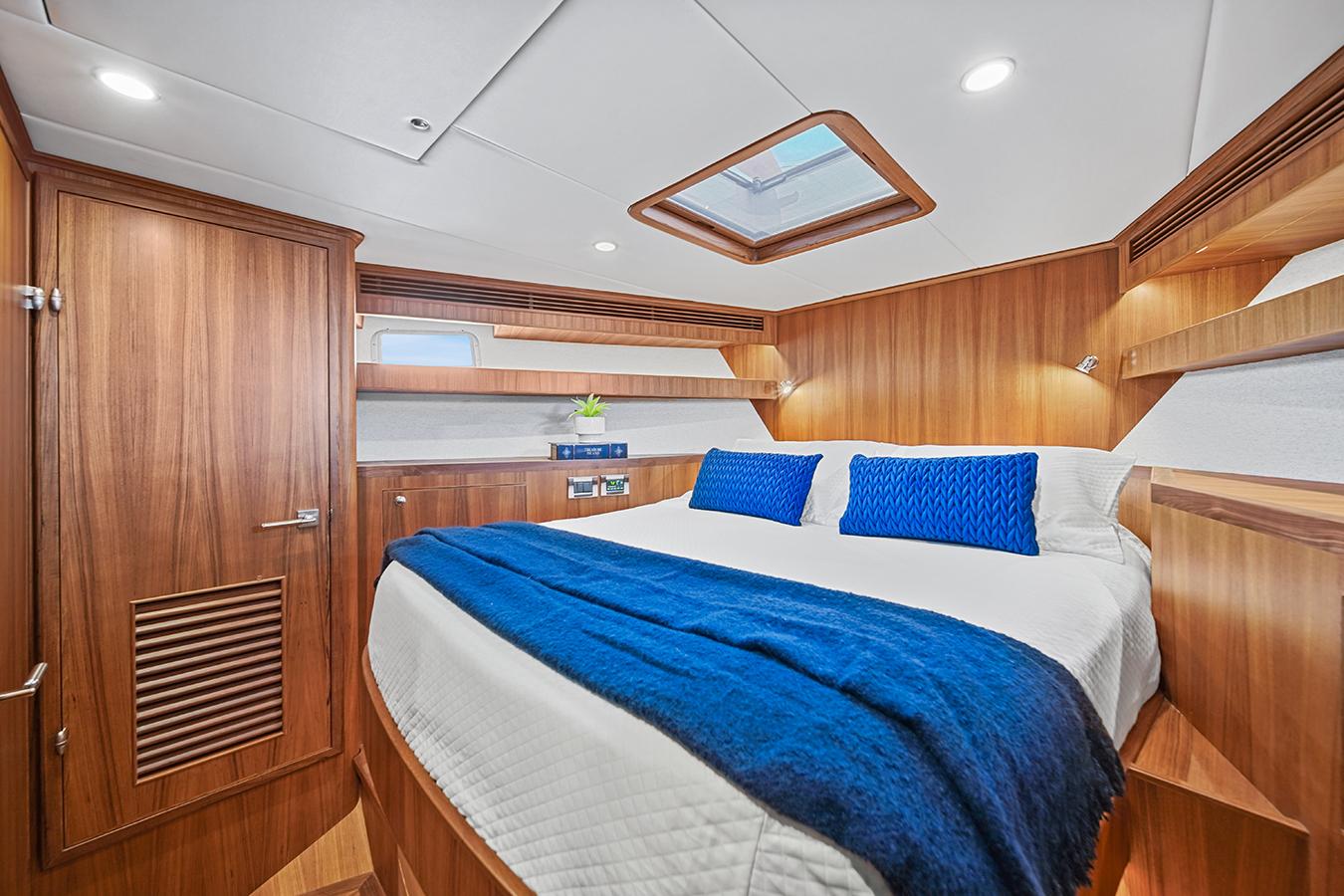

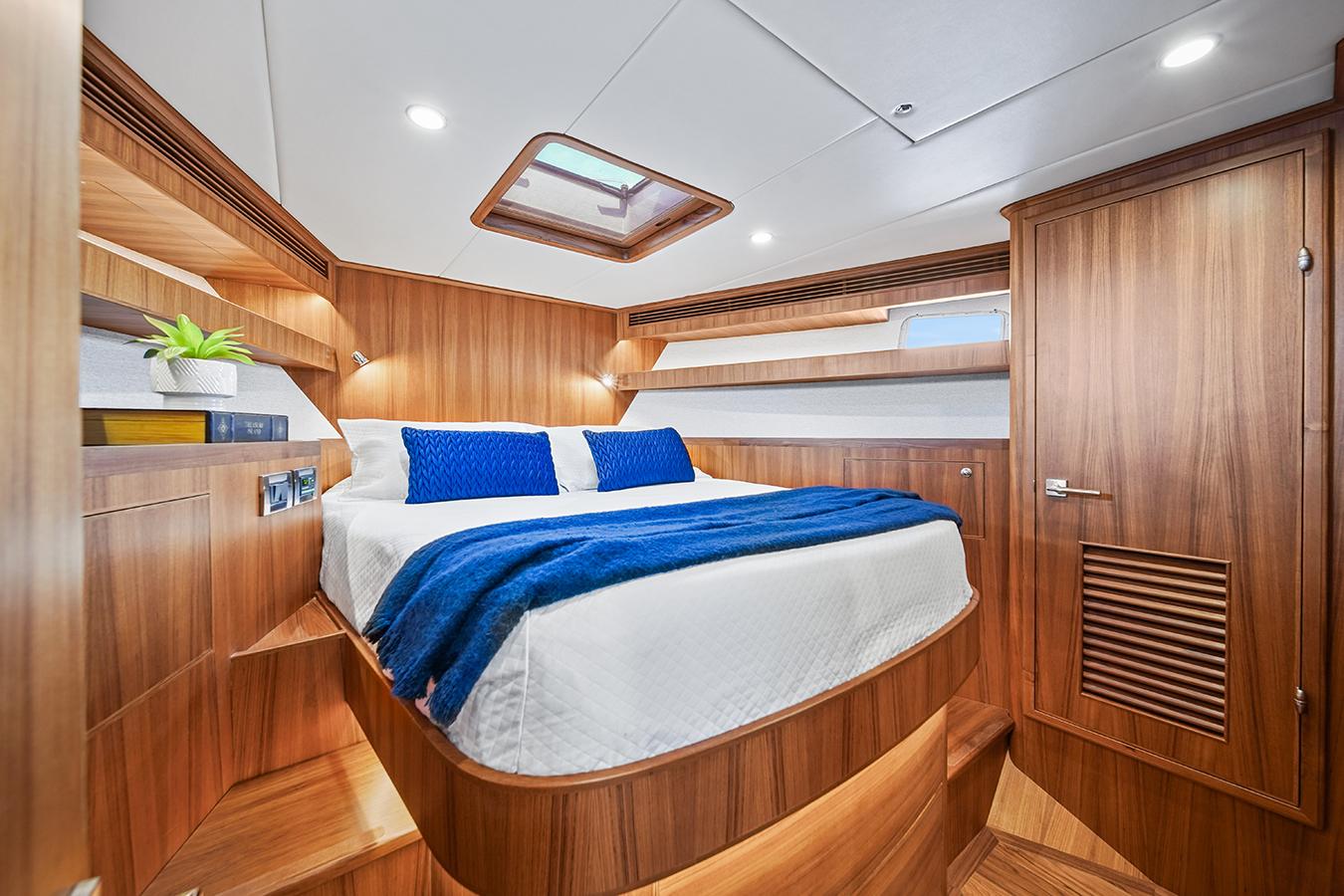

VIP STATEROOM FORWARD

• 316 Stainless steel CE-approved skylight
• Two (2) CE-approved portlights with removable insect screen
• Tapered queen-size lifting berth with teak storage drawers under
• Two steps on each side of the berth for easy access
• Bookshelves on hull sides
• TV dropdown on ceiling
• LED rope lighting at valance
• Two (2) cedar-lined hanging lockers
• Teak wall paneling with satin finish
• LED overhead lights
• Reading lights
• Air conditioning control panel
• Engineered wood floor by Armstrong

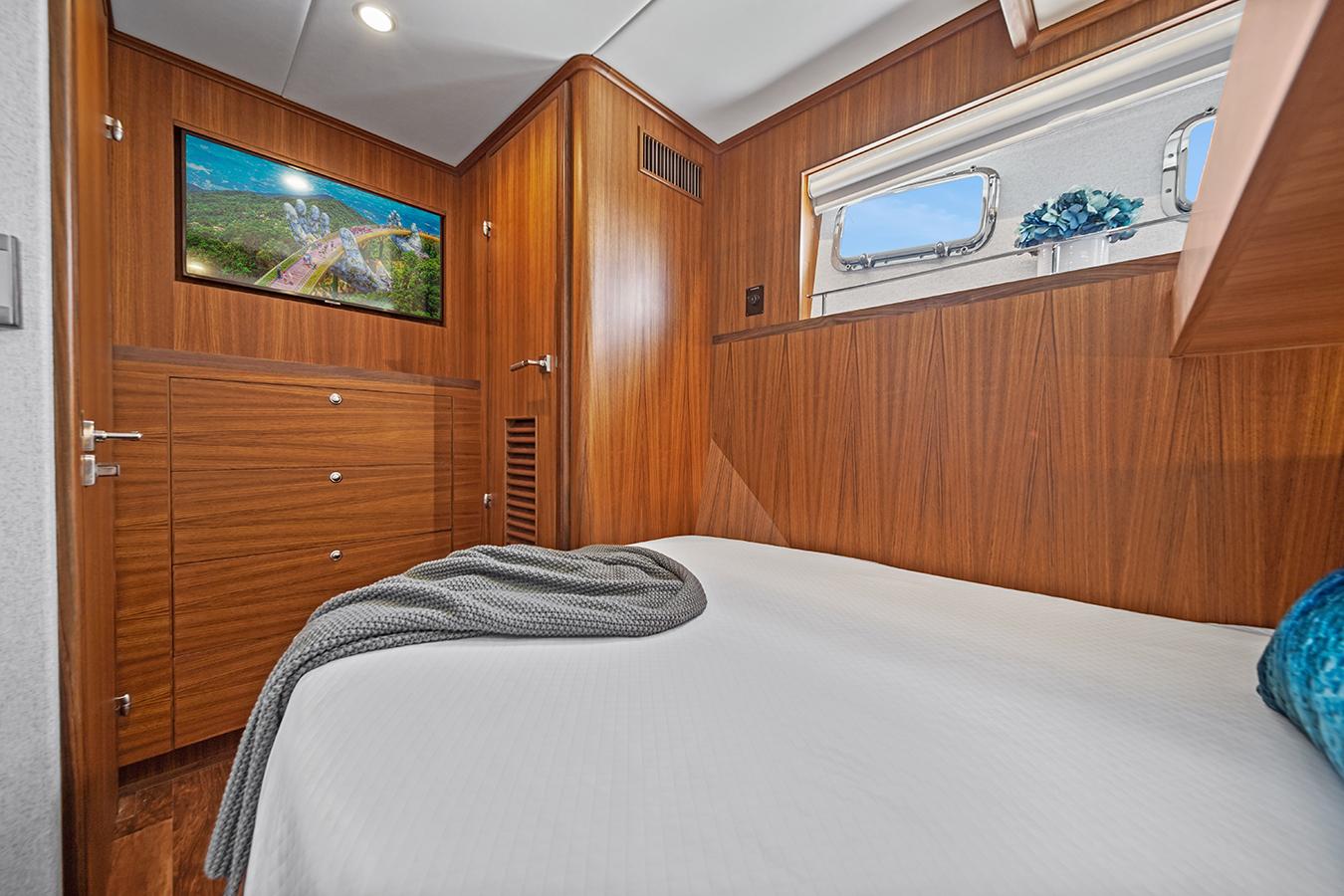

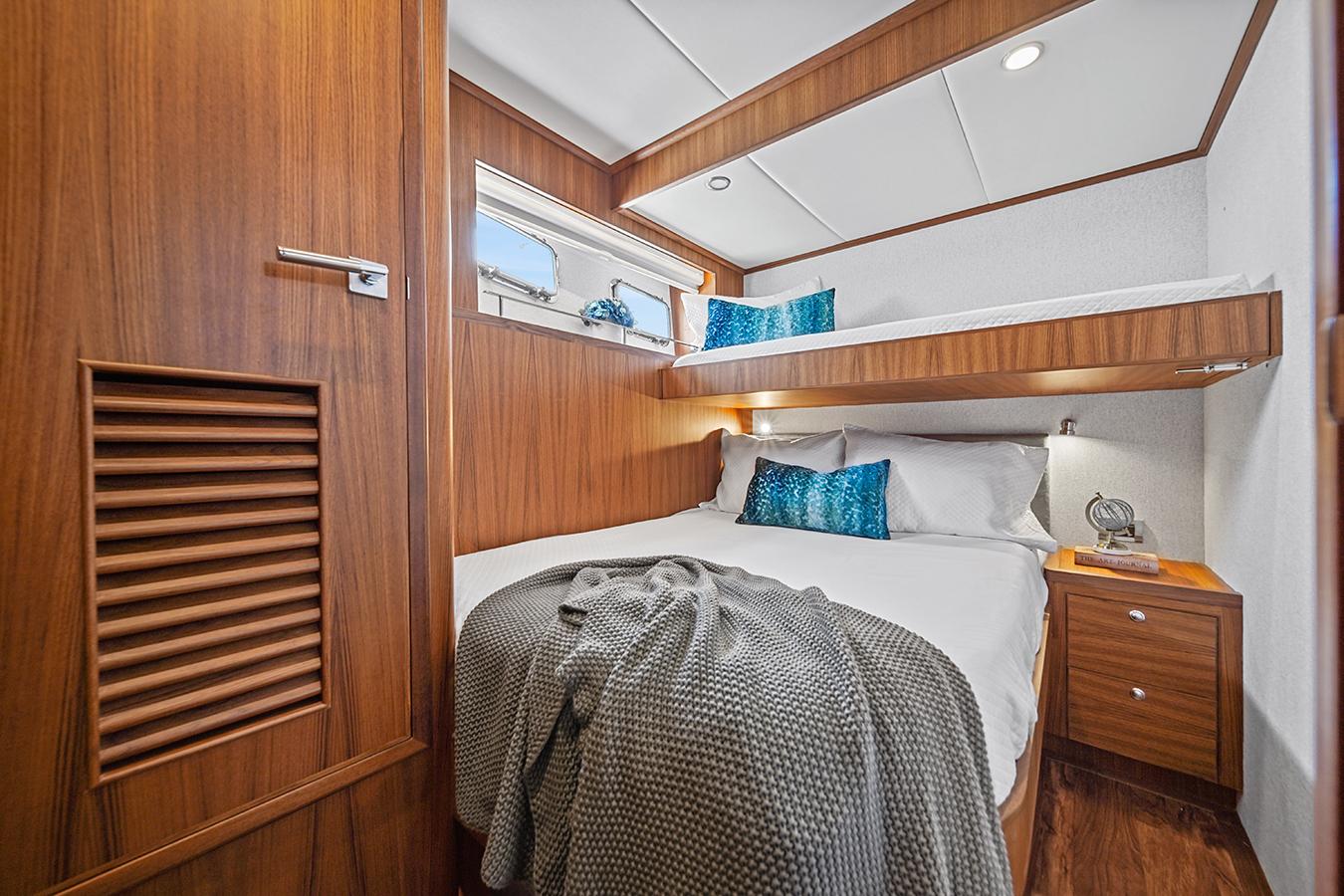

GUEST STATEROOM STARBOARD

• Two (2) CE-approved portlights with removable insect screen
• Queen bottom berth with storage drawer and pullman berth above
• LED rope lighting at valance
• Cedar-lined hanging locker
• Teak wall paneling with satin finish
• LED overhead lights
• Air conditioning control panel
• Reading lights
• Engineered wood floor by Armstrong

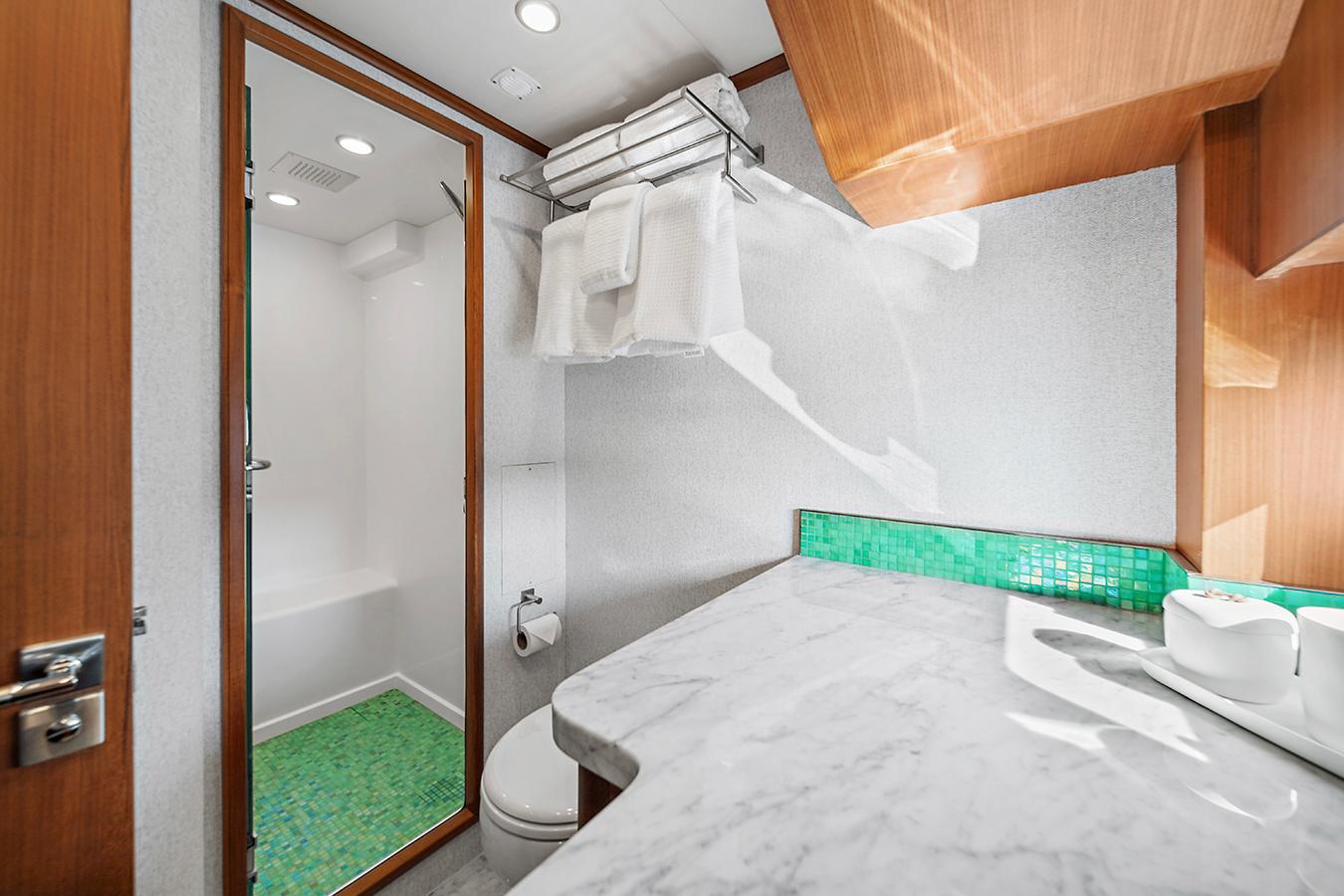

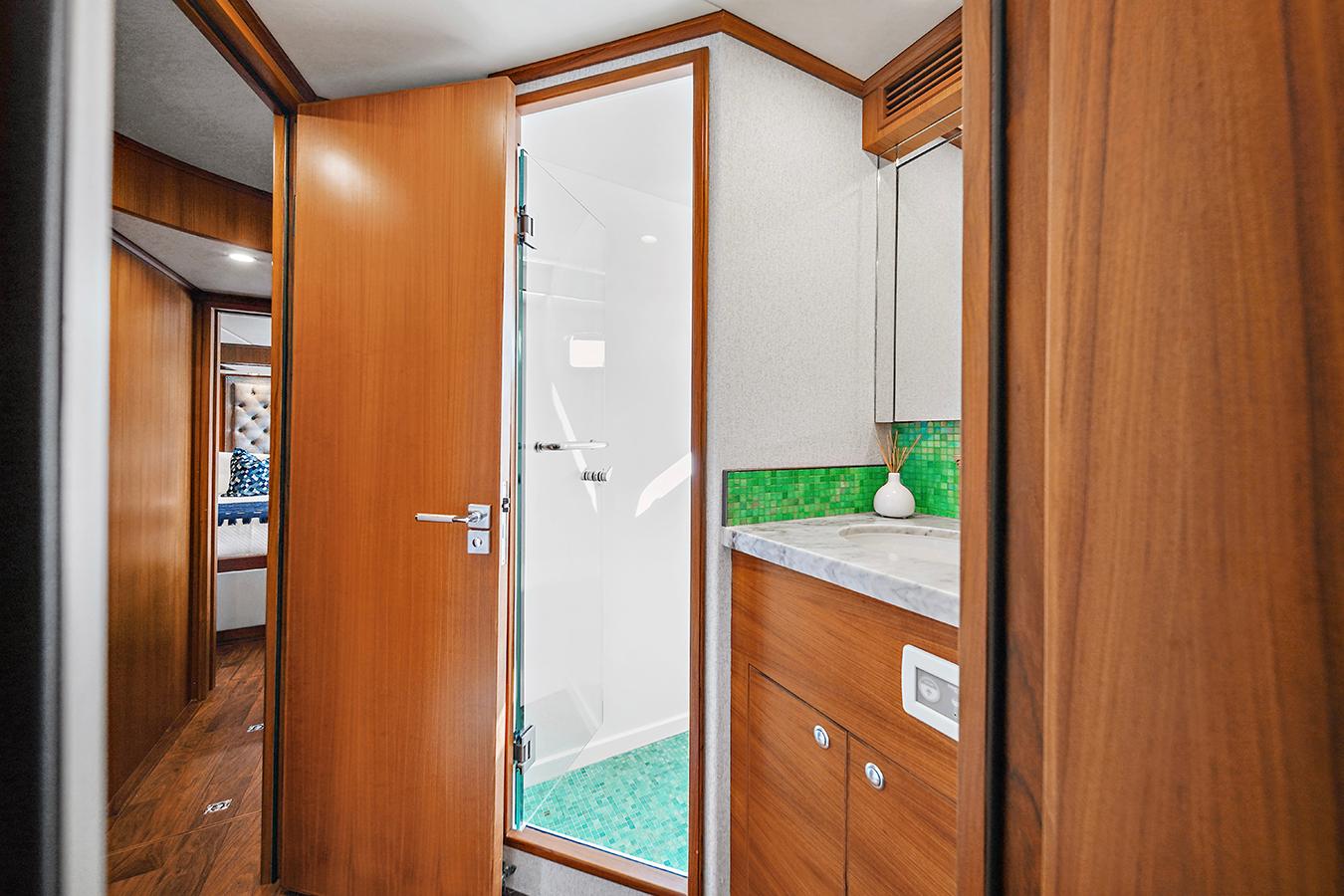

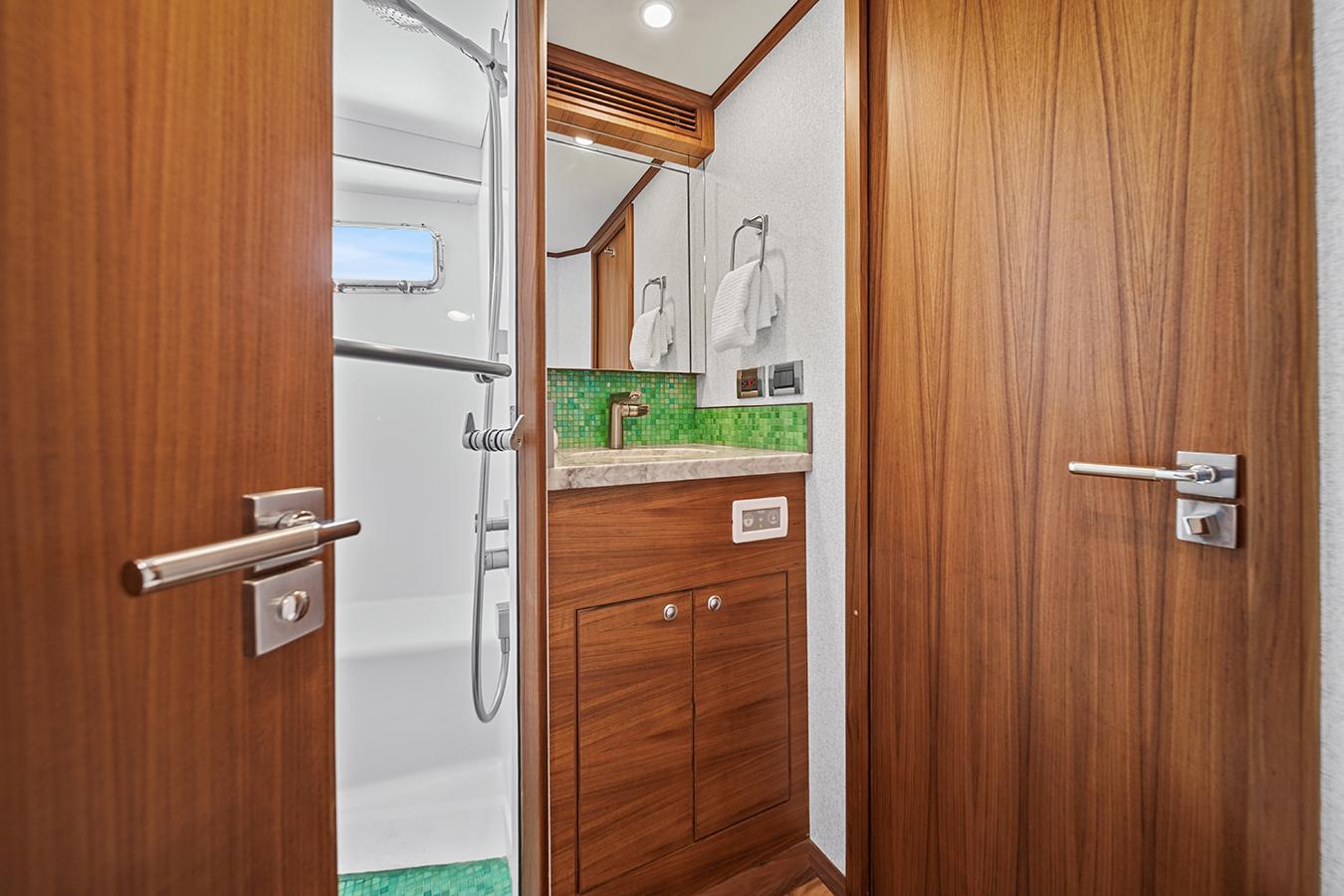

GUEST HEAD

• Head with shower with access doors from the VIP stateroom and lower hallway
• CE-approved portlight with removable insect screen
• Clear glass shower door with towel bar
• Molded white FRP shower
• Shower floor and counter backsplash by SICIS
• 24v DC ventilator blower
• White Carrara countertop with white under-mount sink
• Chrome Grohe center-set single lever faucet at sink
• Frameless medicine chest
• Wallcovering
• Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
• LED overhead lights
• Engineered wood floor by Armstrong

STANDARD MARETRON PACKAGE

• Engine - generator integration onto the Garmin screens
• AC/DC power monitoring
• Alarm
• Tank level monitoring
• Wi-Fi interface
• Engine exhaust, transmission and SeaTorque shaft temperature monitoring
• 8” Maretron screen in the crew area (where applicable)
• Navigation lights, bilge pump monitors
• All monitors projected onto the Garmin screens

NAVIGATION AND ELECTRONICS

FLYBRIDGE HELM

• 2x Garmin GPSMAP 8617, U.S and Canada G2 + LakeVu HD
• 2x Garmin GMI 20 Digital Marine Instrument Displays
• Garmin GHC™ 20 Marine Autopilot Control Unit
• Garmin Reactor™ Autopilot Remote Control
• Garmin USB Card Reader
• Garmin VHF 215 Marine Radio
• Garmin AIS™ 800 Class B Transceiver

PILOTHOUSE HELM

• Garmin GPSMAP 8622, U.S and Canada G2 + LakeVu HD
• 2x Garmin GPSMAP 8617, U.S and Canada G2 + LakeVu HD
• Garmin GMI 20 Digital Marine Instrument Display
• Garmin GHC™ 20 Marine Autopilot Control Unit
• Garmin Reactor™ Autopilot Remote Control
• Garmin USB Card Reader
• GRID™ 20 – Garmin Remote Input Device
• Garmin VHF 215 Marine Radio

MASTER STATEROOM

• Garmin GPSMAP® 943

AFT DECK

• Garmin GMI 20

ROOF AND RADAR ARCH

• GMR™ 2526 xHD2 Open Array Radar and Pedestal (25kw/6-foot/96nm)
• Hailer Horn, 5" x 8" 15 Watt
• GXM™ 54 SiriusXM® Marine receiver

AUTOPILOT

• Garmin GHP Reactor, Hydraulic w/Smartpump V2 Corepack, With GHC™ 20
• GRF 10 Rudder Feedback Sensor

SOUNDER AND TRANSDUCER

• GSD™ 25 Premium Sonar Module
• AIRMAR 1kW B260, bronze, thru-hull, fairing, Depth/Temp
• Garmin GT51M-THP – Stainless Steel Thru-Hull Pair DownVü/SideVü
• Garmin Panoptix™ PS51-TH FrontVü 2D Forward-looking Sonar

CCTV CAMERA SYSTEM

• Garmin GC 200 Marine IP camera in Engine Room, Aft deck and Boat deck

HUMPHREE SYSTEM

• c/w Necessary Accessories (One station)
• Interceptor H1000*2

AUDIO VISUAL

SATELLITE TV

• TracVision UHD7

TVs AND SURROUND SOUND SYSTEM

• TVs in Salon, Master, VIP and Guest staterooms, and portable TVs
• Apple TV accessories in salon
• DIRECTV H25 HD receiver boxes for all TVs

FLYBRIDGE AND BOAT DECK

• FUSION Apollo RA770 Marine Stereo
• FUSION MS-ERX-400 True Marine Remote Control

AFT DECK AND COCKPIT

• FUSION MS-RA60 Marine Stereo
• FUSION MS-ERX-400 True Marine Remote Control

FORE DECK

• FUSION MS-RA60 Marine Stereo

MISC

• Ship-to-Shore TV socket
• Fusion speakers throughout
• Marine Broadband Router
• WiFi Extender
• Shakespeare Super Halo Cell Booster
• PepWave Max Transit Duo Cellular Router

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
